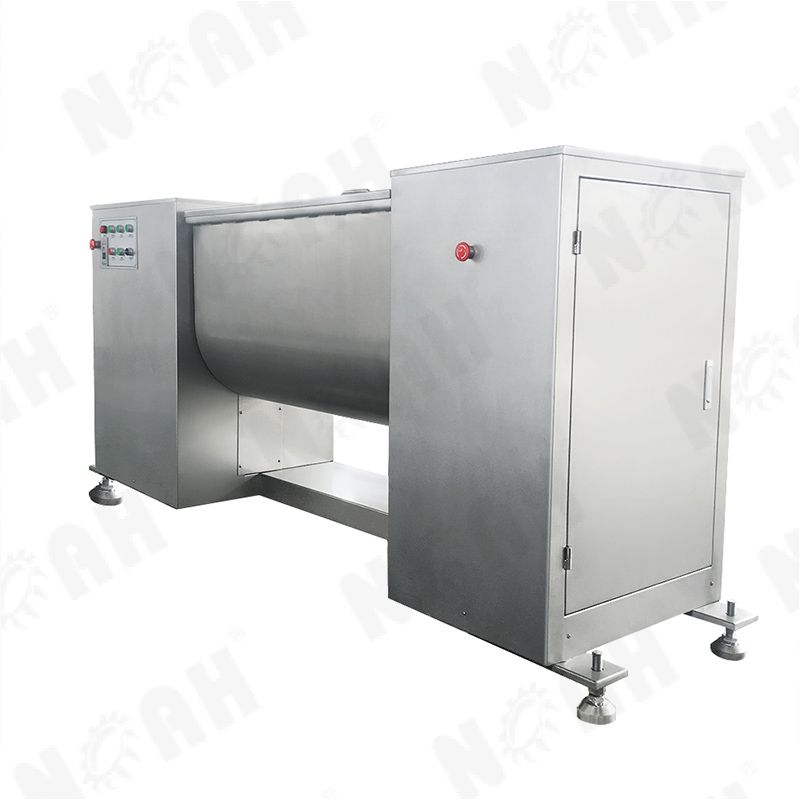

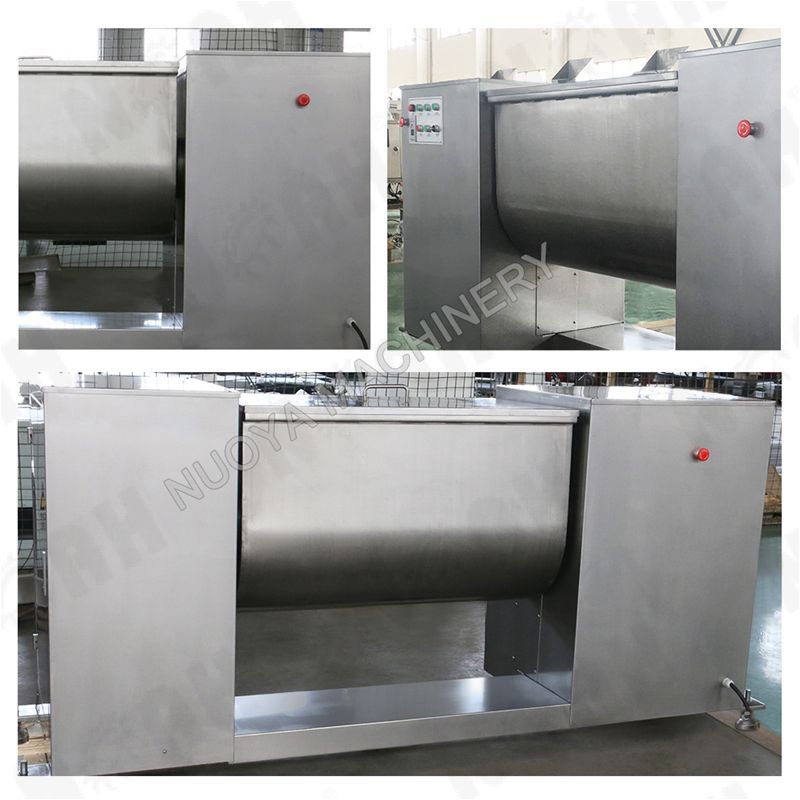

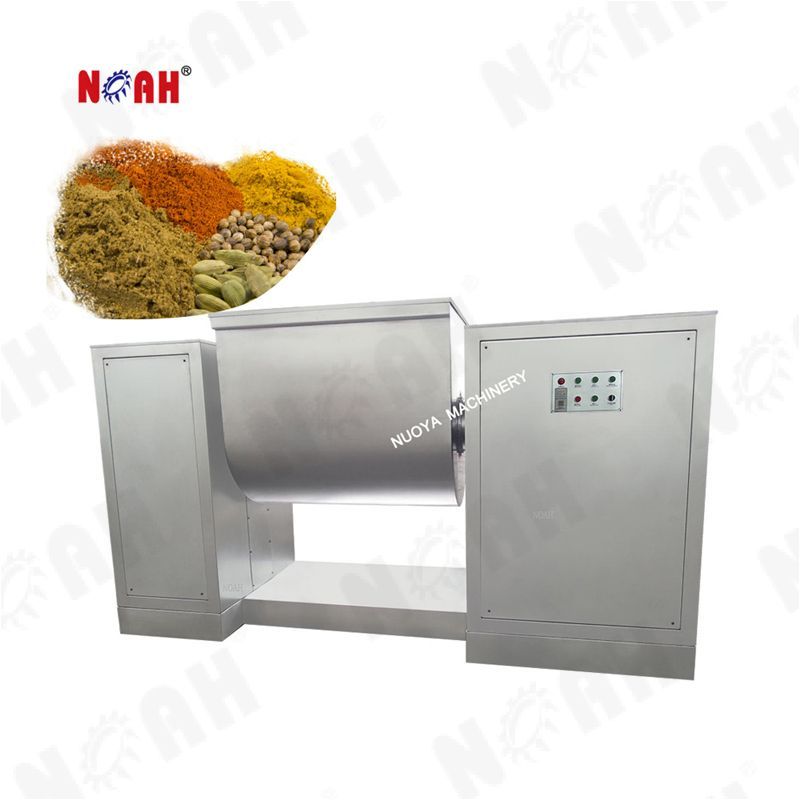

Liquid Powder Horizontal Mixer | Pharmaceutical Mixer

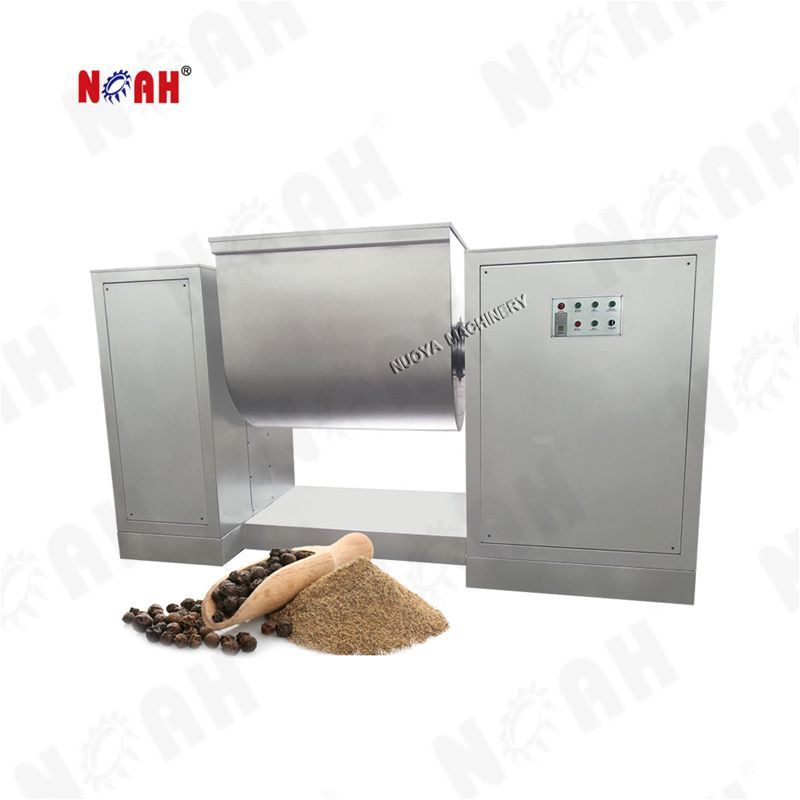

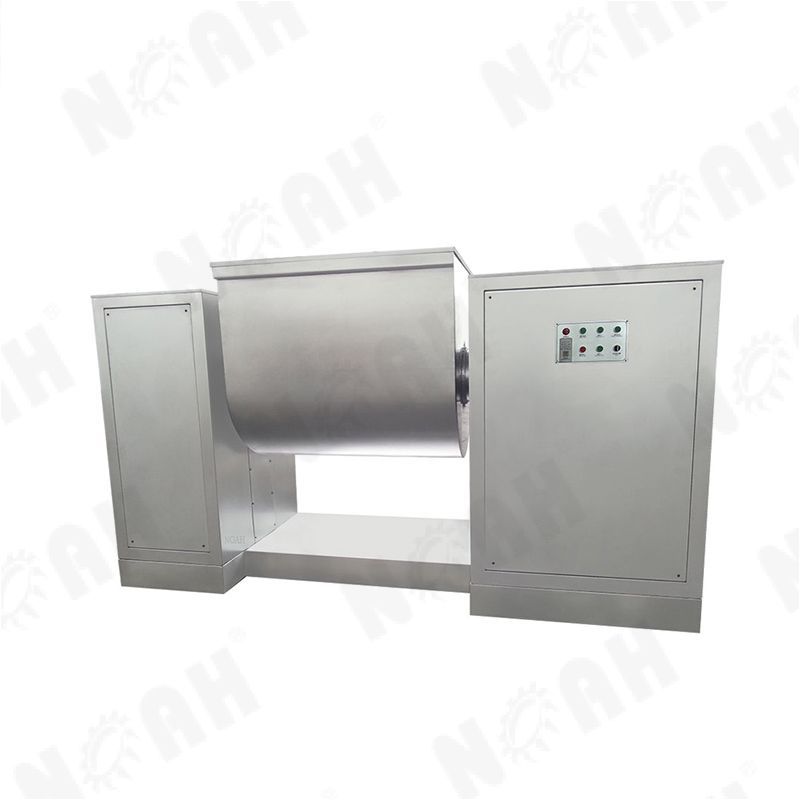

Description

Main Application:

As a whole stainless horizontal tank type mixer, this machine is widely used for mixing of powdery or paste material in pharmaceutical chemical and foodstuff industries.

Working Principle:
S type agitiating paddle is rotated, through mechanical driving, which pushes the material turn

repeatedly and mix uniformly. Operate with electrical control, it can set mixing time to realize

automatic stop and electric discharge upon expiration, thus improving the mix quality of each batch of material and realizing the high homogeneous mixing.

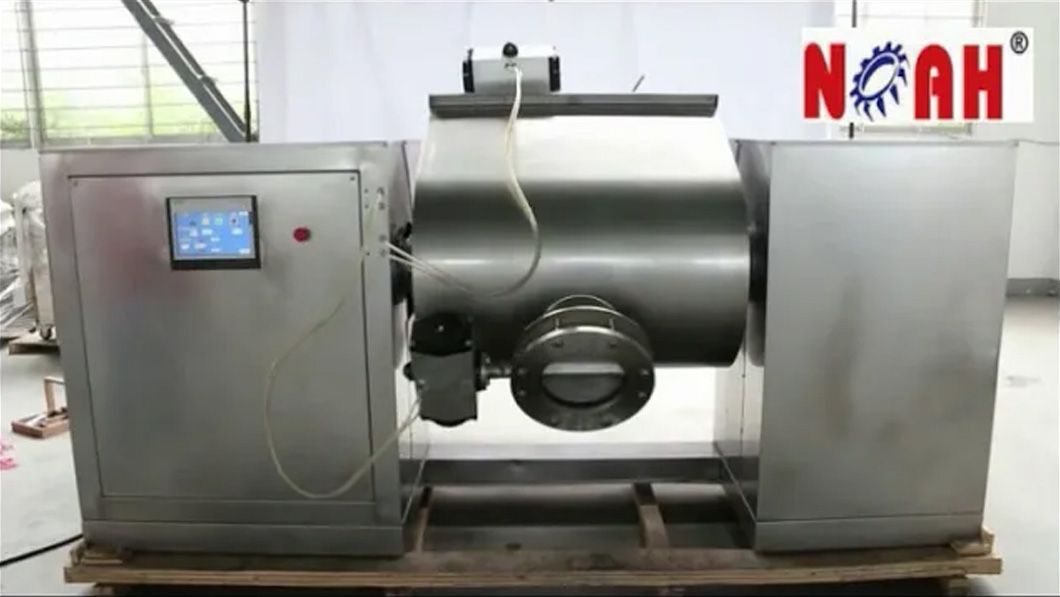

Product Video

Finished Product Display

Specifications

ITEM	TYPE
	CH10(A)	CH50(A)	CH100(A)	CH150(A)	CH200(A)
Trough capacity L	10	50	100	150	200
Miaing arm speed r/min	25	24	24	24	24
tilting angle of the trough	105	105	105	105	105
Main motor KW	0.37	1.5	2.2	3	3
tilting motor KW	by hand
overall dimension mm	550250540	12005201000	14806851125	14806851125	16606001190
weight kg	65	200	350	850	850

FAQ - Have any questions?

What is the capacity range of the CH Series Tank Type Mixer?

The capacity of the CH Series Tank Type Mixer typically ranges from 10L to 200L, accommodating varying batch sizes.

What materials can be mixed using the CH Series Tank Type Mixer?

This mixer is suitable for blending liquids, pastes, or viscous materials used in pharmaceutical, food, or chemical industries.

How efficient is the mixing process with the CH Series Tank Type Mixer?

The CH Series Mixer ensures efficient blending due to its tank-type design, promoting thorough mixing and homogeneity.

Is the mixing process uniform and consistent with the CH Series Mixer?

Yes, the tank-type design ensures uniform mixing, maintaining consistency across batches.

Can the CH Series Mixer handle high-viscosity materials during mixing?

Yes, it's designed to mix high-viscosity materials effectively, ensuring uniformity even with highly viscous substances.

What safety features are integrated into the CH Series Tank Type Mixer?

Safety features may include emergency stop buttons, safety guards, and mechanisms to prevent spillage or accidents during operation.

How is the cleaning process for the CH Series Mixer?

The machine is designed for easy cleaning and maintenance, with accessible parts and surfaces for efficient cleaning.

Can the mixing intensity or speed be adjusted or customized?

Yes, some models may allow for adjustable mixing intensity or speed based on specific material requirements.

Is the CH Series Mixer suitable for mixing materials with different viscosities?

Yes, it's designed to handle materials with varying viscosities, ensuring thorough blending irrespective of material properties.

What technical support is provided with the purchase of the CH Series Tank Type Mixer?

Comprehensive technical support, including setup guidance, training, and ongoing assistance, is typically offered to ensure optimal use of the equipment.

Investment Return Analysis: Growth Prospects for CH Series Tank Type Mixer

Market Potential:

Industry Demand: The CH Series Tank Type Mixer serves industries like pharmaceuticals, food, and chemicals, meeting the increasing demand for efficient blending of liquids, pastes, or viscous materials.

Expanding Industries: As these industries expand globally, the need for advanced mixing equipment amplifies, thereby escalating the demand for the CH Series Mixer.

Competitive Advantage:

Tank Type Design: The mixer's tank-type design ensures thorough and homogeneous blending, offering an advantage over conventional mixers.

Viscosity Handling: Its capability to efficiently handle high-viscosity materials provides a competitive edge, catering to specific industry requirements.

Technological Advancements:

Innovation Potential: Potential technological upgrades could further improve its efficiency and adaptability, ensuring continued competitiveness.

R&D Investment: Continued research and development efforts may lead to improved functionalities, meeting evolving industry needs.

Cost Efficiency:

Operational Savings: Efficient mixing reduces production time and material wastage, contributing to cost savings and enhanced productivity.

Resource Optimization: Its ability to handle various materials optimizes resource utilization, aligning with sustainable manufacturing practices.

Conclusion:

Investing in the CH Series Tank Type Mixer offers promising returns aligned with the increasing demand for efficient and versatile liquid blending solutions across multiple industries. Its competitive advantages in efficiency, viscosity handling, and potential technological advancements position it favorably for substantial market uptake.
