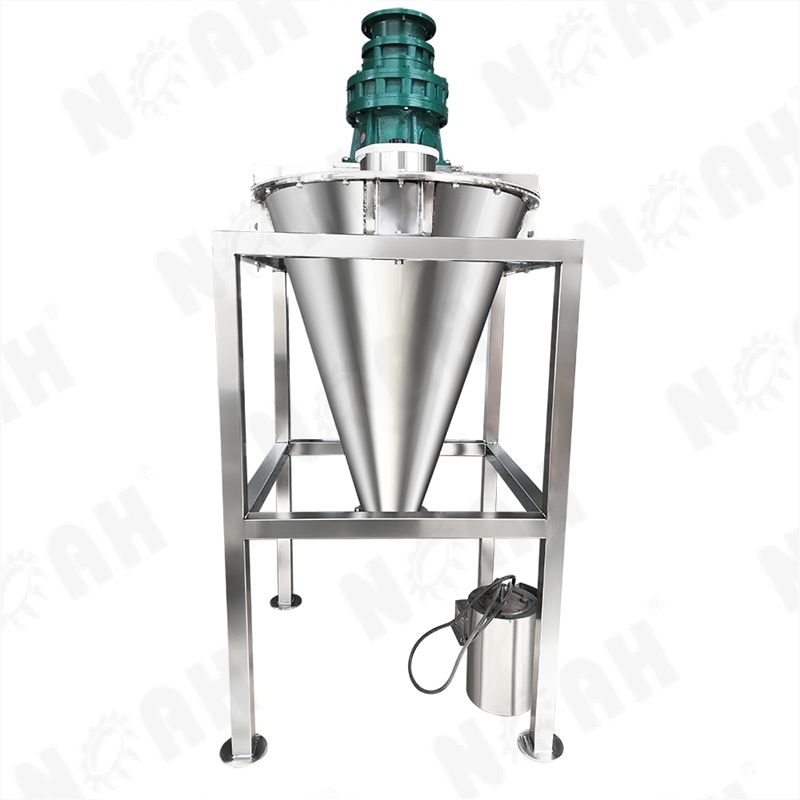

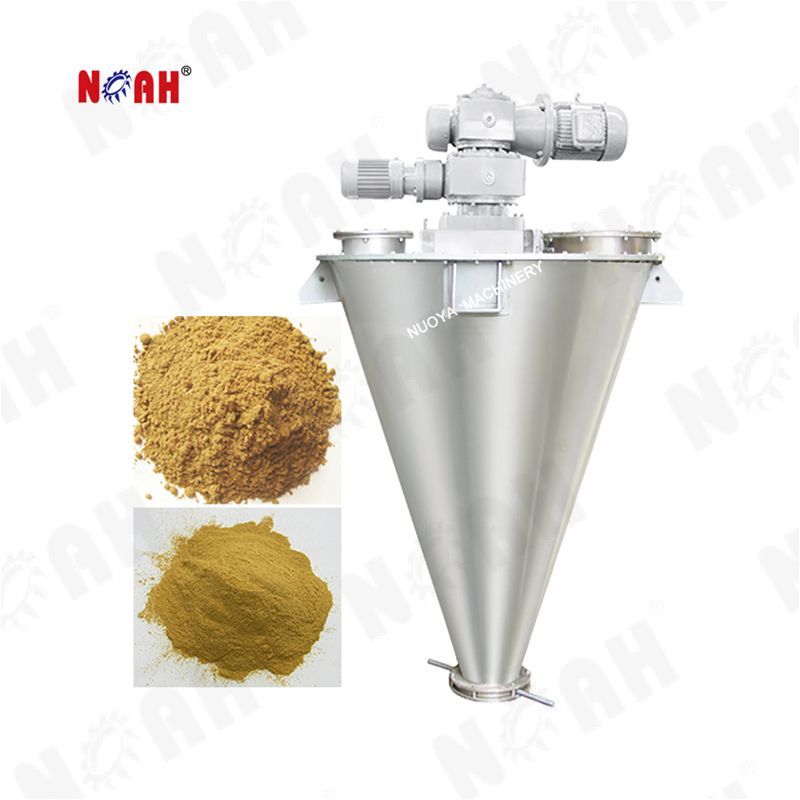

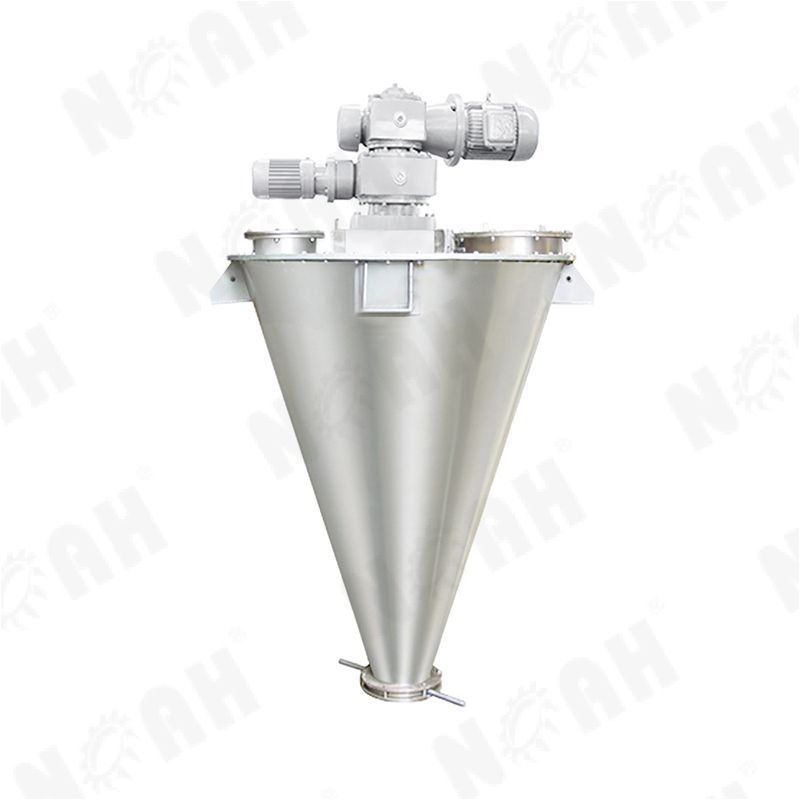

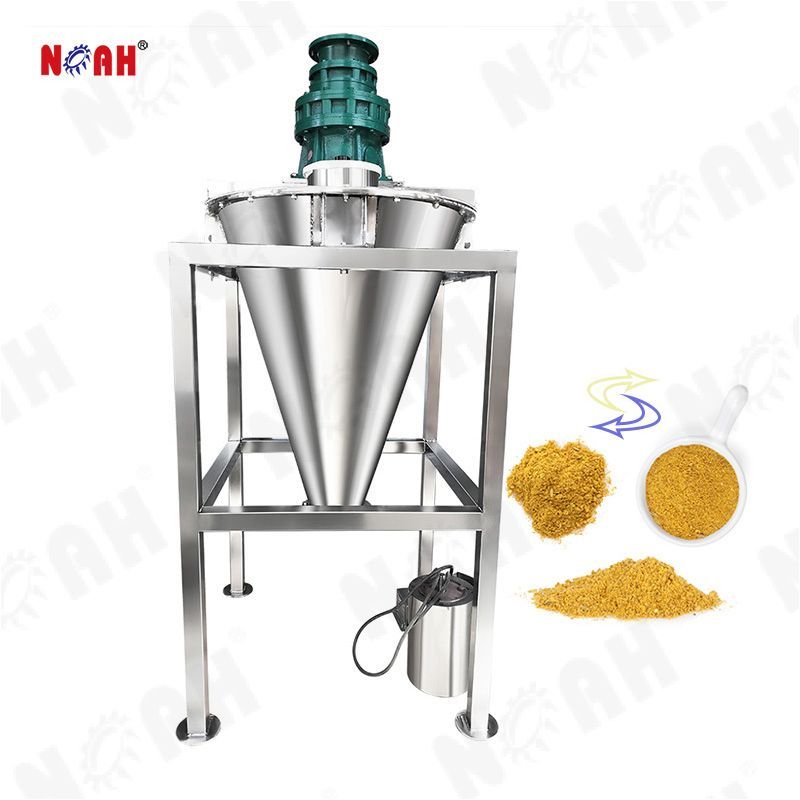

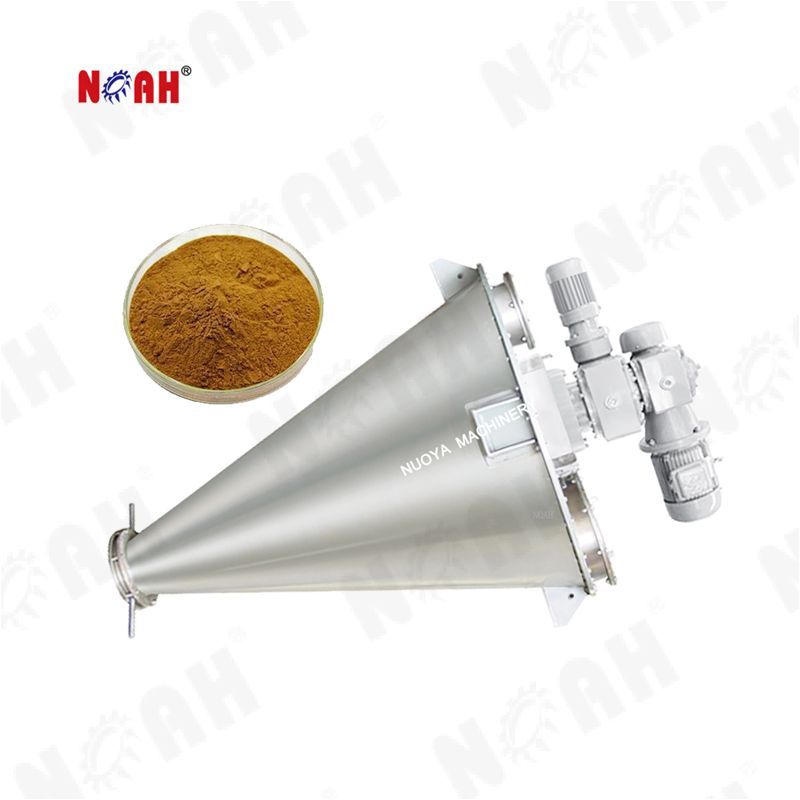

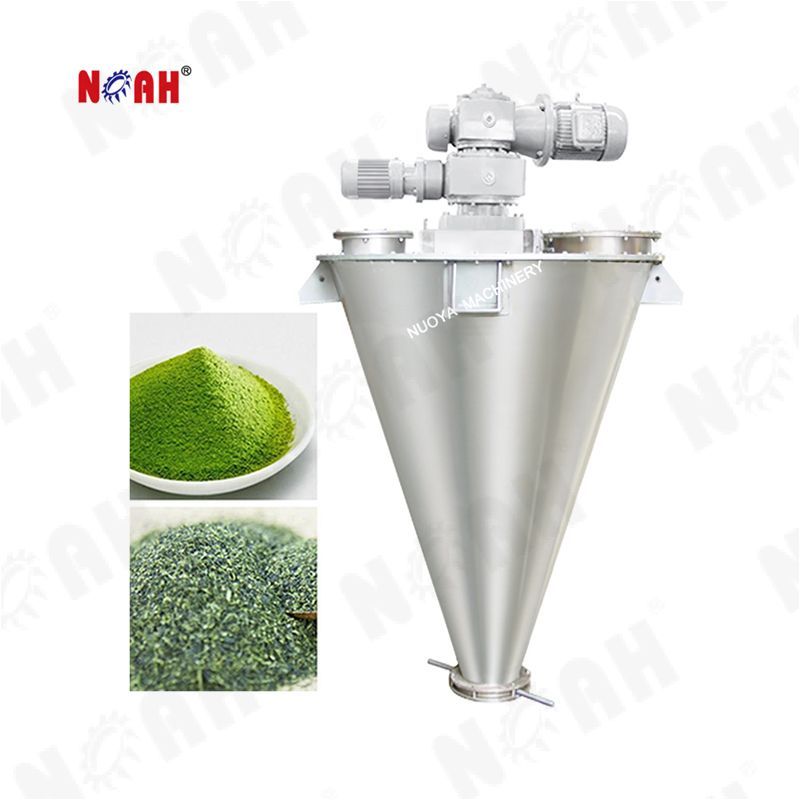

DSH Series Double Screw Cone Powder Mixer
YANGZHOU NUOYA MACHINERY CO.,LTD
+86 133 2812 5359
Specifications
1. Efficient capacity 100-30000liters
2. Drive 1.5kw-45kw
3. Efficiency 10-30mins/batch
Description
This DSH Double Screw Cone Powder Mixer has a good mixing effect. The mixing time is short.

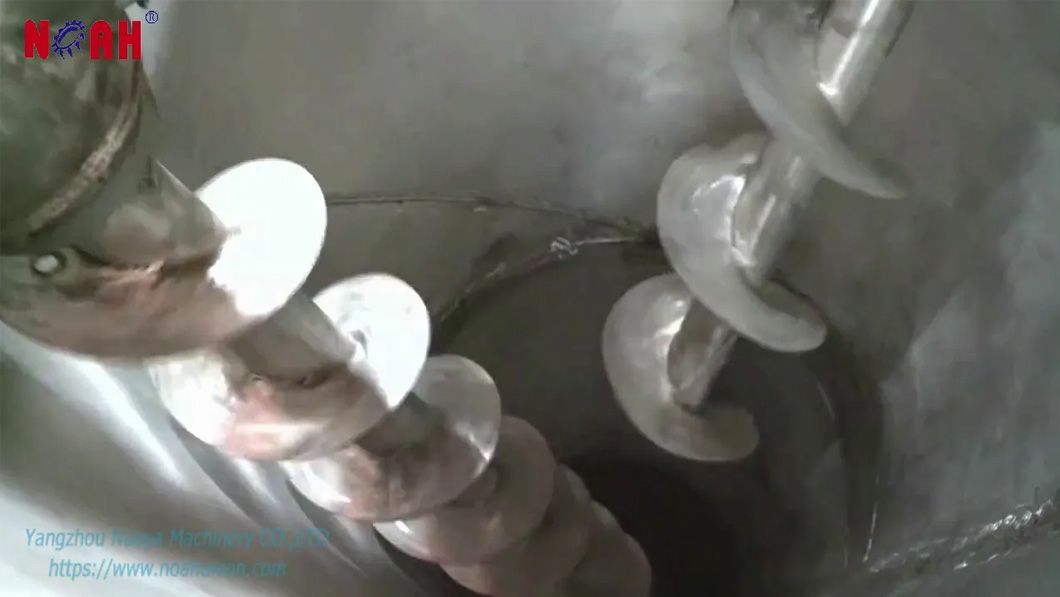

DSH Double Screw Cone Powder Mixer is convection mixer of high efficiency. It has characteristic of gentle, high accuracy mixing and no damage to product. Two screws suspended from a turning arm, with different rotation semi diameter and different length,make three-dimensional action; meantime, two screws make self rotation.
Function
DSH Double Screw Cone Powder Mixer is used for applications in which gentle mixing and residue-free discharge is required.
Furthermore, this DSH Double Screw Cone Powder Mixer is suitable for intermediate material storage combined with temporary blending. This DSH Double Screw Cone Powder Mixer fits for mixing of powder, granule, crystallization, agglomeration, mixing with spraying liquid etc.
Performance & Technical Features
● Efficient capacity 100-30000liters
● Drive 1.5kw-45kw
● Efficiency 10-30mins/batch (Depending on recipe and configuration)
● Gentle mixing&low power consumption
● Minimum heat generation
● No leftover and quick discharge Function configuration
● Heating/cooling jacket
● Sealing device
● Spraying device
● Cleaning device
● Sampling device
● Drive control
Discharge
● Discharge control
● Manual self-lock
● Pneumatic driven
● Electric driven
● Discharge valve
● Dislocation valve
● Half spheric valve
● Butterfly valve
● Slide valve
● Doors/opening on mixer
● Standard flange connection
● Quick-opening feeding inlet
● Exhaust port
● Cleaning doors
Material standard
● Carbon/mild steel
● Contact parts SS 304
● All mixing tank SS 304
● Contact parts SS 316L
● All mixing tank SS 316L
● Special material
● Anti-corrosion material cladded
● Abrasion proof material painted
● Functional
Product Video
Finished Product Display
Specifications
Model | DSH | |||||||||||
-0.3 | -0.5 | -1 | -2 | -3 | -4 | -6 | -10 | -15 | -20 | -30 | ||
WorkingCapacity | (M3) | 0.18 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3.6 | 6 | 9 | 12 | 18 |
(KG) | 200 | 300 | 650 | 1200 | 1800 | 2500 | 3600 | 6000 | 9000 | 12000 | 18000 | |
Revolution/rotation | 2/108 | 2/57 | 1.8/57 | 1.2/57 | ||||||||
Power(KW) | 3 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 37 | 45 | |
Weight(kg) | 500 | 600 | 1200 | 1500 | 2300 | 25200 | 3700 | 3980 | 4500 | 5500 | 6800 | |
DIA | 950 | 1150 | 1580 | 1950 | 2170 | 2280 | 2560 | 3000 | 3450 | 3770 | 4100 | |
H | 2060 | 2350 | 2840 | 3500 | 3760 | 4360 | 4800 | 5900 | 6680 | 6700 | 7500 |
FAQ - Have any questions?
What is the working principle of the DSH Series Double Screw Cone Powder Mixer?
The DSH Series Double Screw Cone Powder Mixer utilizes the rotating screws inside a cone-shaped vessel to create a fluidized zone, resulting in efficient and homogeneous mixing of powdered materials.
What is the capacity range of the DSH Series Double Screw Cone Powder Mixer?
The capacity range of the DSH Series Double Screw Cone Powder Mixer varies depending on the model and can range from 50 to 4000 liters.
Can the DSH Series Double Screw Cone Powder Mixer handle fragile or heat-sensitive materials?
Yes, the DSH Series Double Screw Cone Powder Mixer is suitable for handling fragile or heat-sensitive materials due to its gentle mixing action and the ability to operate at low speeds.
Is it possible to achieve a uniform mixture with the DSH Series Double Screw Cone Powder Mixer?
Yes, the DSH Series Double Screw Cone Powder Mixer is specifically designed to achieve a highly uniform mixture by ensuring thorough blending of the powdered materials.
Can the DSH Series Double Screw Cone Powder Mixer be used for wet mixing as well?
No, the DSH Series Double Screw Cone Powder Mixer is primarily designed for dry powder mixing applications. It is not intended for wet mixing processes.
Does the DSH Series Double Screw Cone Powder Mixer require any specific power supply?
The DSH Series Double Screw Cone Powder Mixer typically operates on standard electrical power supply, such as 220V or 380V, depending on the specific model and regional electrical standards.
What cleaning and maintenance procedures are required for the DSH Series Double Screw Cone Powder Mixer?
The DSH Series Double Screw Cone Powder Mixer is designed for easy cleaning and maintenance. It features a dismountable design with smooth surfaces, allowing for efficient cleaning and inspection of the mixing chamber and screws.
Are there any safety features incorporated into the DSH Series Double Screw Cone Powder Mixer?
Yes, the DSH Series Double Screw Cone Powder Mixer is equipped with safety features such as emergency stop buttons, safety interlocks, and protective covers to ensure operator safety during operation.
Can the DSH Series Double Screw Cone Powder Mixer be used in combination with other equipment?
Yes, the DSH Series Double Screw Cone Powder Mixer can be integrated into a production line or used in combination with other equipment such as feeders or conveyors to facilitate automated powder handling processes.
Can the DSH Series Double Screw Cone Powder Mixer be customized according to specific requirements?
Yes, the DSH Series Double Screw Cone Powder Mixer can be customized to some extent based on specific requirements. Optional features or configurations may be available upon request, depending on the manufacturer or supplier. Please note that the specific details and features of the DSH Series Double Screw Cone Powder Mixer may vary depending on the manufacturer or supplier. It is advisable to consult with the manufacturer or supplier directly to obtain accurate and up-to-date information for a particular model.
Investment Return Analysis for the "DSH Series Double Screw Cone Powder Mixer"
DSH Series Double Screw Cone Powder Mixer is a highly efficient and versatile mixing equipment used in various industries. As an investor, it is important to assess the potential return on investment (ROI) for this product. Here is an analysis of the investment return based on the development prospects of the mixer:
Growing Demand: The demand for efficient powder mixing solutions is expected to grow steadily across industries such as pharmaceuticals, food processing, chemicals, and more. This presents a positive outlook for the "DSH Series Double Screw Cone Powder Mixer" as it offers efficient and homogeneous mixing capabilities.
Cost Savings: The mixer's ability to achieve uniform mixtures reduces material waste and improves production efficiency. This can lead to significant cost savings for businesses in terms of raw material utilization and labor expenses.
Competitive Advantage: The "DSH Series Double Screw Cone Powder Mixer" offers unique features such as gentle mixing action, the ability to handle fragile materials, and a wide capacity range. This competitive advantage can attract customers looking for high-quality mixing equipment, potentially leading to increased market share and profitability.
Customization Opportunities: The mixer's ability to be customized based on specific requirements provides opportunities to cater to niche industries or unique customer needs. This flexibility can enhance its market reach and revenue potential.
Technological Advancements: Continuous advancements in technology can lead to the improvement of the mixer's efficiency, ease of use, and automation capabilities. Staying up-to-date with technological trends and incorporating them into future models can ensure the mixer's competitiveness and long-term viability.
International Market Expansion: The "DSH Series Double Screw Cone Powder Mixer" has the potential for international market expansion. As global industries continue to grow, there is an opportunity to tap into new markets and establish partnerships with international distributors, which can significantly increase sales and revenue.
After-Sales Services: Offering comprehensive after-sales services, such as installation support, training, and maintenance, can enhance customer satisfaction, leading to repeat business and positive word-of-mouth recommendations.
Return on Investment (ROI): The ROI for investing in the "DSH Series Double Screw Cone Powder Mixer" will depend on various factors, including the initial investment cost, operating expenses, market demand, pricing strategy, and sales volume. Conducting a detailed financial analysis, including cash flow projections and payback period calculations, can help determine the expected ROI.
It is important to note that investment decisions should be based on a thorough evaluation of market conditions, competition, and financial projections specific to your investment goals and risk tolerance. Consulting with industry experts and conducting due diligence on the manufacturer or supplier can provide valuable insights for making an informed investment decision.
