Description

Application:

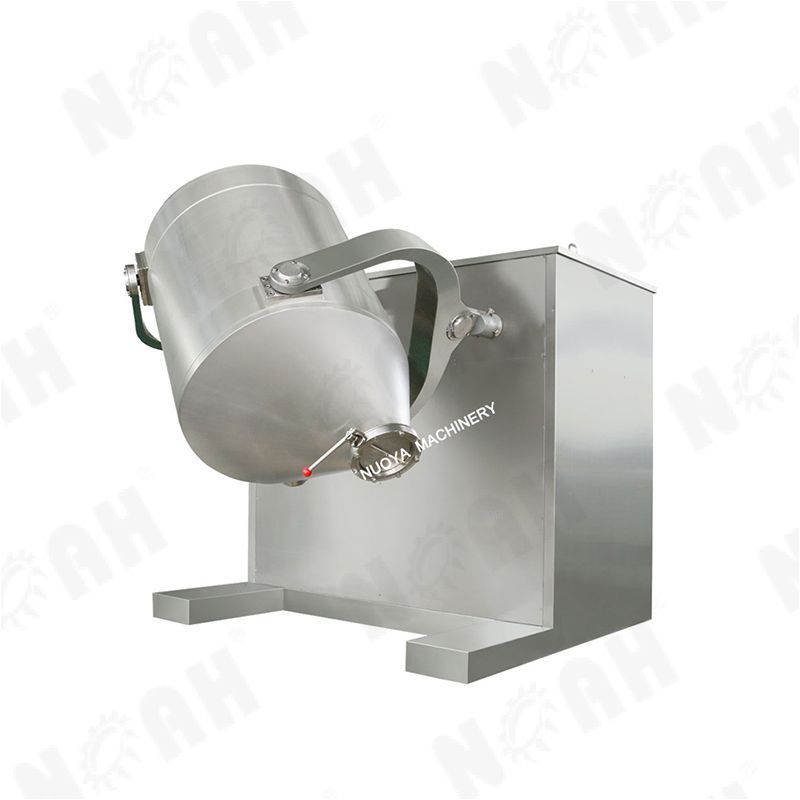

HD series Multi directional Movement Mixer is a novel materials mixing machine widely applicable to industries such as pharmaceutical, chemical, foodstuff and light industry as well as R&D. institutes. The machine canperform a very uniformmixing of power or granular materials with a good mobility.

1. The working principles
When the machine is in operation. because of the running actions of the mixing tank in multi direction, the now and diBRjsion of the various kinds of materials are sped up in the process of mixing. At the same time, the phenomenon is avoid that the congregation and segregation of the material in gravity ratio occaning dueto the centrifulgal force in the normalmixer and extremely good effect can be obtained.

2. Structure

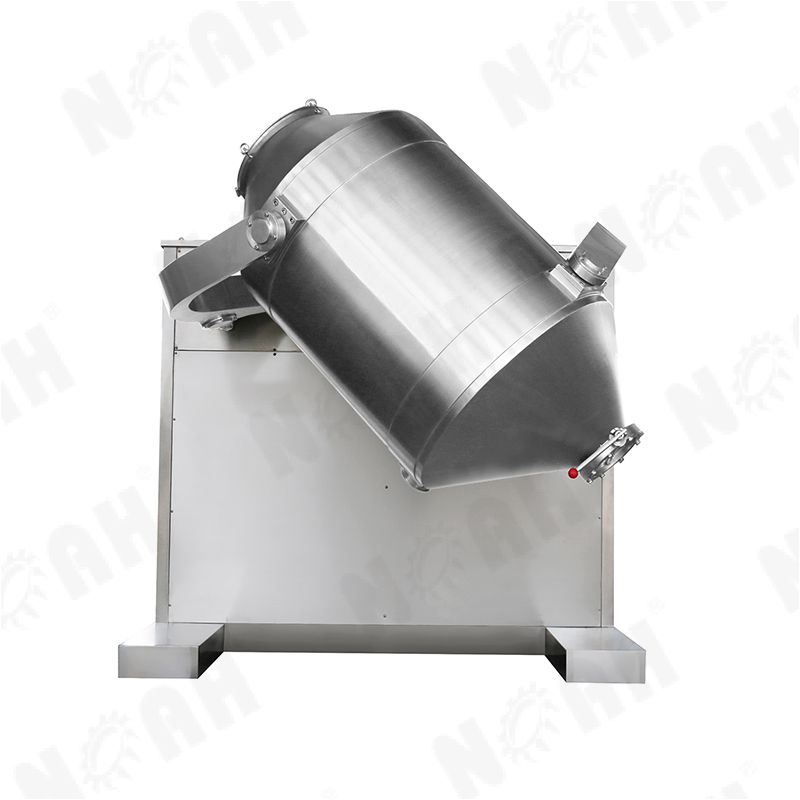

HD series Multi directional Movement Mixer consists of the base, driving system. electric control system, multi-directional ,movement mechanism and mixingtank. The mixing tank to be in contact with the materials are made of quality stainless steel, with both inside and outside of the tank mirror polished.

3. Features
(1). Because the nixing tank performs a multi directional movement, there are manypoints of mixing with a good effect of mixing. The uniformity of the mixing isbeuer than that of the normal mixer.
(2). The shape of the mixing tank is reasonably designed with no death corner and both the inside and outside polished. The discharge of materials is free with no accumulation. It is easy to clean.
(3). The materials are mixed in an enclosed state. With no contamination to the working environment and materials.

Finished Product Display

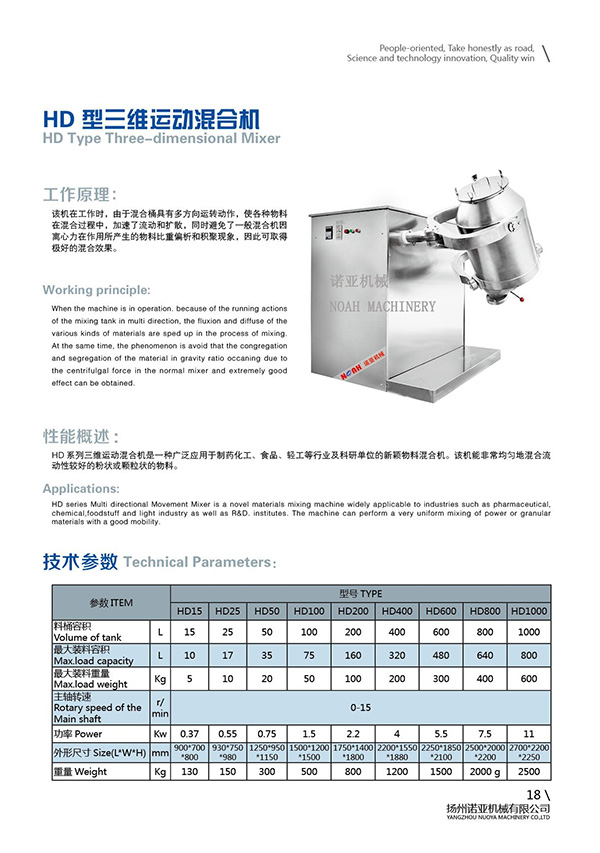

Specification

ITEM	TYPE
	HD100	HD200	HD400	HD600	HD800	HD1000
Volume of tank	100 L	200 L	400 L	600 L	800 L	1000 L
Max.load capacity	75 L	160 L	320 L	480 L	640 L	800 L
Max.load weight	50 kg	100 kg	200 kg	300 kg	400 kg	600 kg
Rotary speed of the Main shaft	O-15 r/min
Power	1.5 Kw	2.2 Kw	4 Kw	5.5 Kw	7.5 Kw	11 Kw
Size(LWH)	120017001500	140018001600	180021001950	190023002250	220025002590	225026002600
Weight	500 kg	800 kg	1200 kg	1500 kg	2000 kg	2500 kg

FAQ - Have any questions?

What is the capacity range of the HD Type Three-dimensional Mixer?

The capacity of the HD Type Three-dimensional Mixer typically ranges from 75L to 800L, accommodating varying batch sizes.

What materials can be mixed using the HD Type Three-dimensional Mixer?

This mixer is suitable for blending powders, granules, or similar materials used in pharmaceutical, food, or chemical industries.

How efficient is the mixing process with the HD Type Three-dimensional Mixer?

The HD Type Mixer ensures efficient blending due to its three-dimensional movement design, promoting thorough mixing and homogeneity.

Is the mixing process uniform and consistent with the HD Type Mixer?

Yes, the three-dimensional movement ensures uniform mixing, maintaining consistency across batches.

Can the HD Type Mixer handle fragile materials during mixing?

Yes, it's designed to mix delicate or fragile materials gently to prevent breakage or damage.

What safety features are integrated into the HD Type Three-dimensional Mixer?

Safety features may include emergency stop buttons, overload protection, and safety guards, ensuring secure operations.

How is the cleaning process for the HD Type Mixer?

The machine is designed for easy cleaning and maintenance, with removable parts and accessible surfaces for efficient cleaning.

Can the mixing intensity or speed be adjusted or customized?

Yes, some models may allow for adjustable mixing intensity or speed based on specific material requirements.

Is the HD Type Mixer suitable for mixing materials with varying densities?

The mixer is often equipped to handle materials with different densities, ensuring thorough blending despite varying properties.

What technical support is provided with the purchase of the HD Type Three-dimensional Mixer?

Comprehensive technical support, including setup guidance, training, and ongoing assistance, is typically offered to ensure optimal use of the equipment.
