Powder and Liquid Mixer | Horizontal Ribbon Mixer

Description

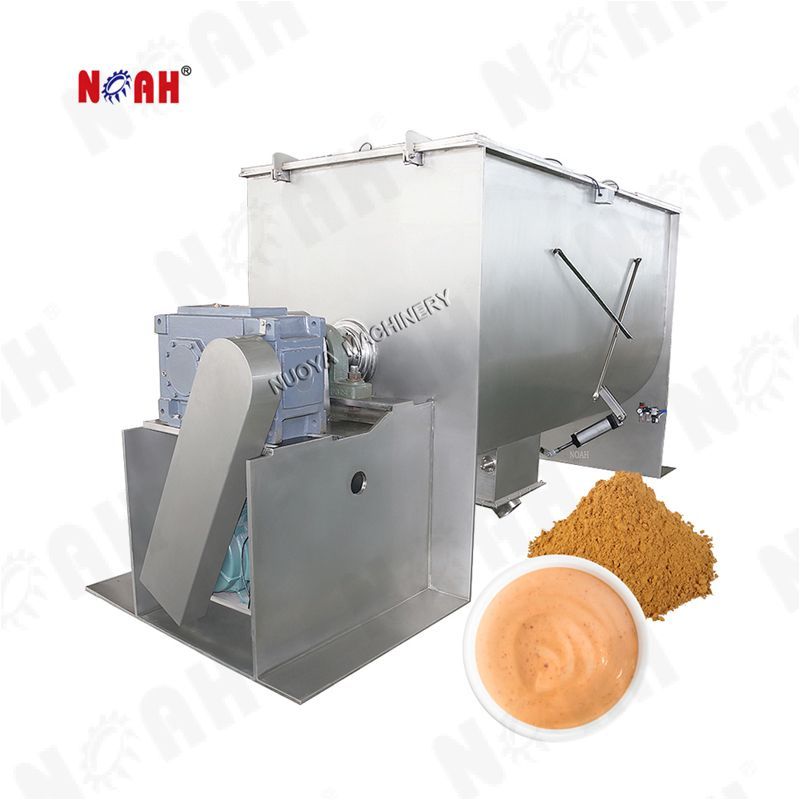

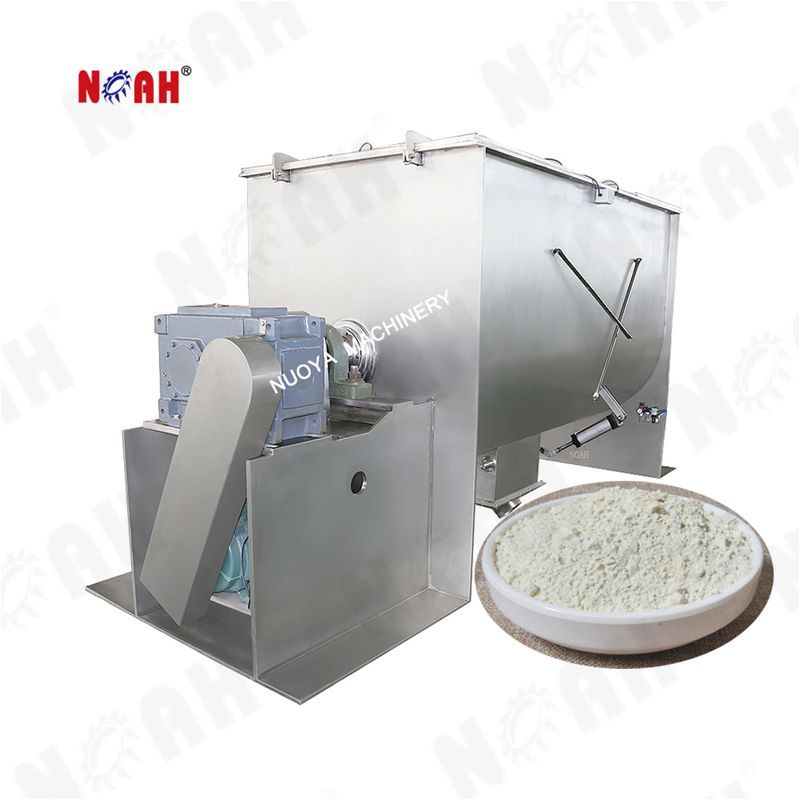

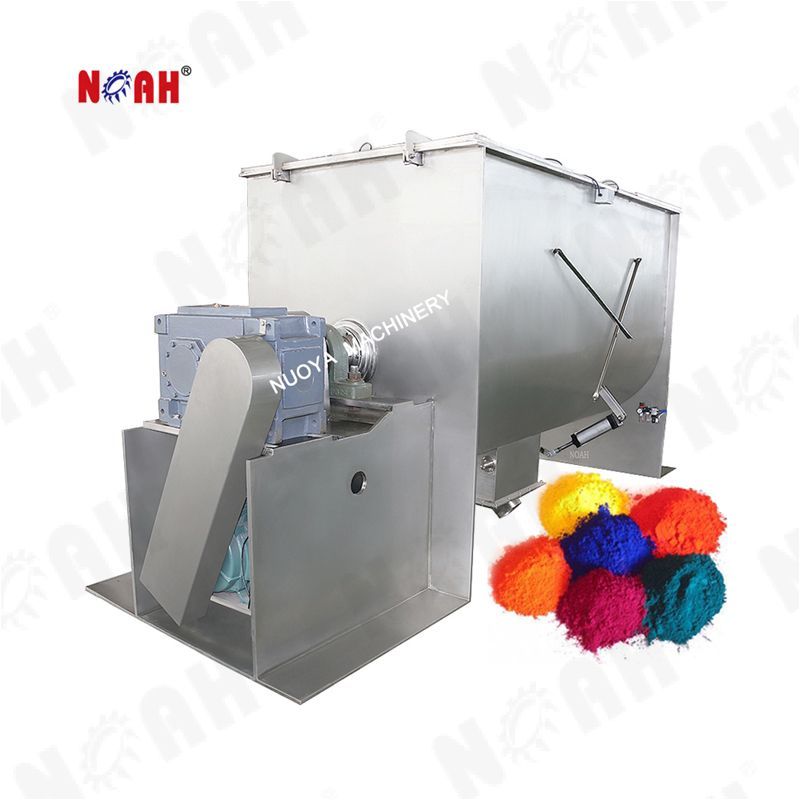

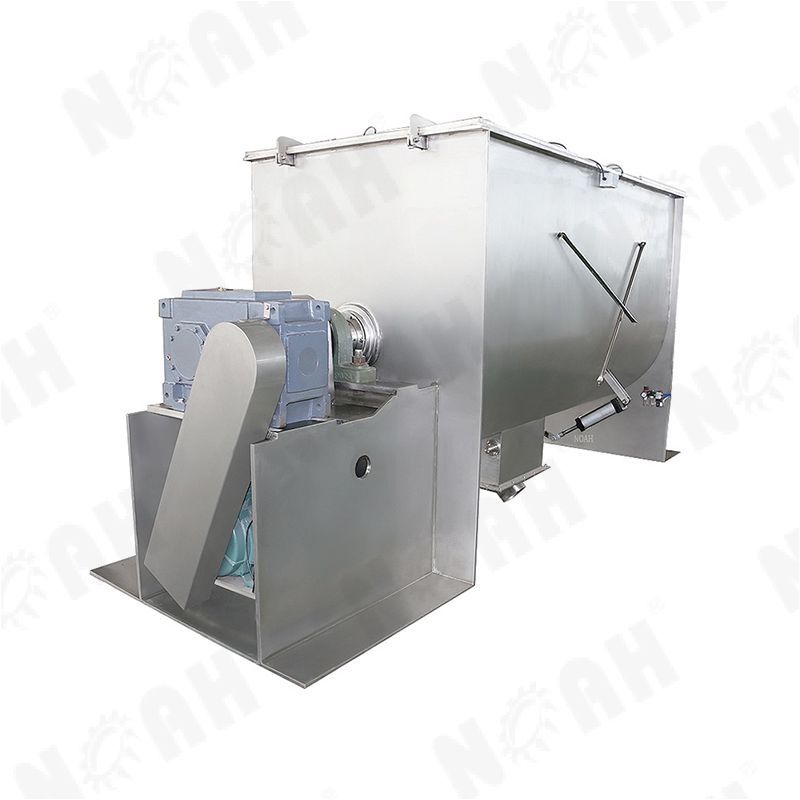

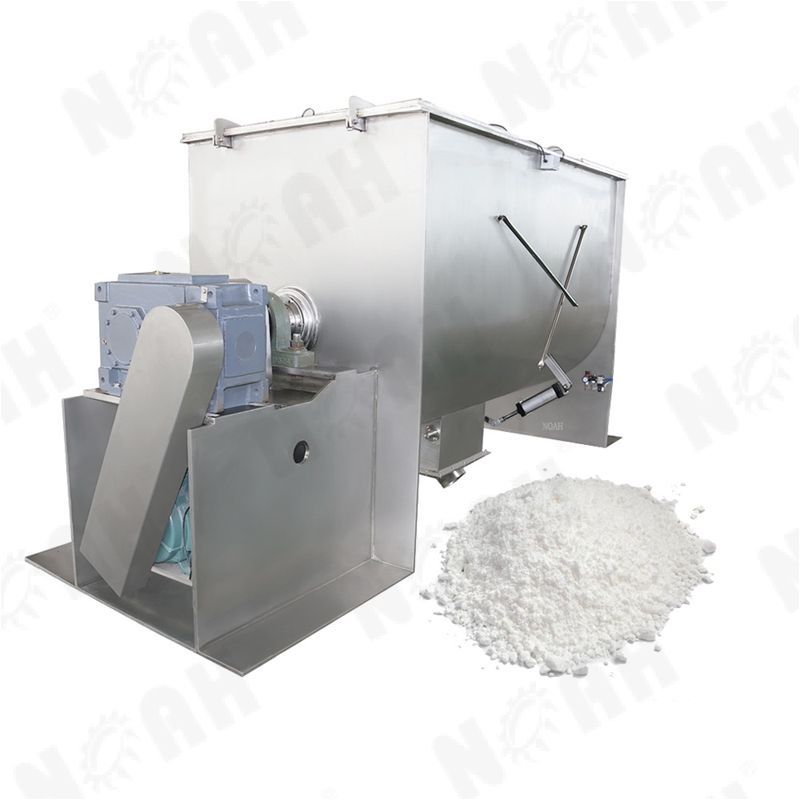

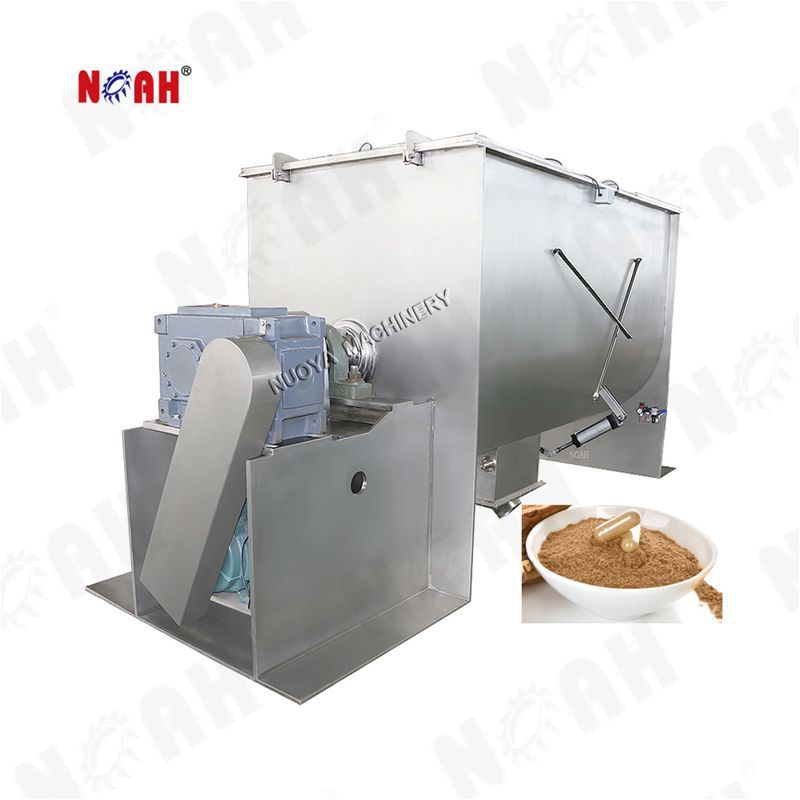

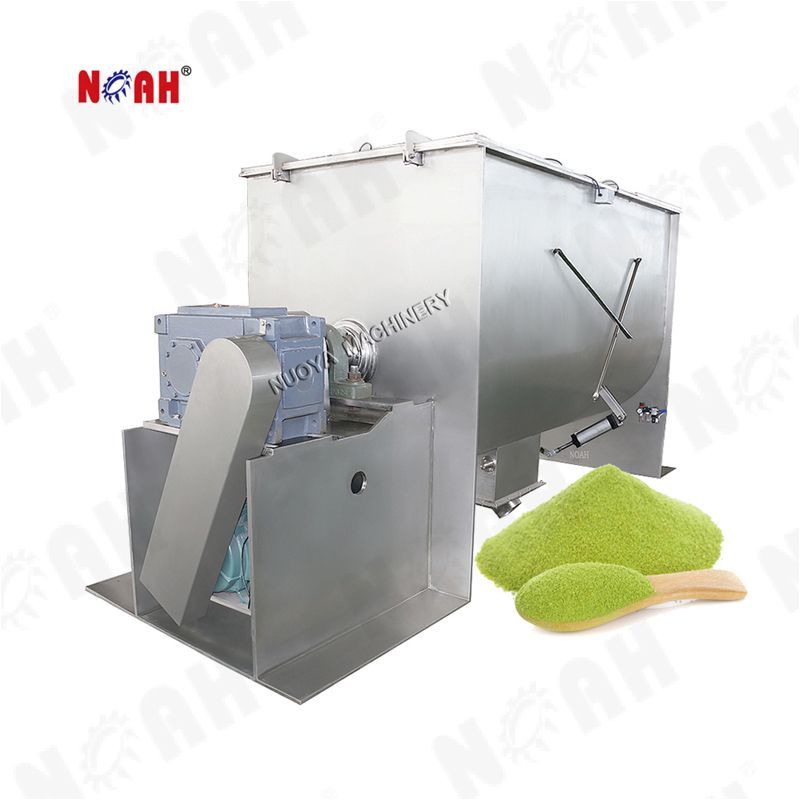

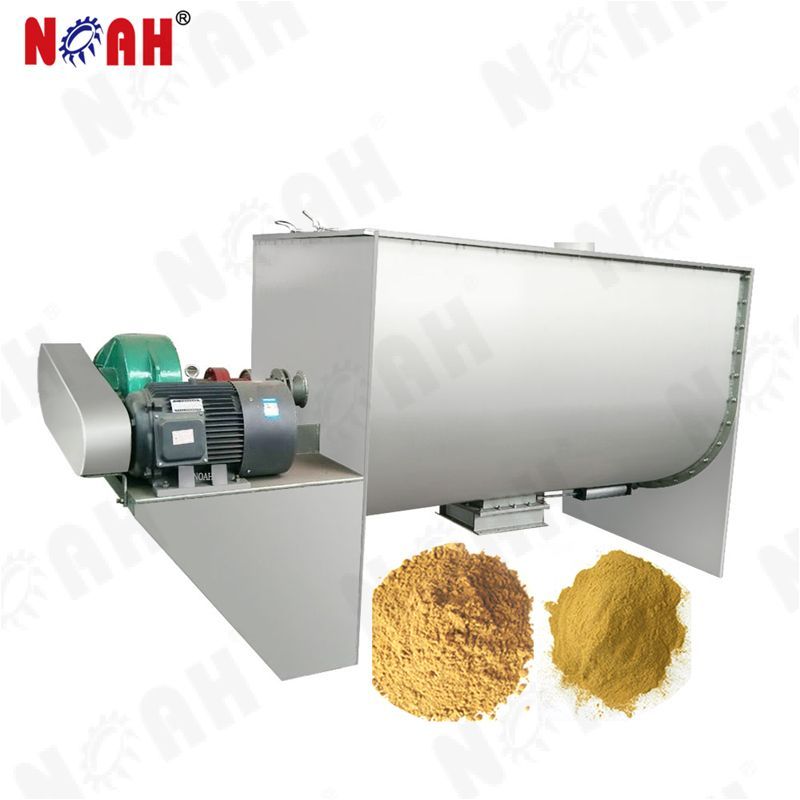

Principle WLDH Series Horizontal Ribbon Mixer is composed of container, screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the center from two sides, and the inner layer of screw conveys the material to the two sides from the center, so as to from convection mixing. Ribbon mixer has a good result in the mix of viscosity or cohesion powder and of putting liquid and mash material into the powder. The cylinder cover can be fully open so as to clean and change the device.

Features

1. Big coefficient of loading, small occupied area.

2. It is difficult to clean when it is used to mix viscous or adhesive material.

3. High efficiency horizontal ribbon mixer.

Applications

WLDH Series Horizontal Ribbon Mixer is generally used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.

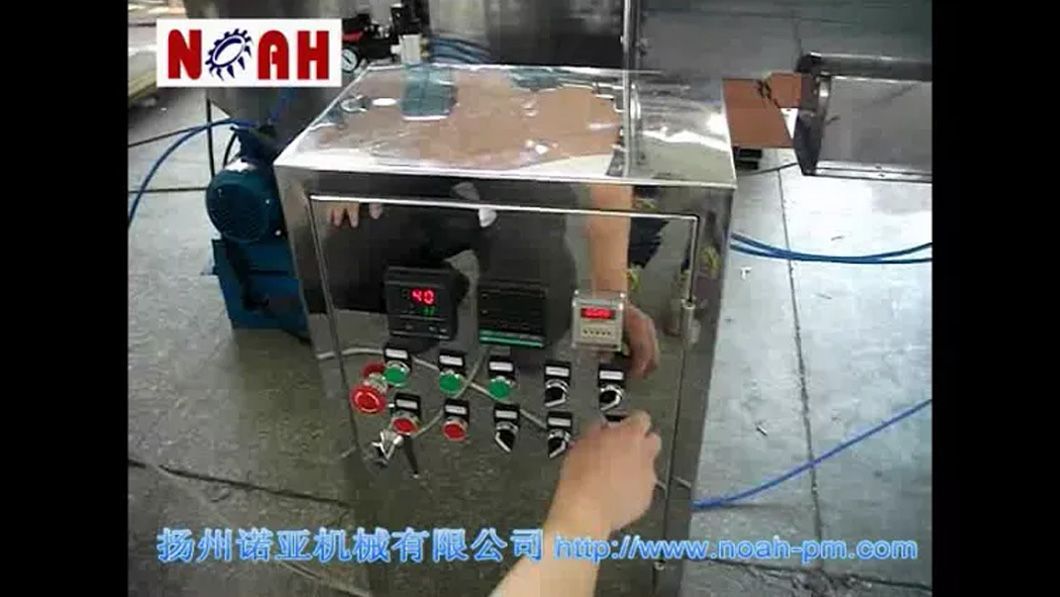

Product Video

Finished Product Display

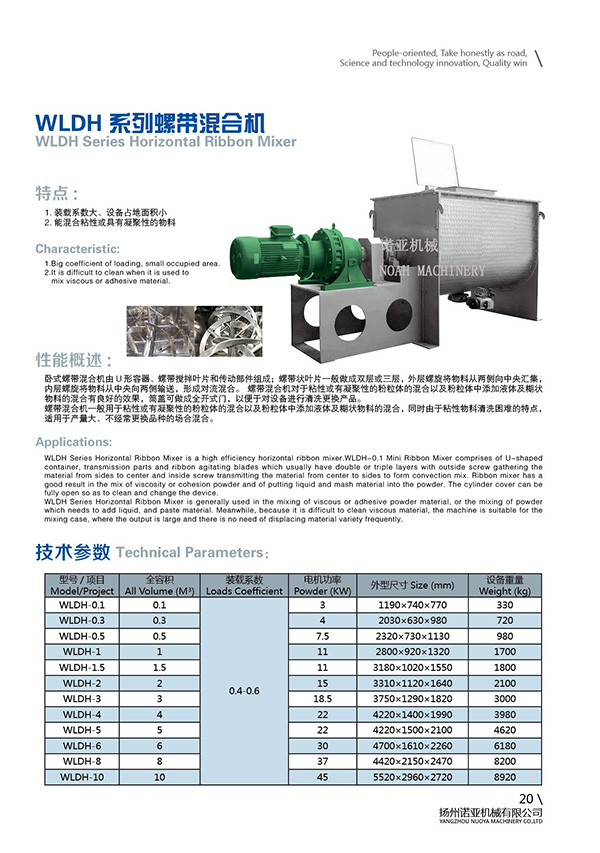

Specification

Model/Project	All Volume (m3)	Loads Coefficient	Powder (kw)	Size	Weight (kg)
WLDH -0.1	0.1	0.4-0.8	3	1190×740×770	330
WLDH -0.3	0.3		4	2030×630×980	720
WLDH -0.5	0.5		7.5	2320×730×1130	980
WLDH -1	1		11	2800×920×1320	1700
WLDH -1.5	1.5		11	3180×1020×1550	1800
WLDH -2	2		15	3310×1120×1640	2100
WLDH -3	3		18.5	3750×1290×1820	3000
WLDH -4	4		22	4220×1400×1990	3980
WLDH -5	5		22	4220×1500×1990	4620
WLDH -6	6		30	4700×1610×2260	6180
WLDH -8	8		37	4420×2150×2470	8200
WLDH -10	10		45	5520×2960×2720	8920
WLDH -12	12		45	5720×3010×2840	9520
WLDH -15	15		55	5840×3540×2940	9950

FAQ - Have any questions?

What is the capacity range of the WLDH Series Horizontal Ribbon Mixer?

The capacity of the WLDH Series Mixer typically ranges from 0.1m³ to 15m³, accommodating varying batch sizes.

What materials can be mixed using the WLDH Series Horizontal Ribbon Mixer?

This mixer is suitable for blending dry powders, granules, or similar materials used in pharmaceutical, food, or chemical industries.

How efficient is the mixing process with the WLDH Series Horizontal Ribbon Mixer?

The WLDH Series Mixer ensures efficient blending due to its horizontal ribbon design, promoting thorough mixing and homogeneity.

Is the mixing process uniform and consistent with the WLDH Series Mixer?

Yes, the ribbon design ensures uniform mixing, maintaining consistency across batches.

Can the WLDH Series Mixer handle fragile materials during mixing?

Yes, it's designed to mix delicate or fragile materials gently to prevent breakage or damage.

What safety features are integrated into the WLDH Series Horizontal Ribbon Mixer?

Safety features may include emergency stop buttons, safety guards, and mechanisms to prevent spillage or accidents during operation.

How is the cleaning process for the WLDH Series Mixer?

The machine is designed for easy cleaning and maintenance, with removable parts and accessible surfaces for efficient cleaning.

Can the mixing intensity or speed be adjusted or customized?

Yes, some models may allow for adjustable mixing intensity or speed based on specific material requirements.

Is the WLDH Series Mixer suitable for mixing materials with varying densities?

Yes, it's designed to handle materials with different densities, ensuring thorough blending despite varying properties.

What technical support is provided with the purchase of the WLDH Series Horizontal Ribbon Mixer?

Comprehensive technical support, including setup guidance, training, and ongoing assistance, is typically offered to ensure optimal use of the equipment.

Investment Return Analysis: Growth Prospects for WLDH Series Horizontal Ribbon Mixer

Market Potential:

Industry Demand: The WLDH Series Mixer serves industries like pharmaceuticals, food, and chemicals, meeting the escalating demand for efficient blending of dry powders and granules.

Expanding Industries: As these industries expand globally, the need for advanced mixing equipment intensifies, consequently increasing the demand for the WLDH Series Mixer.

Competitive Advantage:

Horizontal Ribbon Design: The mixer's horizontal ribbon structure ensures thorough and homogeneous blending, offering an edge over conventional mixers.

Versatility: Its capability to blend various dry materials efficiently caters to diverse industry requirements, enhancing its market competitiveness.

Technological Advancements:

Innovation Potential: Potential technological upgrades could further improve its efficiency and adaptability, ensuring continued competitiveness.

R&D Investment: Continued research and development efforts may lead to improved functionalities, meeting evolving industry needs.

Cost Efficiency:

Operational Savings: Efficient mixing reduces production time and material wastage, contributing to cost savings and heightened productivity.

Resource Optimization: Its ability to handle various materials optimizes resource utilization, aligning with sustainable manufacturing practices.

Conclusion:

Investing in the WLDH Series Horizontal Ribbon Mixer presents promising returns aligned with the increasing demand for efficient and versatile blending solutions across multiple industries. Its competitive advantages in efficiency, versatility, and potential technological advancements position it favorably for substantial market uptake.
