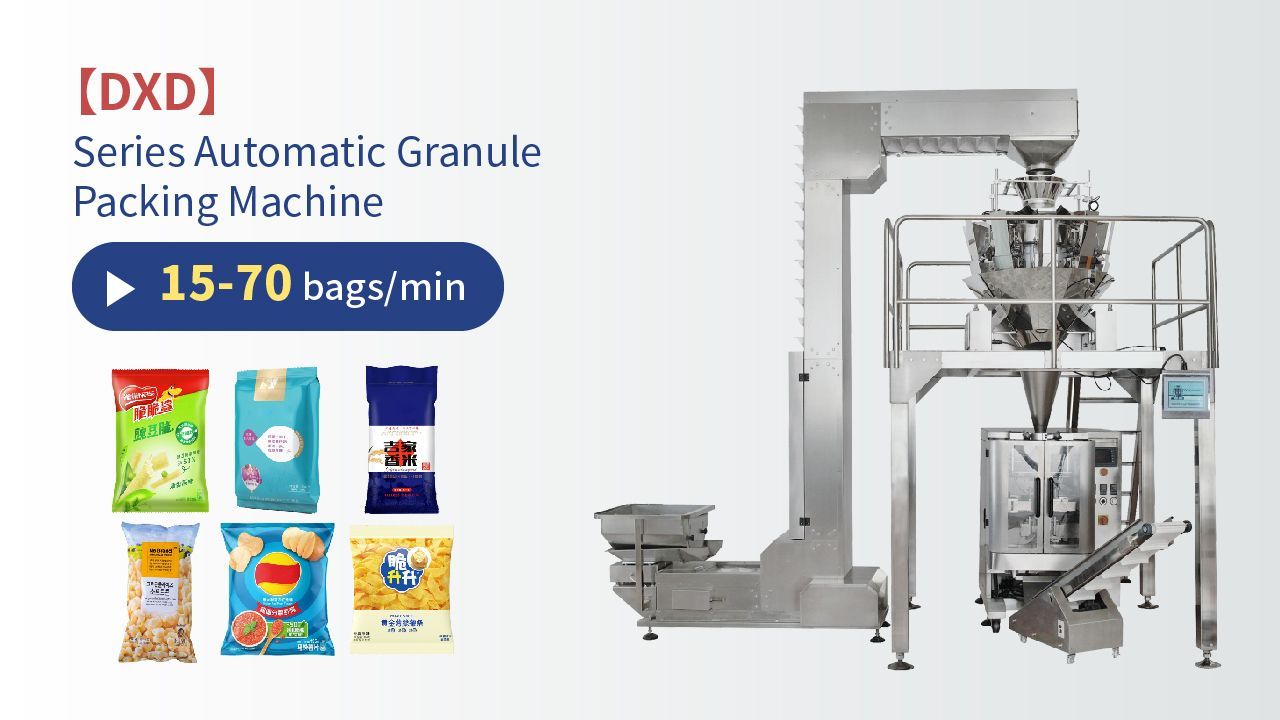

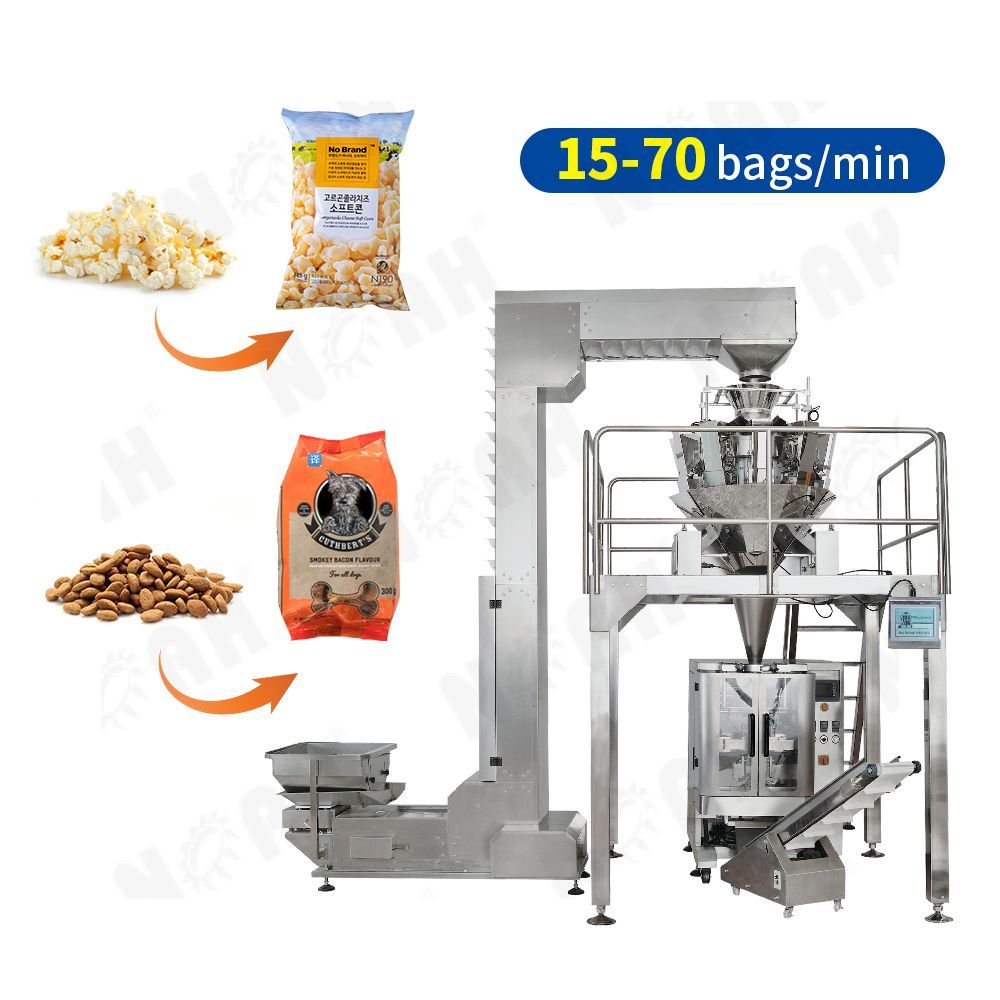

DXD-520 Automatic Giving Bag Packing Machine

Description

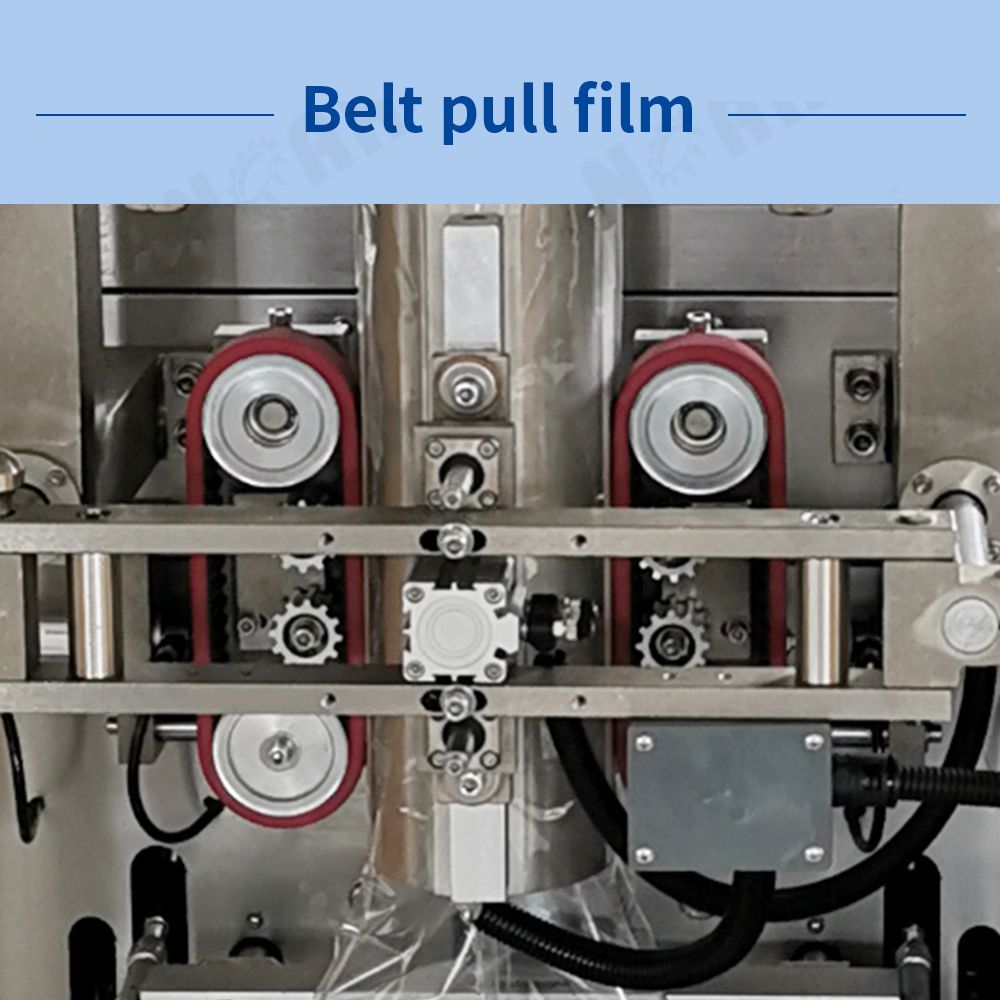

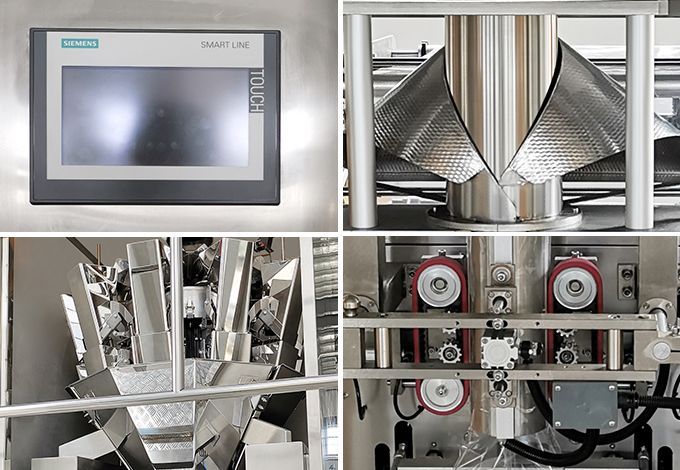

The DXD-520 Automatic Giving Bag Packing Machine is a versatile unit designed for the automatic packaging of various materials. It is suitable for packaging a wide range of products, including fried food, potato chips, shrimp, sweets, chocolate, biscuits, peanuts, rice, grains, seeds, pistachios, coffee beans, lima beans, tea, frozen food, sugar, salt, and medicine. This machine incorporates advanced features such as a PLC control system, servo film feeding system, automatic correction device, automatic alarming protective function, and compatibility with different bag types.

Product Video

Packing speed	15-70bags/min
Bag-making size	(L)80-350mm (W)100-250mm
Filling range	150-2000ml
Film width	520mm
Packing materials	OPP/CPP PET/PE
Film thickness	0.04-0.08mm
Air consumption	0.36m3/min 0.6MPa
Power supply	AC220V 50Hz 3.5kw
Machine dimensions	(L)1750×(W)1050×(H)1700mm
Machine weight	1000kg

FAQ - Have any questions?

What is the DXD-520 Automatic Giving Bag Packing Machine used for?

The DXD-520 Automatic Giving Bag Packing Machine is designed for efficient and automated packaging of various products into giving bags.

What types of products can be packed using the DXD-520 machine?

The DXD-520 Automatic Giving Bag Packing Machine can pack a wide range of products, including snacks, candies, nuts, small hardware items, and other similar items.

How does the DXD-520 machine work?

The DXD-520 Automatic Giving Bag Packing Machine operates by automatically dispensing the desired quantity of the product into a giving bag, sealing the bag, and preparing it for distribution or sale.

What is the packaging capacity of the DXD-520 machine?

The packaging capacity of the DXD-520 Automatic Giving Bag Packing Machine depends on the specific model and the characteristics of the product being packed. It can handle a range of packaging capacities from a few grams to several kilograms.

Can the DXD-520 machine accommodate different bag sizes and materials?

Yes, the DXD-520 Automatic Giving Bag Packing Machine is adjustable and can accommodate different bag sizes and materials. It offers flexibility to meet various packaging requirements.

Does the DXD-520 machine have a user-friendly interface for easy operation?

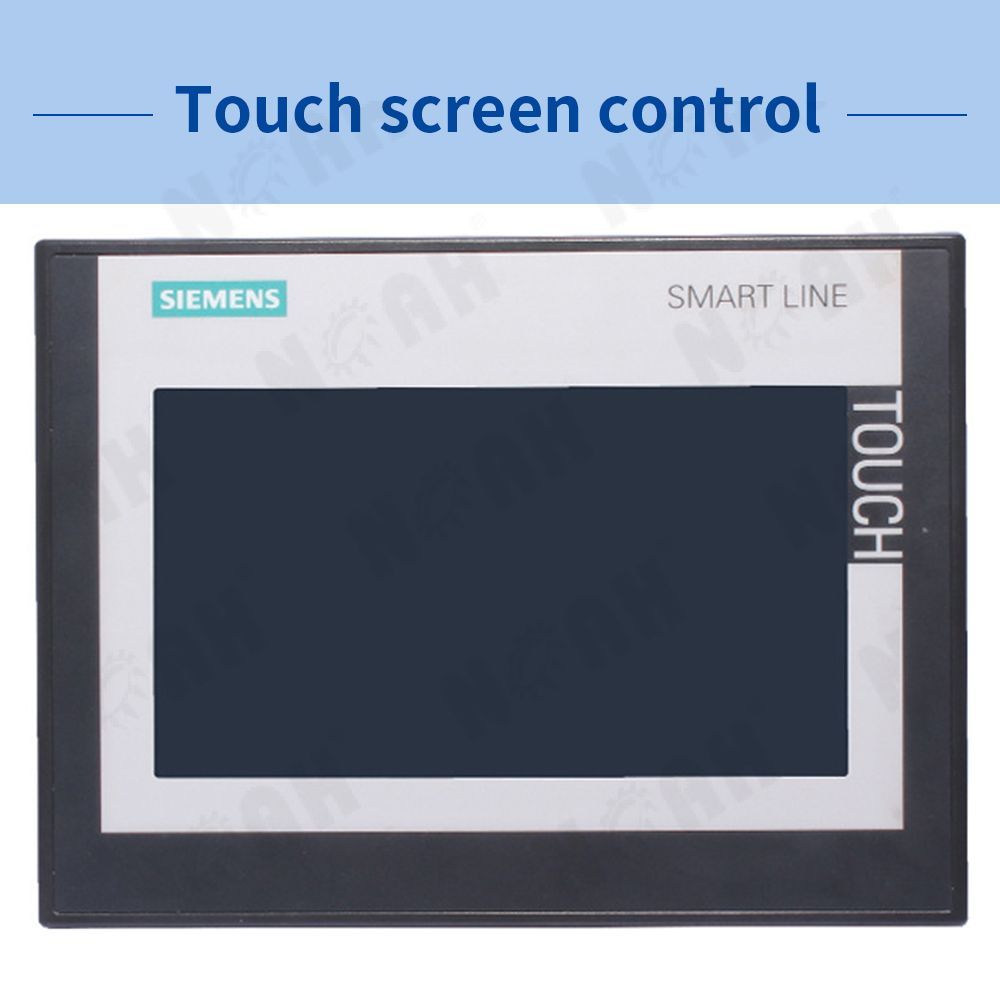

Yes, the DXD-520 Automatic Giving Bag Packing Machine is equipped with a user-friendly interface that allows operators to set parameters, monitor the packaging process, and make adjustments as needed.

What is the production speed of the DXD-520 machine?

The production speed of the DXD-520 Automatic Giving Bag Packing Machine varies depending on the specific model and the characteristics of the product being packed. It can range from 30 to 120 bags per minute.

Can the DXD-520 machine handle different bag sealing methods?

Yes, the DXD-520 Automatic Giving Bag Packing Machine can handle various bag sealing methods, including heat sealing, zip-lock closures, and fold-over closures, depending on the specific bag design and product requirements.
