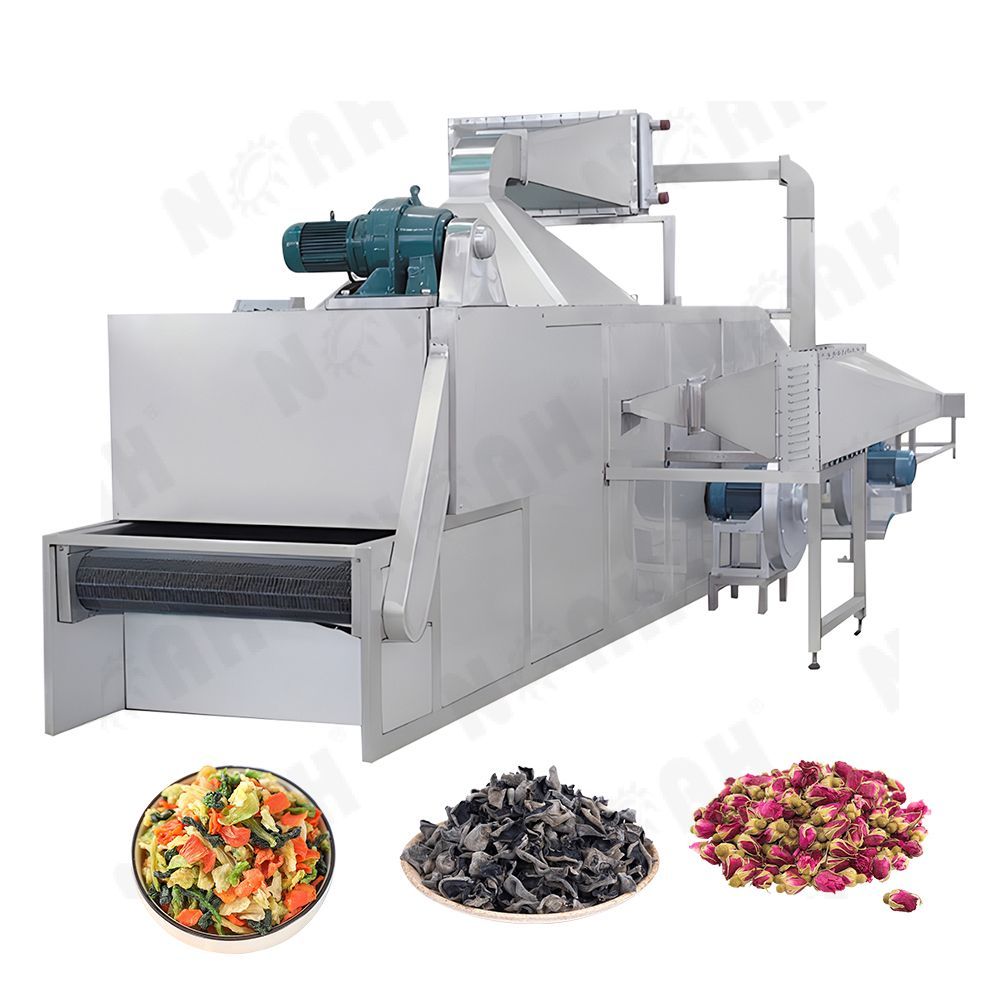

DW Series Belt Dryer | Belt Dryer Machine for Food Industry

Description

This machine is a continuous penetrating flow drying equipment applied for drying pieces strips and particle state materials with good ventilation. The machine is suitable for materials such as dewatering vegetables, herbal medicine of traditional Chinese medicine, and others, for which the water contents are high and high drying temperature is not allowed. The machine has the advantages, of fast drying speed, high evaporation capacity, and good product quality. The de-watered & filtered cake state paste material should be made into particles or strips before the drying process.

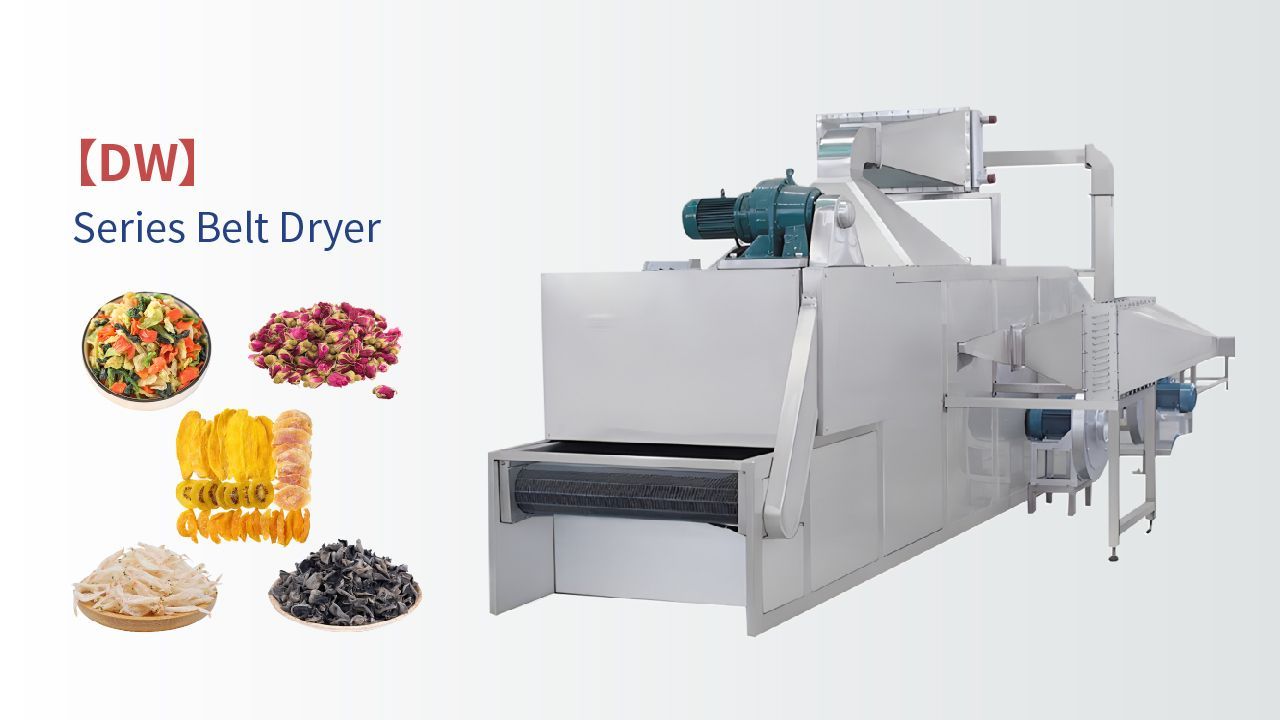

Product Video

Specification

Model	DW-1.2-8	DW-1.2-10			DW-1.6-8		DW-1.6-10		DW-2-8		DW-2-10
Unit NO.	4	5			4		5		4		5
Belt Width (m)	1.2	1.2			1.6		1.6		2		2
Drying Section Length (m)	8	10			8		10		8		10
Thickness of Material mm	≤60
Temperature	50-140
Steam Pressure Mpa	0.2-0.8
Steam Consumption Kg/h	120-300	150-375			150-375		170-470		180-500		225-600
Drying Strength Kg/h	60-160		80-220	75-220		95-250		100-260		120-300
Power of Blower KW	3.3	4.4			6.6		8.8		12		16
Total Power of Machine KW	11.4	13.6			11.4		13.6		14.7		15.8

Specialized machine for vegetable

Model	Unit	DWP-2-10-3	DWF-2-10-3	DW5-3-12
Effective Belt Width	m	2	2	3
Effective Belt Length	m/unit	10	10	12
Tandem Quantity		3	3
Layers				5
Vegetable Capacity	kg/h	600	720	2000
Evaporate Strength	kg/h	400-510	480-640	1440-1800
Consumption of Steam	Kgsteam/KgH2O	2.2-2.5	2.2-2.5	2.2-2.4
Heat Radiation Area	m2	900	1440	2600
Total Power of the Machine	kw	70	52	150
Overall Size	m	33.2×2.58×2.8	33.2×2.27×2.85	15.3×4.3×8.5
Heat Source Type	steam, theermal conductivity oil, hot air furnace, electric

Specialized Machine for Feed (Frame Type)

Model	unit	DWZ-3×12
Effective Belt Width	m	3
Effective Belt Length	m/unit	12
Using Temperature	℃	80-130
Pressure of Steam	Mpa	0.4-0.8
Drying Time	min	35-50
Thickness of Material	cm	5-8
Drying Strength	kg/h	6-20
Consumption of Steam	Kgsteam/KgH2O	2-2.4
Total power of the machine	kw	76
Overall size	m	15.1×4.3×3.4

FAQ - Have any questions?

What is the DW Series Belt Dryer?

The DW Series Belt Dryer is a type of continuous drying equipment used in various industries to remove moisture from materials by passing them through a drying chamber on a conveyor belt. It offers efficient and uniform drying capabilities.

What types of materials can be dried using the DW Series Belt Dryer?

The DW Series Belt Dryer is suitable for drying a wide range of materials, including food products, agricultural products, chemicals, pharmaceuticals, and minerals. It can accommodate both solid and granular materials, making it versatile for different drying applications.

How does the DW Series Belt Dryer work?

The DW Series Belt Dryer operates by feeding the wet material onto a continuously moving conveyor belt. The material is spread evenly on the belt and passes through multiple drying zones with controlled temperature and airflow. As it moves along the belt, hot air is circulated to remove moisture, resulting in effective drying.

What are the key features of the DW Series Belt Dryer?

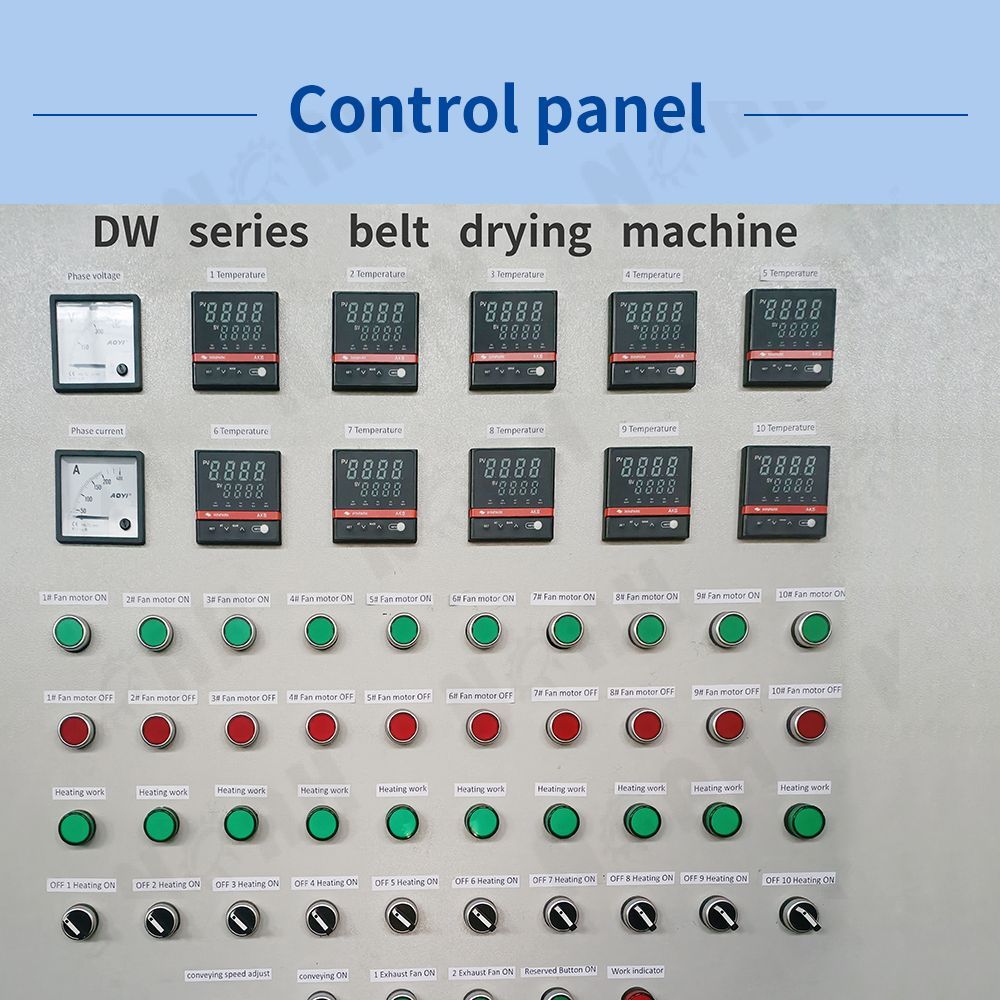

The DW Series Belt Dryer features a continuous drying process, adjustable drying parameters, precise temperature control, uniform airflow distribution, a reliable heating system, and a user-friendly control panel. These features ensure optimal drying performance and ease of operation.

What are the advantages of using the DW Series Belt Dryer?

The DW Series Belt Dryer offers several advantages, including high drying efficiency, uniform drying results, continuous operation, adjustable drying parameters, energy-saving operation, and easy maintenance. These benefits contribute to improved productivity and cost-effectiveness for drying processes.

Can the DW Series Belt Dryer be customized for specific drying requirements?

Yes, the DW Series Belt Dryer can be customized to meet specific drying requirements. It can be tailored in terms of belt width, drying chamber length, temperature range, airflow distribution, and control system features. This customization ensures the dryer can effectively meet the unique needs of different industries and applications.

Is the DW Series Belt Dryer suitable for heat-sensitive materials?

Yes, the DW Series Belt Dryer is designed to provide gentle drying for heat-sensitive materials. It offers precise temperature control, adjustable airflow, and a controlled drying environment to minimize the risk of overheating or damaging delicate materials during the drying process.

How can the DW Series Belt Dryer be integrated into existing production lines?

The DW Series Belt Dryer can be easily integrated into existing production lines. It can be connected to other equipment such as feeders, crushers, and packaging machines, allowing for seamless material flow and efficient production processes.

What safety features does the DW Series Belt Dryer have?

The DW Series Belt Dryer is equipped with safety features such as temperature monitoring, airflow control, emergency stop buttons, and safety interlocks. These features ensure safe operation and protect both the equipment and operators from potential risks.

Can the DW Series Belt Dryer be used for large-scale drying operations?

Yes, the DW Series Belt Dryer can be designed and manufactured for large-scale drying operations. Its modular construction allows for easy scalability, enabling the dryer to handle high volumes of material and meet the demands of large production capacities. Note: This FAQ provides general information about the DW Series Belt Dryer. For specific details and technical specifications, it is recommended to consult NOAH(yznoah@noah-pm.com).
