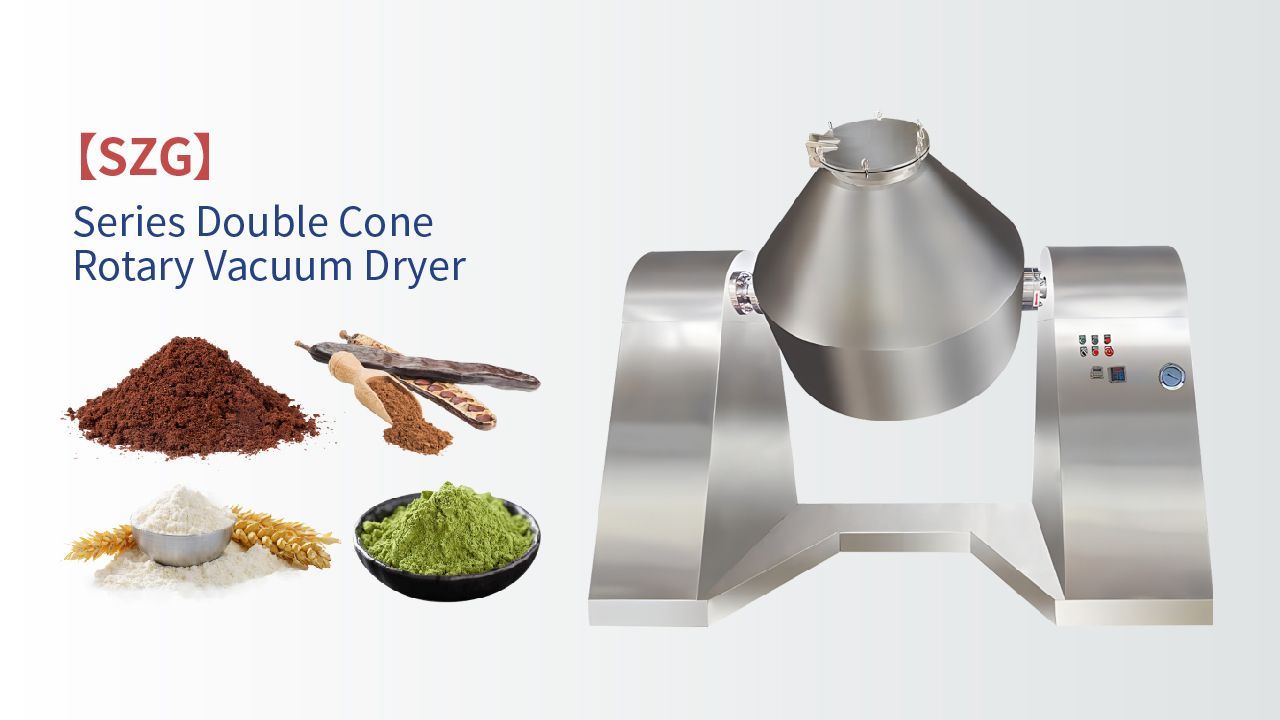

SZG Series Double Cone Rotary Vacuum Dryer
Efficiently remove moisture and accelerate drying processes with our cutting-edge drying machine, ensuring optimal product quality and productivity.
Integrated mixing and drying functions.
Energy-saving design.
GMP compliant.
Suitable for temperature-sensitive and easily oxidizable materials.
Non-destructive drying and volatile component recovery.
Indirect heating for preserving raw material purity.
Easy operation, maintenance, and cleaning.
High-speed drying with uniform and high-quality results.
Description
Applications
Suitable for materials sensitive to high temperatures.
Ideal for easily oxidizable materials.
Effective for materials that require non-destructive drying.
Used for recovering materials with residual volatile components.
Suitable for drying materials with strong irritative and toxic properties.
Widely used in biology, pharmaceutical, chemical, foodstuff, dyestuff, and biochemical industries.
Features

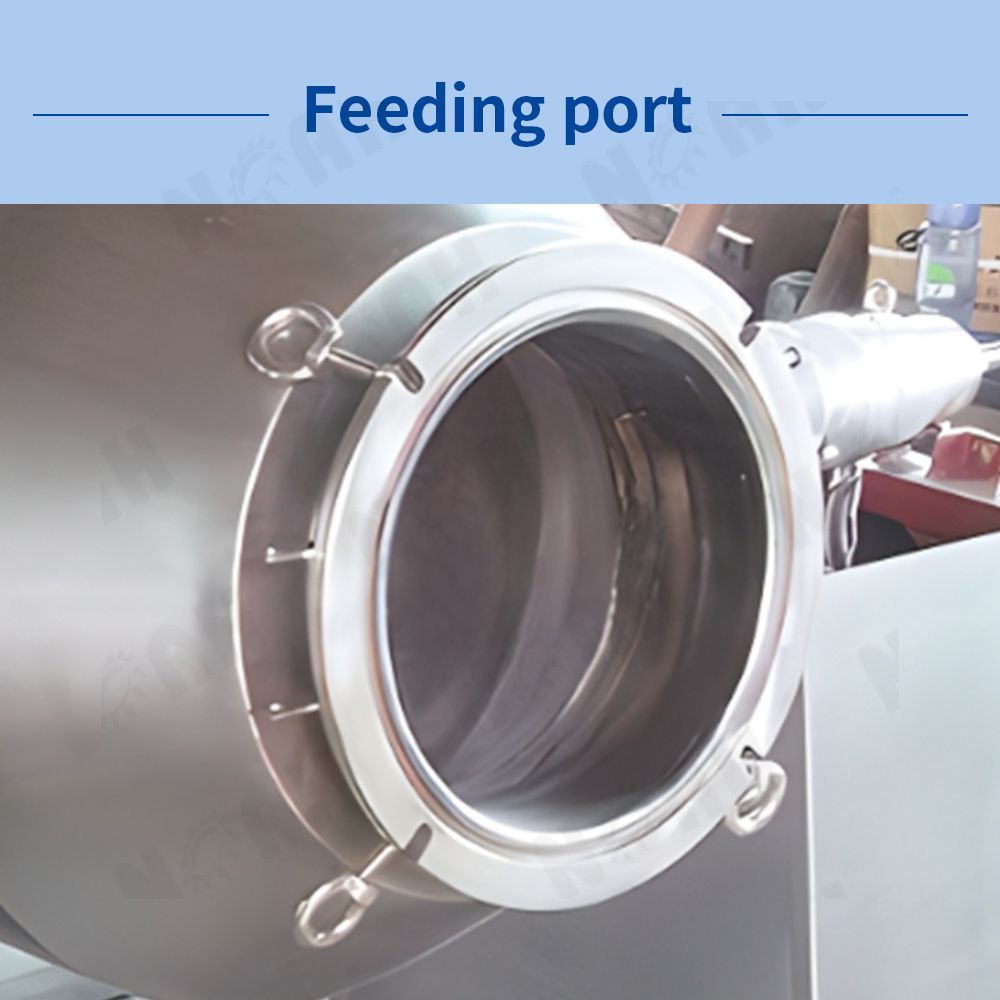

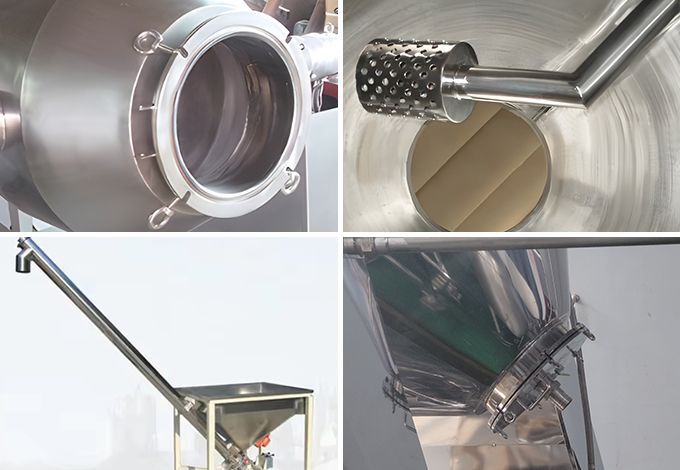

Vacuum transmission or manual feeding of powder or granules into twin cone containers.
Complex impacting motion and uniform mixing achieved through continuous container rotation.
Energy-saving, easy operation, and high work efficiency.

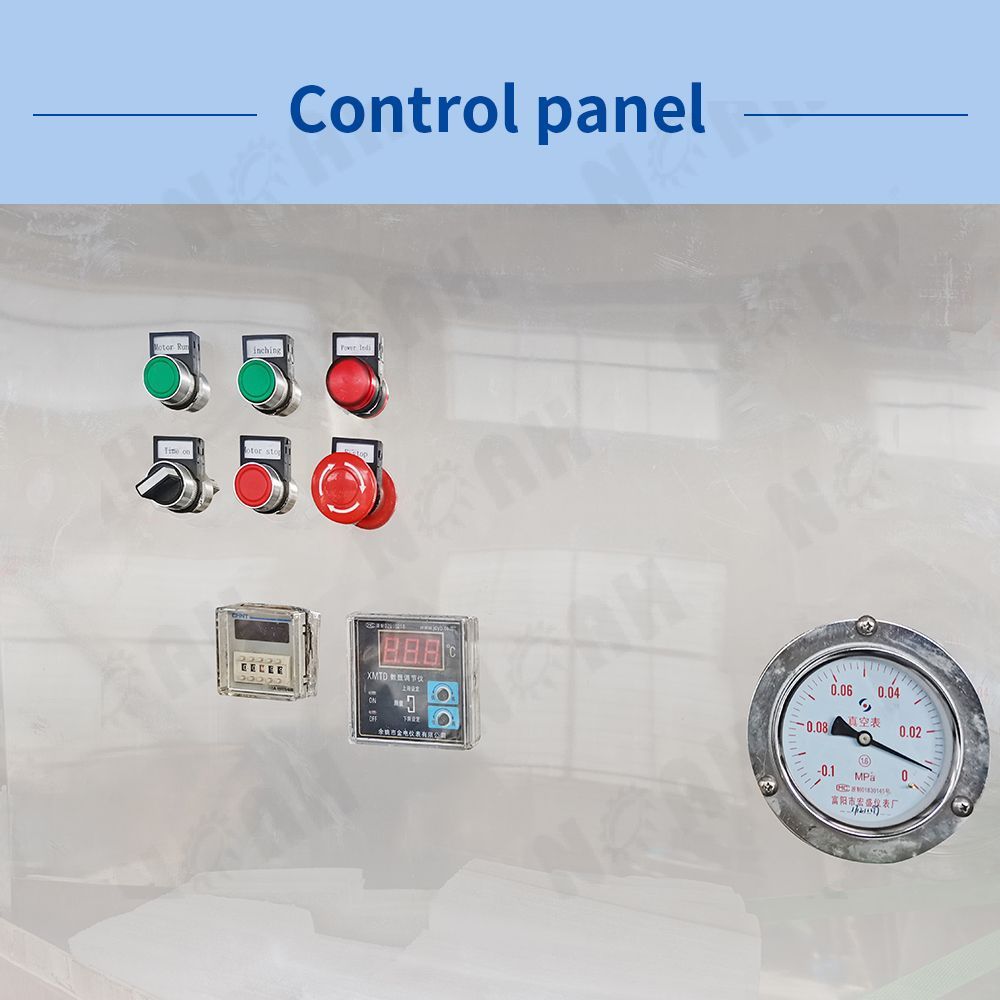

Automatic constant temperature control with a range of 20~200°C and ±2°C accuracy.
Over 2 times higher heat efficiency compared to ordinary dryers.
Indirect heating ensures no pollution of raw materials.
Easy to wash and maintain.

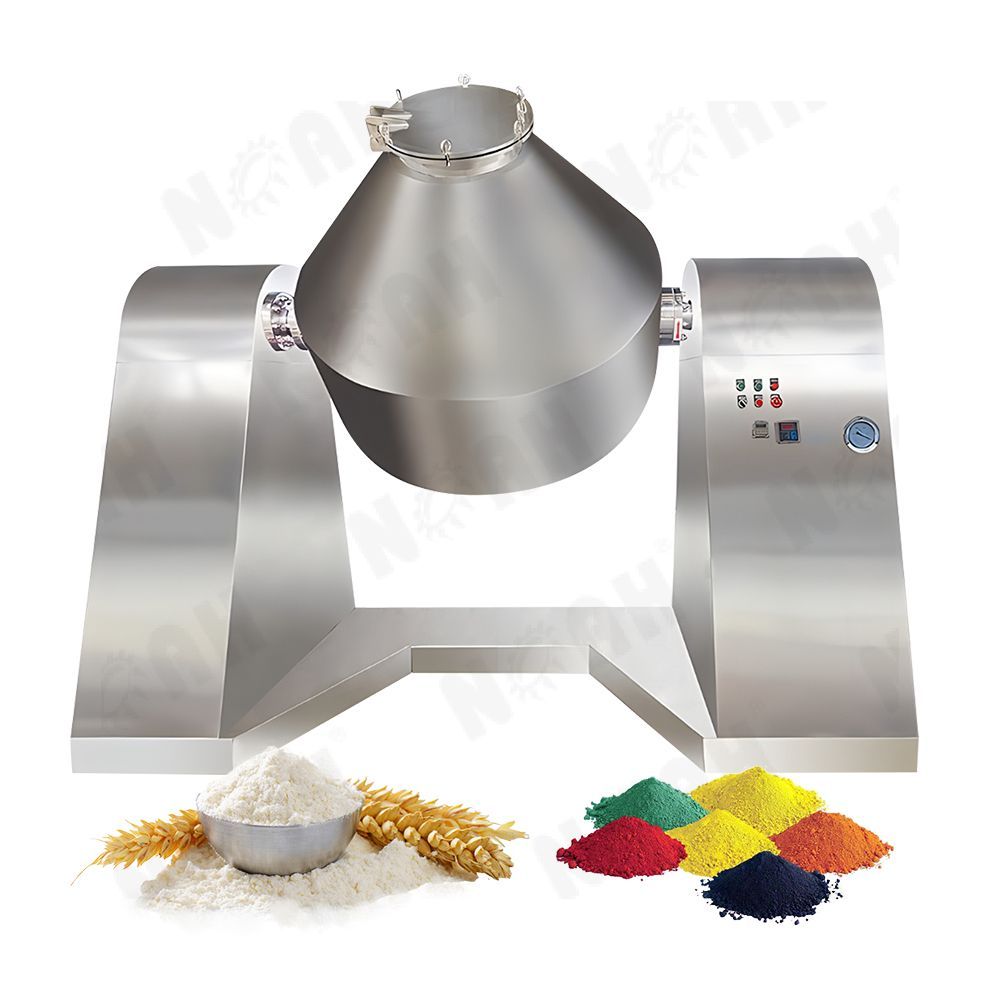

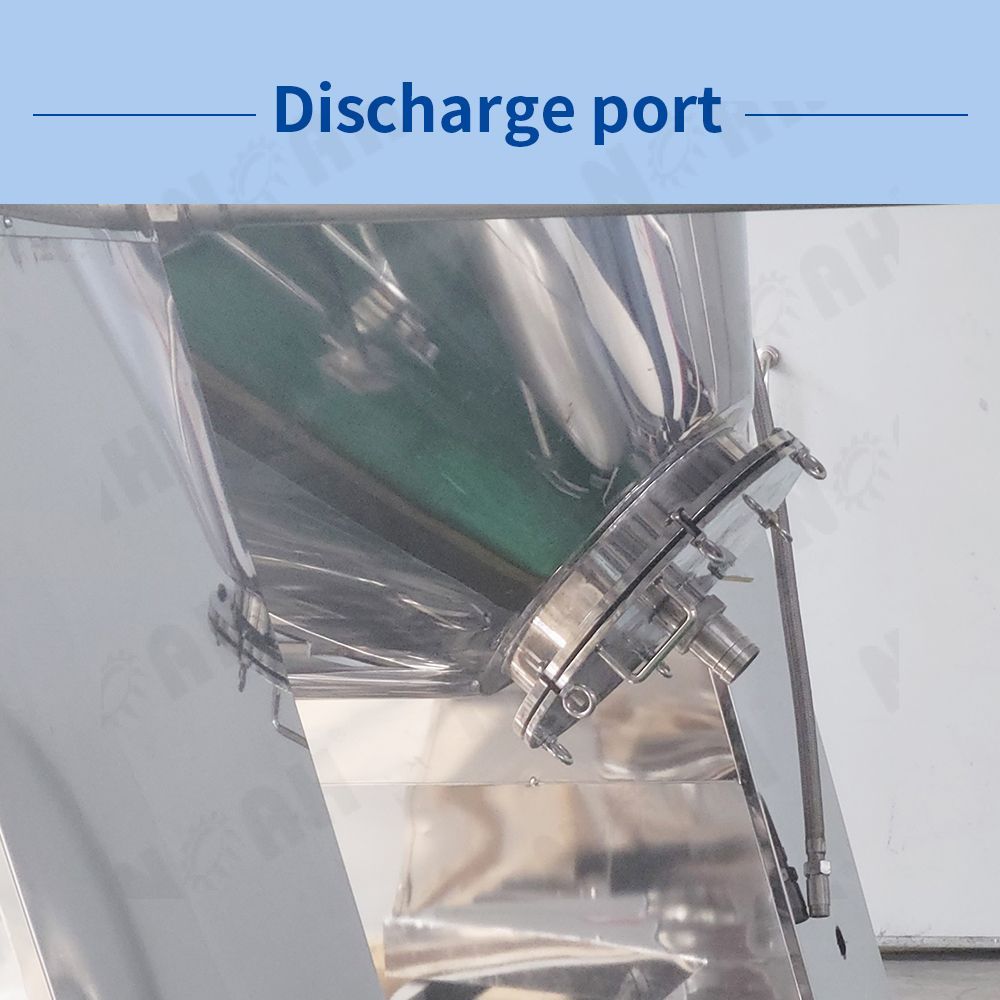

SZG Double Cone Rotary Vacuum Dryer integrates mixing and drying functions into a single unit. It features a condenser and an accumn pump, forming a vacuum drying system. The dryer has a simple and advanced design, making it easy to clean and discharge all raw materials. It offers convenient operation, reduces labor intensity, and improves the work environment. The rotating action of the container prevents accumulation of raw materials on the container walls, ensuring efficient heat transfer and fast drying while saving energy. The dryer provides uniform and high-quality drying results.
Product Video
Technical Parameters
| Model | 100 | 200 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4500 | 6000 | |
| Total volume | L | |||||||||||
| Working volume | 50 | 100 | 175 | 250 | 375 | 500 | 750 | 1000 | 1500 | 2250 | 3000 | |
| Heating area | m2 | 1.16 | 1.5 | 2 | 2.63 | 3.5 | 4.61 | 5.58 | 7.5 | 9.6 | 13.8 | 18.8 |
| Speed | r/min | 6 | 4 | |||||||||
| Power | kW | 0.8 | 1.1 | 1.5 | 2 | 3 | 4 | 5.5 | 7.5 | 11 | ||
| Height ofrotating frame | mm | 1750 | 1910 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 | 4210 | 5350 |
| Total weight | kg | 550 | 700 | 900 | 1100 | 1200 | 1300 | 1500 | 2000 | 3000 | 4000 | 5200 |
| Pressureof inside tank | MPa | -0.1~0.15 | ||||||||||
| Pressure ofinside jacket | 0.3 | |||||||||||
FAQ - Have any questions?
What is the SZG Series Double-Cone Rotary Vacuum Dryer?
The SZG Series Double Cone Rotary Vacuum Dryer is a type of drying equipment that utilizes a double cone design and vacuum technology to efficiently dry heat-sensitive materials at low temperatures while minimizing product degradation.
What types of materials can be dried using the SZG Series Double Cone Rotary Vacuum Dryer?
The SZG Series Double Cone Rotary Vacuum Dryer is suitable for drying a wide range of materials, including pharmaceuticals, chemicals, food products, and fine powders. It is particularly effective for drying heat-sensitive and easily oxidizable materials.
How does the SZG Series Double Cone Rotary Vacuum Dryer work?
The SZG Series Double Cone Rotary Vacuum Dryer operates by creating a vacuum environment inside the drying chamber. The double cone design allows for efficient mixing and drying of the materials while the vacuum lowers the boiling point of the moisture, facilitating rapid and gentle drying.
What are the key features of the SZG Series Double Cone Rotary Vacuum Dryer?
The SZG Series Double Cone Rotary Vacuum Dryer features a vacuum system, efficient heating system, adjustable drying parameters, precise temperature control, gentle drying process, easy cleaning and maintenance, and a user-friendly control panel. These features contribute to its effectiveness and ease of operation.
What are the advantages of using the SZG Series Double Cone Rotary Vacuum Dryer?
The SZG Series Double Cone Rotary Vacuum Dryer offers several advantages, including low-temperature drying, minimal product degradation, fast and uniform drying, energy efficiency, reduced drying time, and improved product quality. These benefits make it an attractive option for heat-sensitive materials.
Can the SZG Series Double Cone Rotary Vacuum Dryer handle large production volumes?
Yes, the SZG Series Double Cone Rotary Vacuum Dryer is designed to handle large production volumes. Its capacity can be customized to meet specific production requirements, allowing for efficient drying of significant quantities of materials.
Is the SZG Series Double Cone Rotary Vacuum Dryer suitable for drying sticky or cohesive materials?
Yes, the SZG Series Double Cone Rotary Vacuum Dryer is suitable for drying sticky or cohesive materials. The double cone design and efficient mixing mechanism prevent material agglomeration, ensuring effective drying of such materials.
Can the SZG Series Double Cone Rotary Vacuum Dryer be used for solvent recovery?
Yes, the SZG Series Double Cone Rotary Vacuum Dryer can be used for solvent recovery. The vacuum environment facilitates the evaporation of solvents, allowing for efficient and cost-effective solvent recovery processes.
Does the SZG Series Double Cone Rotary Vacuum Dryer offer customizable drying parameters?
Yes, the SZG Series Double Cone Rotary Vacuum Dryer provides adjustable drying parameters. Operators can control variables such as temperature, vacuum level, rotation speed, and residence time to optimize the drying process for different materials and specific drying requirements.
What safety features does the SZG Series Double Cone Rotary Vacuum Dryer have?
The SZG Series Double Cone Rotary Vacuum Dryer is equipped with safety features such as vacuum monitoring, pressure relief mechanisms, emergency stop buttons, and safety interlocks. These features ensure safe operation and protect both the equipment and operators from potential risks. Note: This FAQ provides general information about the SZG Series Double Cone Rotary Vacuum Dryer. For specific details and technical specifications, it is recommended to consult NOAH（yznoah@noah-pm.com).
