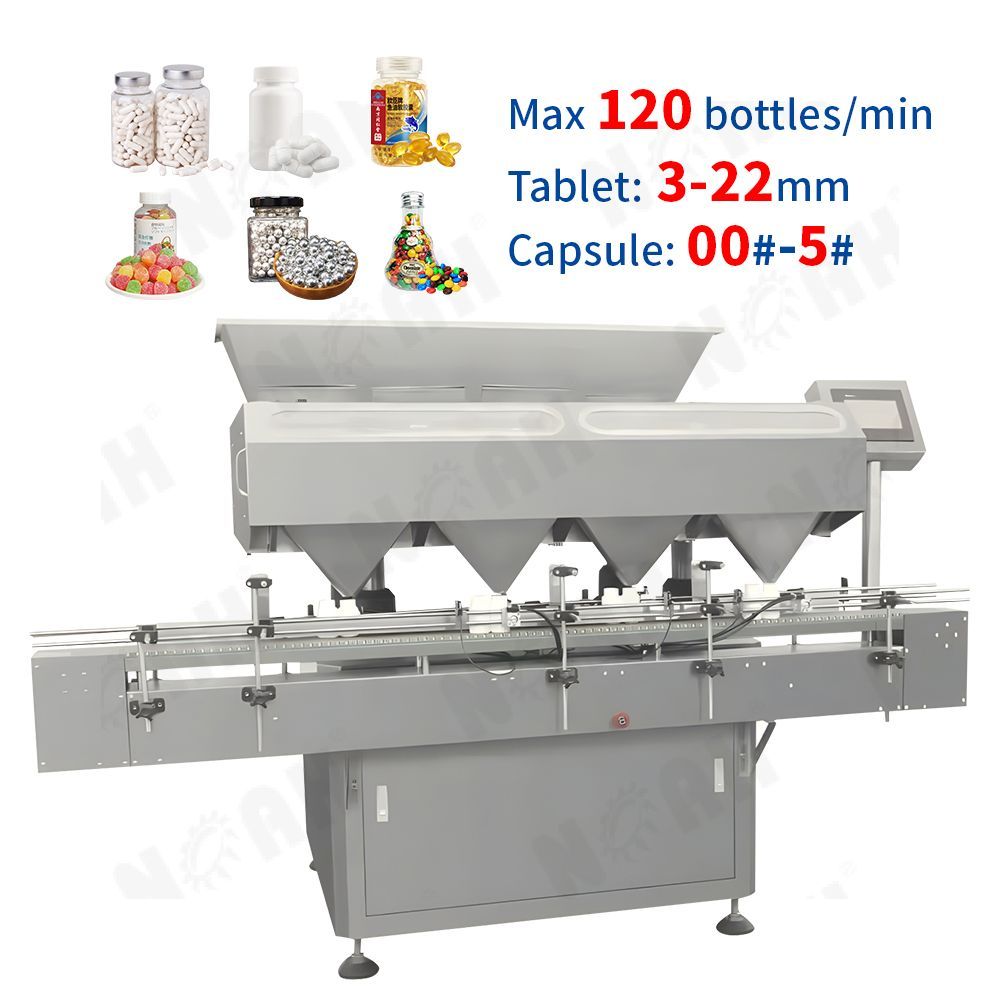

GS-32 Tablet Capsule Electronic Counter
Efficiently count and accurately fill capsules with our advanced capsule counter machine, streamlining production and ensuring dosage precision.
Wide applicability: Counts and fills various solid forms.
Accurate counting: Utilizes photoelectric sensors.
Anti-dust performance: Works reliably in dusty conditions.
High automation: Detects and removes irregularities.
Easy operation: Intuitive menu with customizable settings.
Easy maintenance: Simple cleaning and part replacement.
Supporting functions: Bottle absence detection and auto-stop.
Optional features: Special hopper and dust-proof system available.
Description
Applications
The GS-32 Tablet Capsule Electronic Counter is suitable for counting and filling tablets (including abnormal tablets), capsules, gels (including abnormal gels, transparent gels, and opaque gels), pills, and most solid granules.
Features

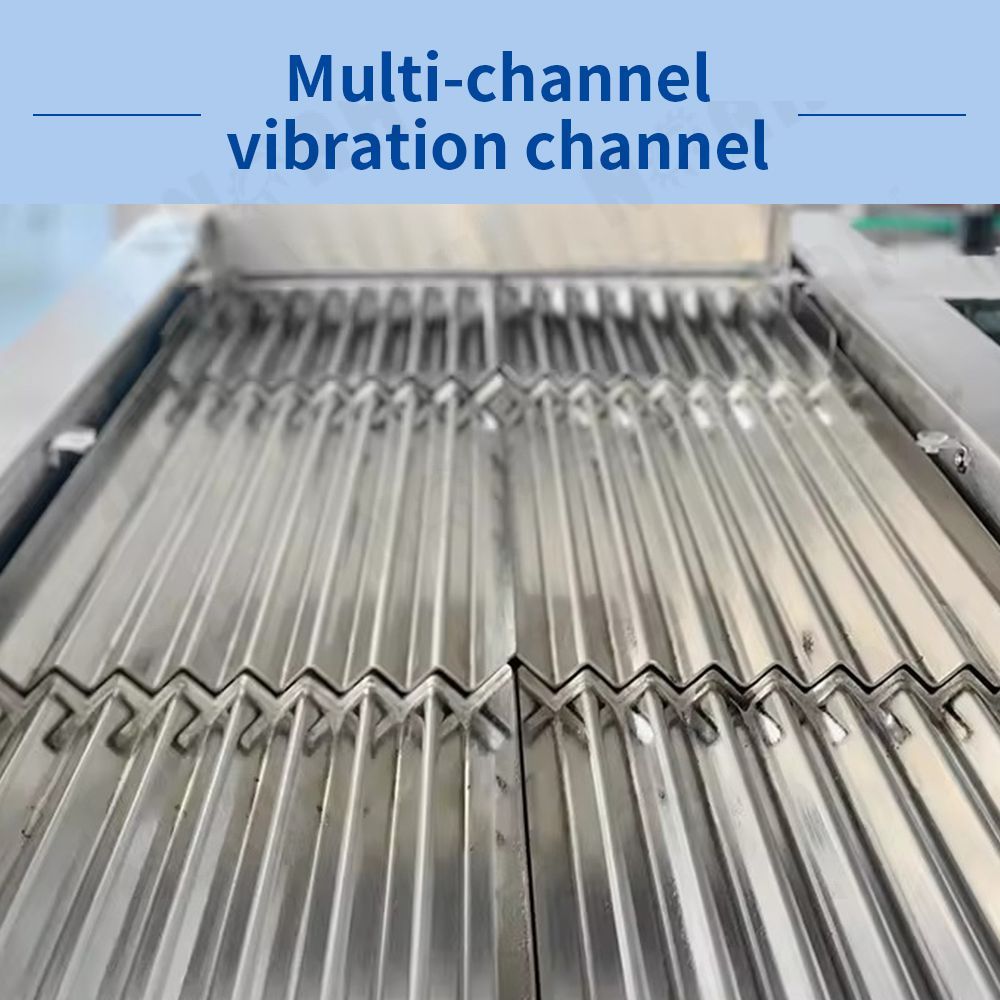

32-Tunnel Vibration Feeding: Ensures even and non-breakage feeding of materials with a special patent filling part.
Anti-Dust Technology: Works accurately and stably even in heavy dust conditions, thanks to the high anti-dust sensor technology.
Accurate Counting: Utilizes photoelectric sensor automatic counting, meeting national standards for counting accuracy.

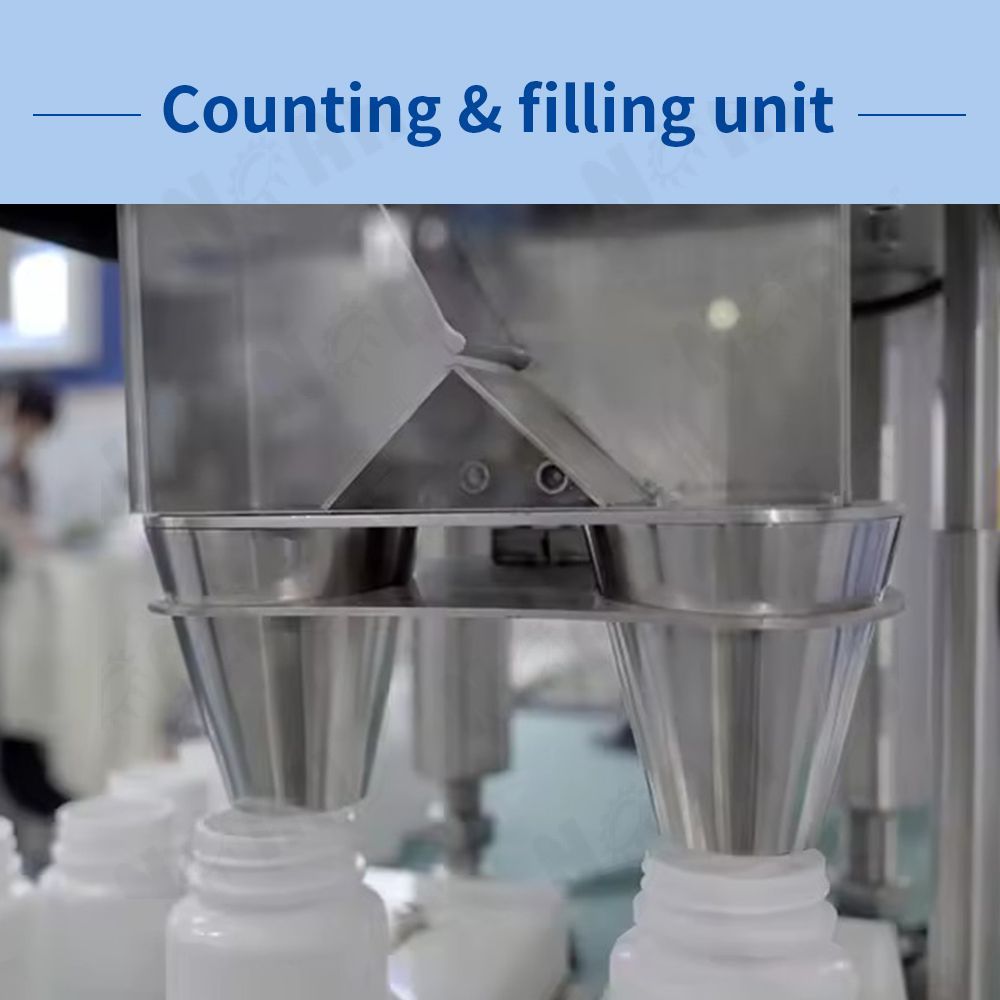

Special Hopper Structure: Prevents material jamming and enables quick bottling, even for small-mouth bottles (optional).
High Degree of Automation: Automatically detects and removes abnormal fillings, broken tablets of certain sizes, and stops working in case of errors with self-diagnosis and alarm functions.
Supporting Functions: Automatically detects the lack of bottles using a photoelectric sensor and stops operation.

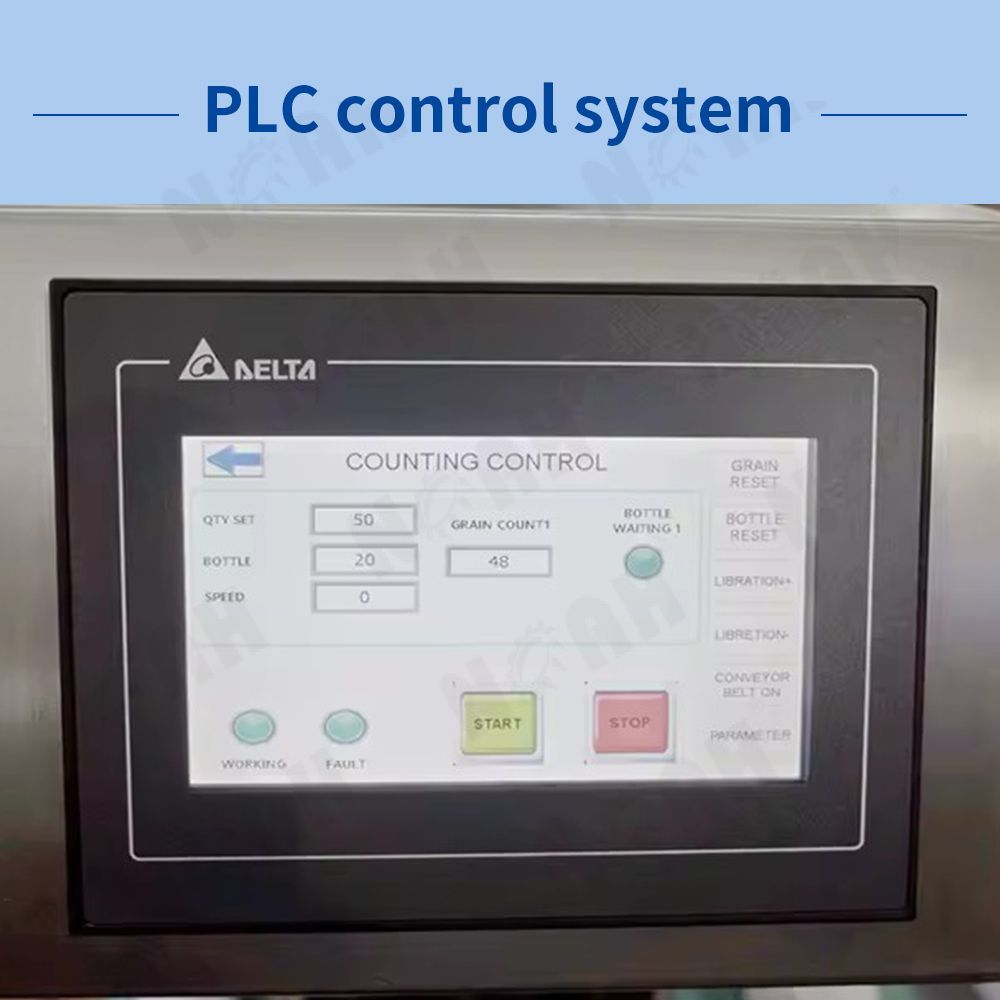

Easy Operation: Features an intelligent design with a Chinese or Chinese-English menu, allowing easy setting of various operation parameters. It can store up to 10 sets of parameters for convenience.
Easy Maintenance: Workers can easily remove, clean, and change parts without the need for tools, reducing downtime.
Sealing Dust Proof (optional): Equipped with a dust-remove box to minimize dust pollution.
The GS-32 Tablet Capsule Electronic Counter is a highly versatile machine designed for precise counting and filling of tablets, capsules, gels, pills, and solid granules. It features 32-tunnel vibration feeding and a special patent filling part to ensure even and non-breakage feeding of materials. The machine operates accurately and stably, even in heavy dust conditions, thanks to its high anti-dust sensor technology. It achieves reliable and accurate counting through photoelectric sensor automatic counting, with bottling error rates below national standards. The machine offers various supporting functions such as automatic detection of bottle absence and abnormal fillings, as well as self-diagnosis and error alarm functions. It is easy to operate, with an intelligent design and customizable operation parameters. Maintenance is simplified, with easy removal, cleaning, and part replacement procedures that require no tools. Optional features include a special hopper structure for small-mouth bottles and a sealing dust-proof system with a dust-remove box.
Specifications
| Name | GS-32 |
| Application | 00-5# capsules, soft gels, ф5.5-15 normal tablets, ф3-12 pillsspecial shape tablets, coating tablets，and some other solid granules |
| Capacity | 40～120 BPM (subject to the type and size of the bottle，as well as the quantity filled per bottle) |
| Working Range | 2-9999 |
| Power supply and consumption | 220V/50HZ 2.2kw |
| Size | 2200*1400*1680mm |
| Material | SS316+SS304 |
| Pressed Air Supply | 0.6 Mpa |
| Weight | 650kg |
| Air consumption (clean air) | 120 L/min |
| Total power | 0.6 KW |
| Power supply | AC220V 1P 50-60HZ |
| Overall dimension (L×W×H)mm | 1800×1550×1600 |
FAQ - Have any questions?
What is the purpose of the GS-32 Tablet Capsule Electronic Counter?
The GS-32 Tablet Capsule Electronic Counter is designed to accurately count tablets and capsules in the pharmaceutical and nutraceutical industries, ensuring efficient and precise packaging processes.
What types of tablets and capsules can the GS-32 counter handle?
The GS-32 Tablet Capsule Electronic Counter can handle a wide range of tablets and capsules, including various sizes, shapes, and materials.
How does the GS-32 counter achieve accurate counting?
The GS-32 utilizes advanced electronic counting technology, such as optical sensors and precise mechanisms, to ensure accurate tablet and capsule counting. It can be adjusted for different sizes and shapes to achieve optimal counting accuracy.
What is the counting speed of the GS-32 counter?
The counting speed of the GS-32 Tablet Capsule Electronic Counter can vary depending on factors such as tablet/capsule size, product characteristics, and desired throughput. It is designed for high-speed counting to maximize productivity.
Can the GS-32 counter handle fragile and delicate tablets or capsules?
Yes, the GS-32 Tablet Capsule Electronic Counter is designed to handle fragile and delicate tablets and capsules with care. It employs gentle handling mechanisms to minimize the risk of damage during the counting process.
Is the GS-32 counter suitable for small-scale or large-scale production?
The GS-32 Tablet Capsule Electronic Counter is versatile and can be used for both small-scale and large-scale production. Its adjustable counting parameters and high-speed capabilities make it suitable for a wide range of production volumes.
Does the GS-32 counter offer customization options?
Yes, the GS-32 counter often provides customization options to meet specific customer requirements. It may include adjustable counting settings, user-defined batch sizes, and integration capabilities with other packaging equipment.
What is the footprint of the GS-32 counter?
The footprint of the GS-32 Tablet Capsule Electronic Counter can vary depending on the specific model and configuration. It is designed to be compact and space-efficient, optimizing floor space in production facilities.
Is the GS-32 counter easy to operate and maintain?
Yes, the GS-32 Tablet Capsule Electronic Counter is designed for user-friendly operation. It typically features intuitive controls and a user-friendly interface, making it easy to set up and operate. Maintenance requirements are generally minimal and include routine cleaning and calibration.
Can the GS-32 counter integrate with other packaging equipment?
Yes, the GS-32 Tablet Capsule Electronic Counter can be seamlessly integrated into existing packaging lines. It is designed to connect with other equipment such as bottling machines, capping machines, or labeling systems, providing a complete packaging solution. It's important to note that specific features and capabilities of the GS-32 Tablet Capsule Electronic Counter may vary depending on the manufacturer and model.
