China Vacuum Feeder Supplier | QZC Vacuum Feeder

Description

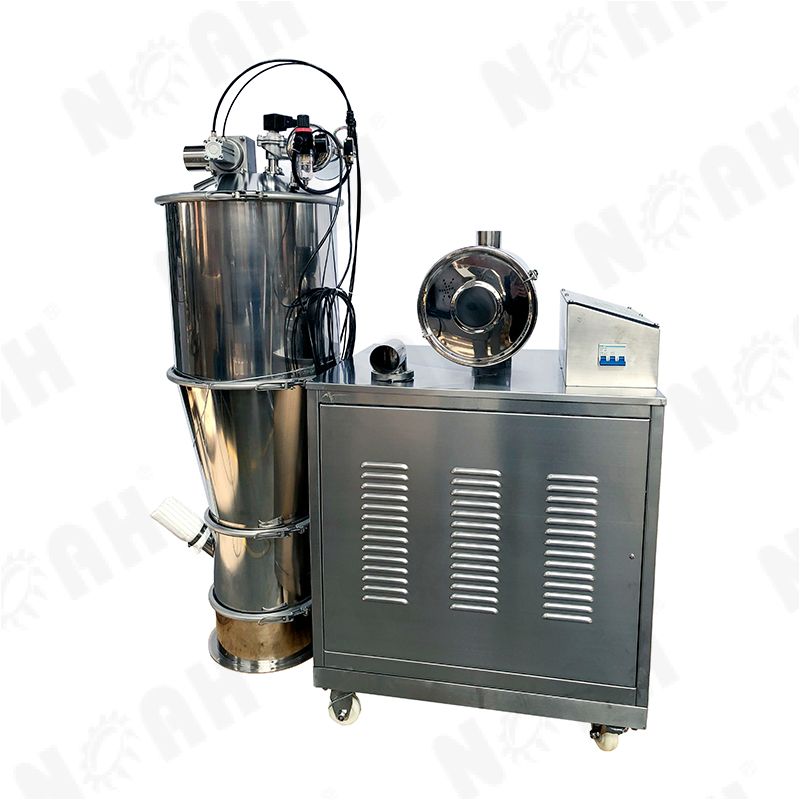

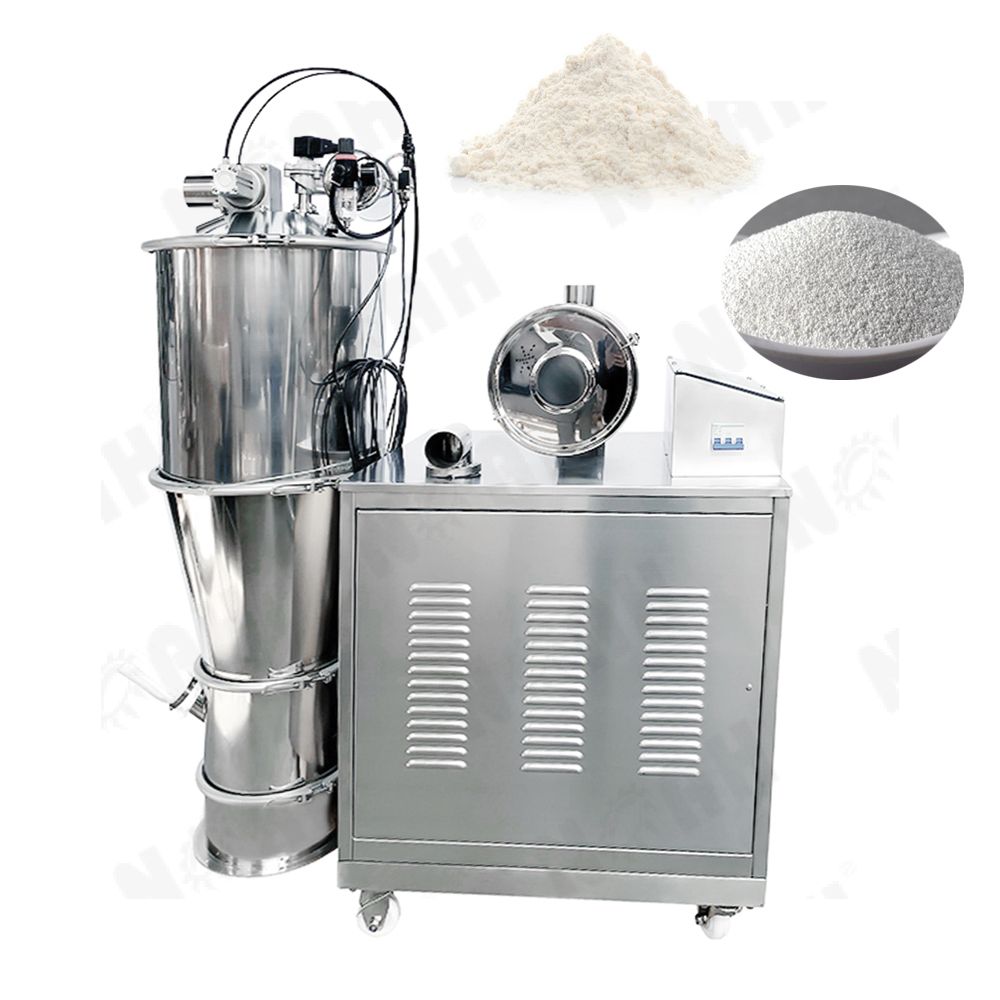

The QZC Vacuum Feeder is a highly efficient system that utilizes a vortex air pump to create a vacuum state within the suction nozzle and the entire system. This vacuum state allows powder particles to be sucked into the nozzle along with outside air, forming a material flow. The material flow then reaches the hopper through the suction tube, where gas and material separation occur. The separated material is directed into the receiving equipment. The pneumatic three-way valve controls the feeding process by continuously opening and closing, with its operation controlled by the central control center. The vacuum feeder is also equipped with a compressed air blowback device, ensuring the normal operation of the material suction by periodically dislodging powder from the filter surface.

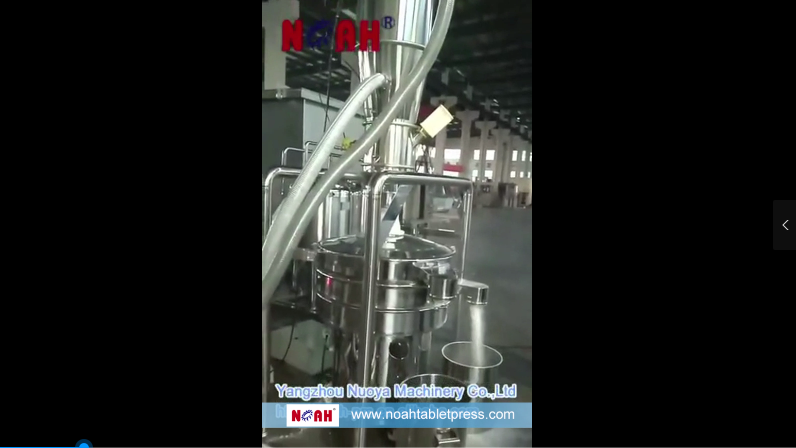

Product Video

Specifications

Types	Power(KW)	Output（KG/H）
QZC-1	1.5	400
QZC-2	2.2	600
QZC-3	3	1200
QZC-6	5.5	4000

FAQ - Have any questions?

What is a QZC Vacuum feeder?

The QZC Vacuum feeder is a specialized equipment used for conveying and transferring powdered or granular materials using a vacuum system.

What are the main components of a QZC Vacuum feeder?

The main components of a QZC Vacuum feeder typically include a vacuum pump, a conveying pipeline, a material hopper, a control system, and various safety features.

What types of materials can be conveyed using a QZC Vacuum feeder?

QZC Vacuum feeders are designed to handle a wide range of materials, including powders, granules, pellets, and other bulk solids.

What industries commonly use QZC Vacuum feeders?

QZC Vacuum feeders are widely used in industries such as pharmaceuticals, food processing, chemical manufacturing, plastic processing, and other sectors that require efficient material handling.

How does a QZC Vacuum feeder work?

The QZC Vacuum feeder operates by creating a negative pressure or vacuum in the conveying pipeline, which effectively pulls the material from the hopper into the pipeline and transports it to the desired destination.

What are the advantages of using a QZC Vacuum feeder?

Some advantages of using a QZC Vacuum feeder include dust-free operation, precise material transfer, reduced manual handling, improved safety, and increased productivity.

Can a QZC Vacuum feeder handle materials with different flow properties?

Yes, QZC Vacuum feeders are designed to handle materials with various flow properties, such as free-flowing, cohesive, or difficult-to-handle powders.

Is it possible to control the conveying speed of a QZC Vacuum feeder?

Yes, QZC Vacuum feeders are equipped with control systems that allow operators to adjust the conveying speed according to the specific requirements of the application.

Are QZC Vacuum feeders easy to clean and maintain?

Yes, QZC Vacuum feeders are designed for easy cleaning and maintenance. They often feature quick-release components and easy access for cleaning and inspection purposes.

Can a QZC Vacuum feeder be customized to meet specific requirements?

Yes, QZC Vacuum feeders can be customized to meet specific requirements, including material properties, conveying distances, capacity, and other application-specific needs. NOAH often provide customization options to tailor the equipment to the customer's specifications.

Investment Return Analysis for QZC Vacuum Feeder:

The QZC Vacuum Feeder is a promising investment with strong growth prospects. Here is an analysis of the potential returns on investment:

Growing Market Demand: The market demand for efficient material feeding solutions is increasing across various industries, such as pharmaceuticals, chemicals, and food processing. This presents a significant growth opportunity for the QZC Vacuum Feeder.

Cost Savings and Efficiency Gains: By automating the material feeding process, the QZC Vacuum Feeder can significantly reduce manual labor and improve production efficiency. This leads to cost savings in terms of labor costs and increased throughput, resulting in a higher return on investment.

Competitive Advantage: The QZC Vacuum Feeder offers advanced features such as vortex air pump technology, material and gas separation, and precise control through a pneumatic three-way valve. These features provide a competitive edge in the market, attracting more customers and driving sales growth.

Versatility and Adaptability: The QZC Vacuum Feeder is suitable for a wide range of powders and granular materials, making it versatile and adaptable to different production needs. This expands its potential customer base and revenue opportunities.

Enhanced Operational Efficiency: The centralized control center enables easy operation and monitoring, increasing operational efficiency and reducing potential errors or downtime. This leads to improved productivity and further cost savings.

Long-Term Cost Benefits: The QZC Vacuum Feeder is designed for easy maintenance and filter replacement, reducing downtime and maintenance costs over the long term. This contributes to sustainable cost benefits and a higher return on investment.

Market Expansion Opportunities: As the QZC Vacuum Feeder gains traction in its target industries, there may be opportunities for market expansion into new geographies or verticals. This can lead to additional revenue streams and increased profitability.

Considering the strong market demand, cost savings, competitive advantages, and potential for market expansion, the QZC Vacuum Feeder offers a promising investment opportunity with the potential for significant returns on investment.
