FLG Solid Preparation Granulation Unit | Solid Dosage Granulation

Description

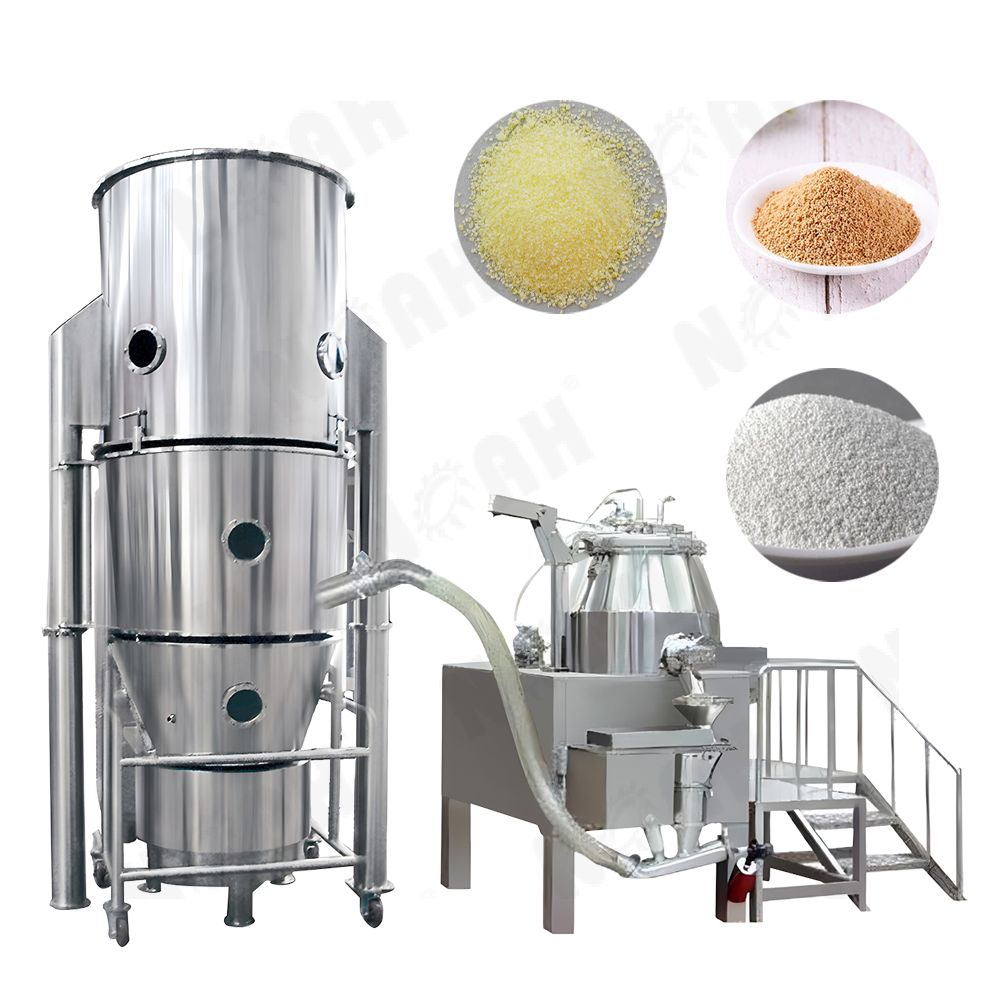

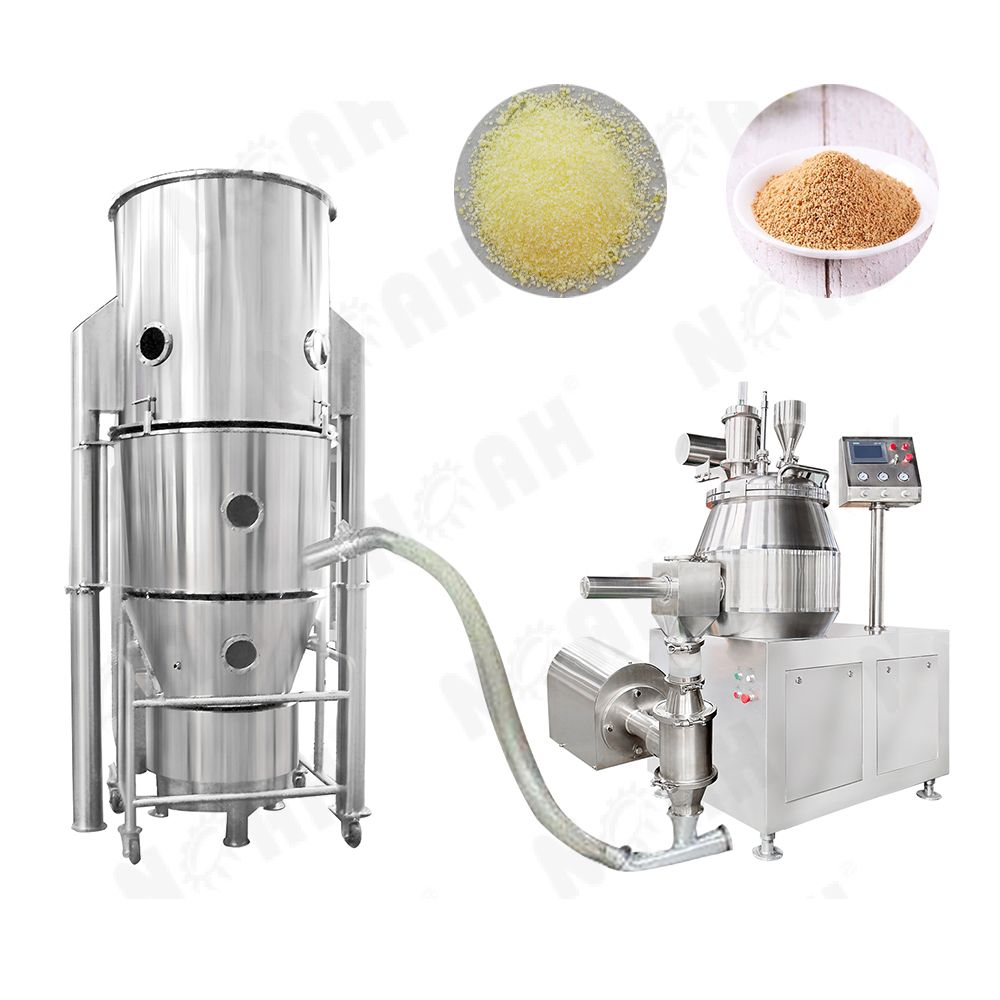

The FLG Solid Preparation Granulating Unit is a highly advanced and efficient equipment specifically designed for the production of solid preparations. It combines wet granulation, boiling drying granulation, and wet granule regulation to create a complete production line. The unit is equipped with PLC intelligent control, offering a high degree of automation and ensuring easy operation and maintenance. It features an automatic sealing type feeding and unloading system, along with a pipeline connection and clamp type connection, making material transfer convenient and efficient. The machine body is constructed with full stainless steel, meeting hygiene standards and providing durability. The parts in contact with the material are also made of stainless steel, accommodating various types of materials.

Product Video

Specifications

MachineName	SpecificationItem		FL-120	FL-200	FL-300	FL-500
Fluid-Bedgranulatordryer	Capacity	KG/batch	120	200	300	500
	Container	L	420	670	1000	1500
	Dia	mm	1200	1400	1600	1800
	Power of fan	KW	18.5	22	30	45
	Pressure of steam	Mpa	0.4-0.6
	Consumption of steam	KG/h	140	180	310	400
	Pressure of compressed air	Mpa	0.4-0.6
	Consumption of compressed air	M3/min	0.9	1.1	1.1	1.5
	Working temperature	℃	Normal temperature-120℃ could adjust
High Efficient Wet Granulator	Model		HLSG100	HLSG200	HLSG300
	Bowl Volume Litre	L	100	200	300
	Max Material Charge Amount kg/batch	KG	40	80	100-130
	Mixing Power	kw	7.5	11	13
	Mixing Speed r/min	r/min	270/180	270/180	160/110
	Net weight	kg	500	850	1200
Integral Unit	Model		Overall Dimensions（LxHxW）（mm)
	FL-120/HLSG-200		4000x2000x4500
	FL-200/HLSG-300		5000x2500x5000

FAQ - Have any questions?

What is the FLG Solid Preparation Granulation Unit?

The FLG Solid Preparation Granulation Unit is a specialized equipment used for the granulation of solid materials in the pharmaceutical and chemical industries. It is designed to transform powders and other solid ingredients into granules for easier handling and processing.

What are the key components of the FLG Solid Preparation Granulation Unit?

The FLG Solid Preparation Granulation Unit typically consists of a high-speed mixer, a granulator, a drying system, and a control panel. These components work together to facilitate the granulation process.

How does the FLG Solid Preparation Granulation Unit work?

The FLG Solid Preparation Granulation Unit operates by blending the solid materials in the high-speed mixer, followed by granulation in the granulator using a binder solution. The granules are then dried in the drying system to achieve the desired moisture content.

What types of materials can the FLG Solid Preparation Granulation Unit handle?

The FLG Solid Preparation Granulation Unit is suitable for handling a wide range of solid materials, including pharmaceutical powders, chemical compounds, and food additives. It can accommodate different particle sizes and formulations.

What are the advantages of using the FLG Solid Preparation Granulation Unit?

The FLG Solid Preparation Granulation Unit offers several advantages, including uniform granule size distribution, enhanced flow properties, improved compressibility, reduced dust formation, and better product stability. These benefits contribute to the overall quality and efficiency of solid preparation processes.

Can the FLG Solid Preparation Granulation Unit be customized for specific requirements?

Yes, the FLG Solid Preparation Granulation Unit can be customized to meet specific process requirements. Customization options may include equipment size, capacity, material contact parts, and control system features.

What are the maintenance requirements for the FLG Solid Preparation Granulation Unit?

The FLG Solid Preparation Granulation Unit requires regular maintenance, including cleaning, lubrication, and inspection of key components. Adhering to the manufacturer's maintenance guidelines and schedules ensures optimal performance and prolongs the equipment's lifespan.

Is the FLG Solid Preparation Granulation Unit compliant with industry regulations?

Yes, the FLG Solid Preparation Granulation Unit is designed and manufactured to comply with relevant industry regulations and standards, such as Good Manufacturing Practices (GMP) for pharmaceutical production. It meets the necessary guidelines for product quality and safety.

Can the FLG Solid Preparation Granulation Unit integrate with other equipment in the production line?

Yes, the FLG Solid Preparation Granulation Unit can be seamlessly integrated into existing production lines. It can be connected to downstream equipment such as tablet presses, encapsulation machines, or packaging lines, ensuring a smooth and efficient production process.

How can I obtain technical support and spare parts for the FLG Solid Preparation Granulation Unit?

Technical support and spare parts for the FLG Solid Preparation Granulation Unit can be obtained by contacting NOAH（yznoah@noah-pm.com. We will provide the necessary assistance, troubleshooting, and supply of genuine spare parts to ensure optimal performance and longevity of the equipment.
