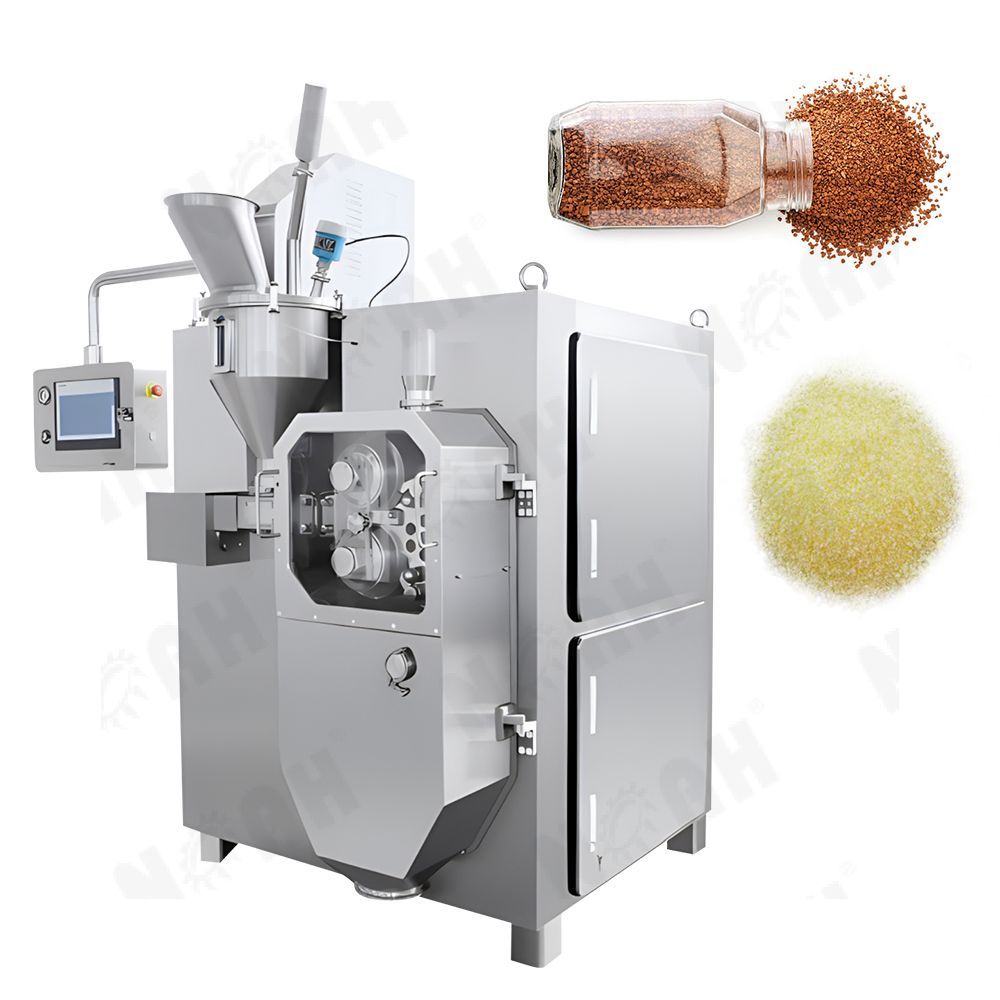

LG Series Dry Pelletizer/LG Series Dry Granulator
Transform materials into uniform granules effortlessly with our high-performance granulating machine.
Direct dry extrusion and grain forming.
Efficient cooling system.
Anti-caking design.
Effective powder elimination.
Crushing and granulating system.
Sealed stainless steel housing.
Versatile screw stem options.
Convenient oil lubrication for bearings.
Description
Applications
The machine is suitable for occasions where direct dry extrusion and grain forming are required using the self-contained crystal water in the raw material. It finds applications in pharmaceutical, chemical, and food production.
Features
Cooling System: The extrusion heat is efficiently cooled by a cooling water producer.
Anti-Caking Design: The surface of the extruding roller is specially designed and processed to prevent caking.
Effective Powder Elimination: The side seal structure and reasonable scraper bar structure effectively eliminate fine powder accumulation at the side of the running roller.

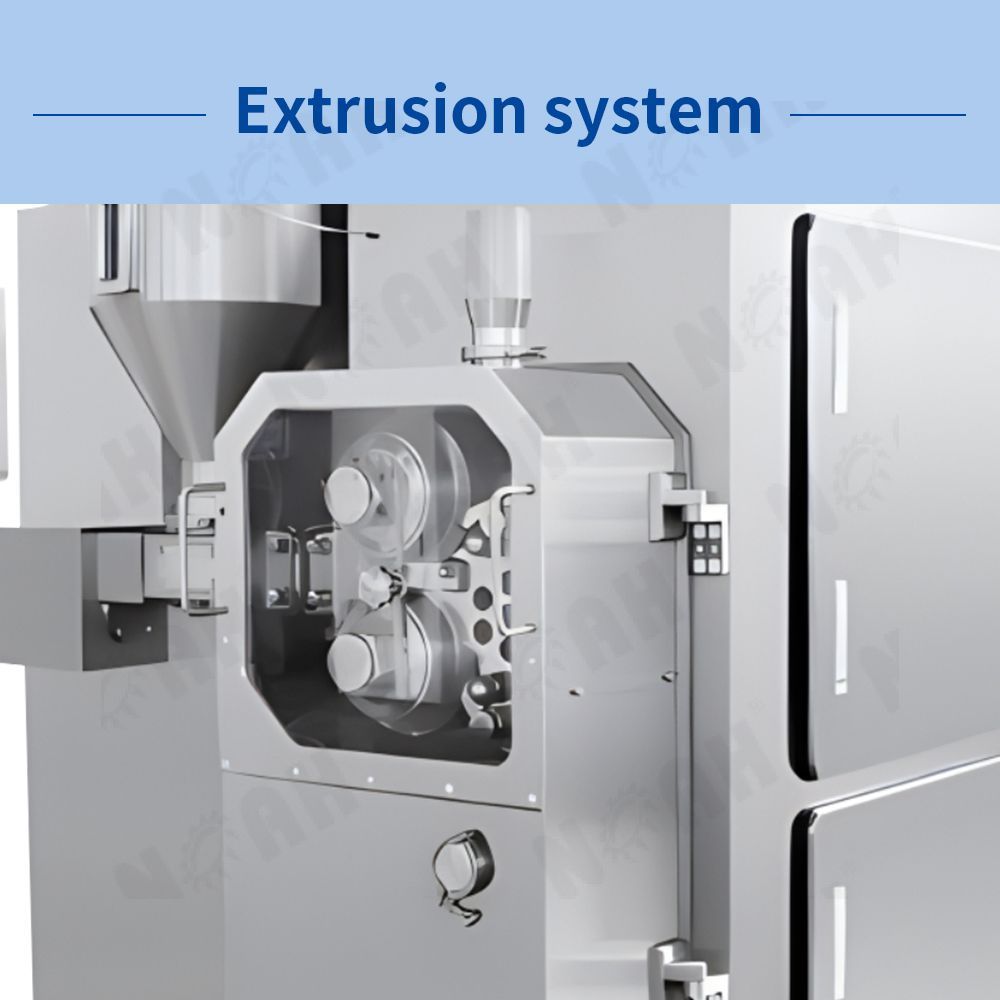

Crushing and Granulating System: The machine employs a crushing system and two pairs of roller granulating mechanisms. It ensures the coordination of material feeding and discharging, resulting in the production of ideal grains. The system is enclosed in a sealed stainless steel housing to prevent flying dust in the operation room.
Screw Stem Options: Depending on the material requirements, the machine offers a choice of profiled non-equal-distance screw stem, nylon screw stem, or stainless steel screw stem.
Oil Lubrication: The machine uses oil lubrication for bearings of principal axes, eliminating the need for frequent assembly and disassembly.
Convenient Structure: The reasonable housing structure allows for easy assembly, disassembly, and internal cleaning, meeting the GMP verification requirements.
The LG Series Dry Pelletizer/LG Series Dry Granulator utilizes the principle of direct dry extrusion and grain forming using the self-contained crystal water in the raw material. The machine features a cooling system to efficiently cool the extrusion heat. Its specially designed extruding roller surface prevents caking, while the side seal structure and scraper bar effectively eliminate fine powder accumulation. The crushing and granulating system, along with the sealed stainless steel housing, ensures the production of ideal grains while minimizing dust in the operation room. The machine offers options for different screw stem materials based on specific material requirements. With oil lubrication for bearings, it eliminates the need for frequent assembly and disassembly. The convenient housing structure allows for easy maintenance and internal cleaning, complying with GMP verification requirements.
Main Technical Specifications
| Model | LG25 | LG-50 | LG-100 |
| Roller size（mm） | Φ80×25 | Φ150×50 | Φ200×100 |
| Output（kg/h） | 1～5 | 10～40 | 30～100 |
| Roller speed（rpm） | 0～18 | 0～33 | 0～33 |
| Screw speed（rpm） | 0～60 | ||
| Granulating speed（rpm） | 0～600 | 0～377 | 0～268 |
| Fineness（mm） | 0.8～1.5 | ||
| Roller Pressure（MPa） | 0～7 | 0～7 | 0～7 |
| Total power（KW） | 2.63 | 5.62 | 11.15 |
| Dimension（mm） | 750×650×1350 | 1020×800×700 | 1500×1050×2050 |
| Weight（kg） | 200 | 1000 | 2500 |
FAQ - Have any questions?
What is the LG Series Dry Pelletizer/LG Series Dry Granulator used for?
The LG Series Dry Pelletizer/LG Series Dry Granulator is used for dry granulation and pelletization of various materials in industries such as pharmaceuticals, chemicals, and food processing.
How does the LG Series Dry Pelletizer/LG Series Dry Granulator work?
The LG Series Dry Pelletizer/LG Series Dry Granulator operates by compressing dry powder or granules between two rotating rolls, resulting in the formation of compacted granules or pellets.
What are the key features of the LG Series Dry Pelletizer/LG Series Dry Granulator?
The key features of the LG Series Dry Pelletizer/LG Series Dry Granulator include twin roller compaction, adjustable processing parameters, high compaction force, precise control over granule size, and the ability to produce uniform and dense granules.
What types of materials can be processed with the LG Series Dry Pelletizer/LG Series Dry Granulator?
The LG Series Dry Pelletizer/LG Series Dry Granulator can process a wide range of materials, including powders, granules, and solid particles in industries such as pharmaceuticals, chemicals, and food processing.
What is the advantage of using a dry pelletizer/granulator over other granulation methods?
The advantage of using a dry pelletizer/granulator like the LG Series is its ability to produce granules or pellets without the need for liquid binders or solvents, resulting in reduced drying time and improved stability of the final product.
Can the LG Series Dry Pelletizer/LG Series Dry Granulator handle heat-sensitive materials?
Yes, the LG Series Dry Pelletizer/LG Series Dry Granulator can handle heat-sensitive materials due to its gentle and controlled compaction process, minimizing heat generation.
What is the capacity range of the LG Series Dry Pelletizer/LG Series Dry Granulator?
The capacity of the LG Series Dry Pelletizer/LG Series Dry Granulator varies depending on the model and specific application, ranging from small-scale laboratory units to large-scale production systems.
Is the LG Series Dry Pelletizer/LG Series Dry Granulator suitable for continuous or batch operation?
The LG Series Dry Pelletizer/LG Series Dry Granulator can be used for both continuous and batch operation, providing flexibility to match different production requirements.
Can the granule size be adjusted with the LG Series Dry Pelletizer/LG Series Dry Granulator?
Yes, the LG Series Dry Pelletizer/LG Series Dry Granulator allows for adjustable processing parameters such as roll speed, roll gap, and feed rate, enabling control over the granule size and density.
Is the LG Series Dry Pelletizer/LG Series Dry Granulator easy to clean and maintain?
Yes, the LG Series Dry Pelletizer/LG Series Dry Granulator is designed for easy cleaning and maintenance. It features a user-friendly design with accessible parts, facilitating efficient cleaning and routine maintenance tasks.
