Rotary Tablet Press

LSP-50 Single Punch Tablet Press

Elevate your tablet production with our advanced tablet press solutions.

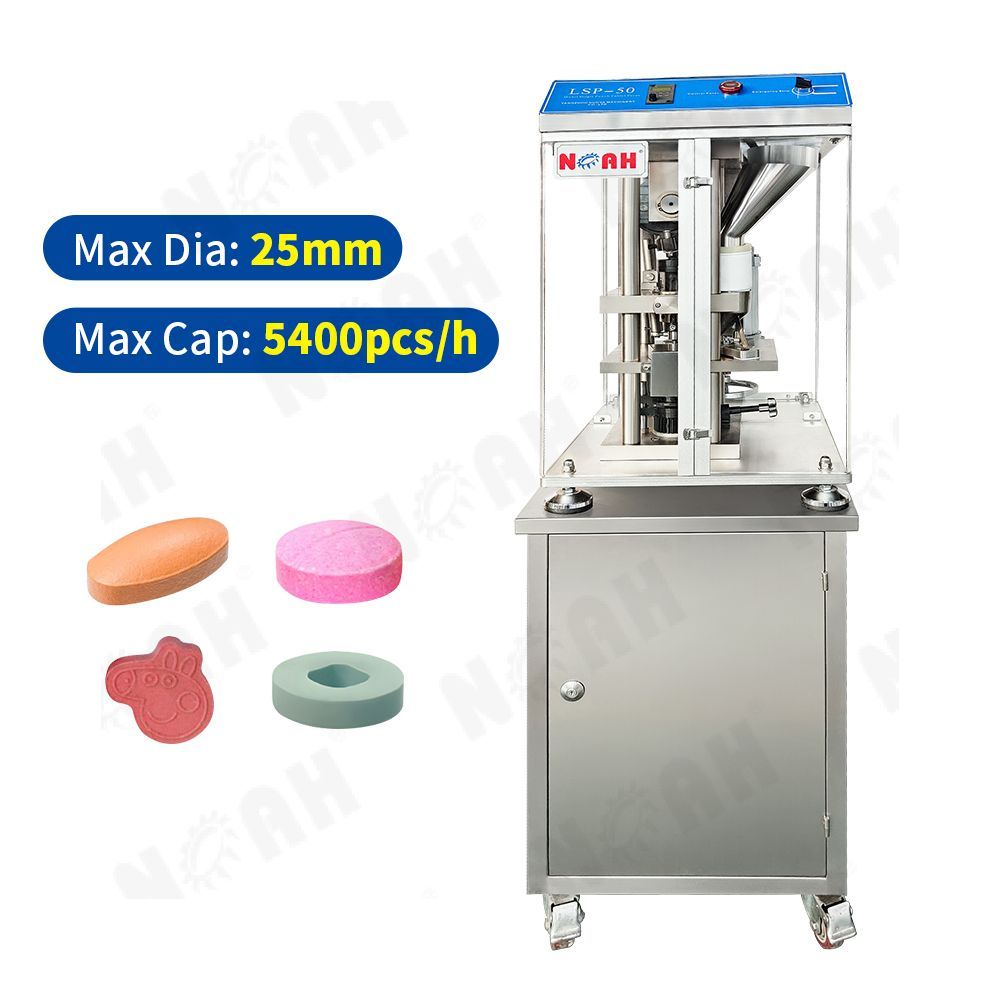

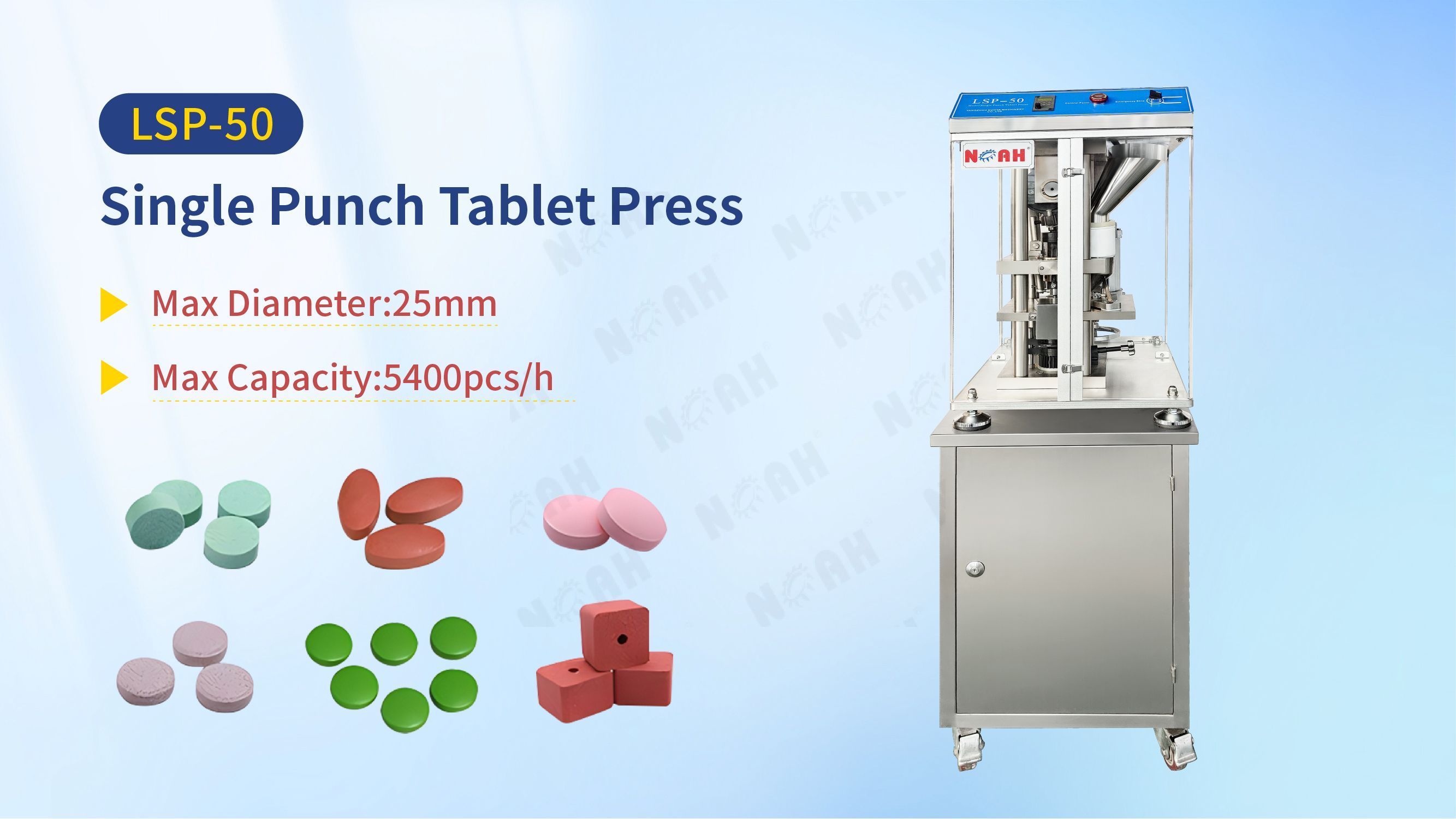

LSP-50 Single Punch Tablet Press

  • Compact and portable

  • Versatile tablet shapes

  • Simple operation

  • Adjustable tablet thickness

  • Durable construction

  • Cost-effective

  • Wide range of applications

  • Reliable performance


Description

single punch tablet machine

Applications

Pharmaceuticals: The LSP-50 Single Punch Tablet Press is widely used in the pharmaceutical industry for the production of small-batch tablets, such as herbal remedies, nutritional supplements, and specialized medication formulations.

Herbal and Nutraceuticals: This tablet press is suitable for manufacturing tablets made from herbal extracts, vitamins, minerals, and other nutraceutical ingredients.

Cosmetics: The LSP-50 can also be utilized in the cosmetics industry for the production of compressed powder products like pressed eyeshadows, blushes, and powders.


single punch tablet press

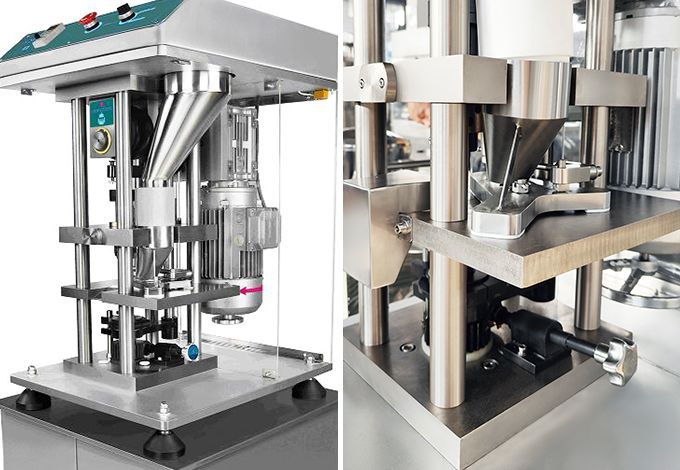

Features

LSP-50 is compact, user-friendly, and durable. It operates with a single punch mechanism for precise tablet compression. With adjustable parameters, it allows customization for specific product requirements. The machine incorporates safety features and enables quick changeovers, making it a cost-effective solution for small-scale tablet production.

The machine structure is rational and small, it's very easy to operate, and the machine operates at a high utilization ratio.

The machine is capable of utilizing a high amount of pressure to reduce the weight difference between the tablets while maintaining a low noise level. The machine also provides continuous control over the loading of the raw materials, and the thickness of the tablet. Every function of this machine can be compared favorably with the imported machines.



Product Video

Single punch tablet press machine

Specifications

Stations Number (set)LSP-50ALSP-50BLSP-50C
Maximum Tablet Diameter (mm)25107
Output (tablets/min)306090
Maximum Pressure (KN)50
Deep of Fill (mm)20
Upper Punch Penetration (mm)0.5-8
Electrical220V/380V, 50Hz 1.5KW/220V 60Hz
Dimensions(mm)580*500*830
Net Weight(kg)185


FAQ - Have any questions?

What is the production capacity of the LSP-50 Single Punch Tablet Press?

The production capacity varies based on the tablet size and specifications, but it typically ranges from [specific capacity] tablets per hour.

Can this machine handle tablets of various sizes and shapes?

The LSP-50 offers versatility, allowing production of tablets in different sizes and shapes to accommodate diverse pharmaceutical needs.

How precise is the tablet compression achieved by this press?

The LSP-50 ensures accurate tablet compression through its advanced mechanisms, maintaining uniformity and quality.

Does the LSP-50 Single Punch Tablet Press provide options for tablet customization?

Yes, it offers adaptable tooling options, enabling customization of tablet imprints and designs according to specific requirements.

Is the LSP-50 compliant with industry standards for pharmaceutical manufacturing?

Absolutely, it adheres strictly to industry standards such as Good Manufacturing Practices (GMP), ensuring high-quality and compliant production.

What types of pharmaceutical formulations can this press handle?

It's designed to handle a wide array of pharmaceutical formulations, making it suitable for various tablet production needs.

Is the operation of the LSP-50 Single Punch Tablet Press user-friendly?

Yes, the machine is equipped with intuitive controls and interfaces, ensuring ease of operation for technicians and operators.

What safety features are integrated into this machine?

The LSP-50 includes comprehensive safety features ensuring operator safety during the entire operational process.

Does this machine come with technical support and training?

Yes, technical support and training are provided to ensure optimal operation and efficiency of the machine.

How durable is the LSP-50 Single Punch Tablet Press for continuous production cycles?

The LSP-50 is constructed with durable materials, ensuring reliability and stability even during continuous and demanding production schedules.
