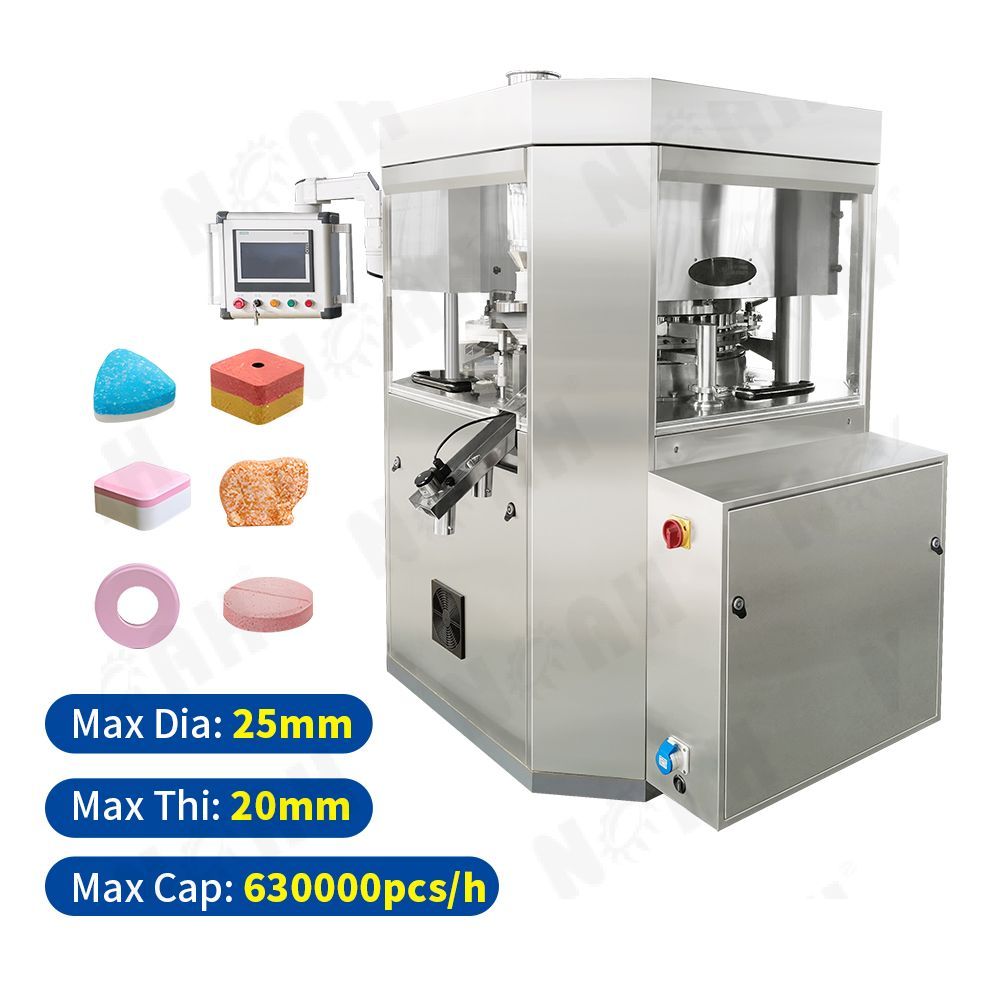

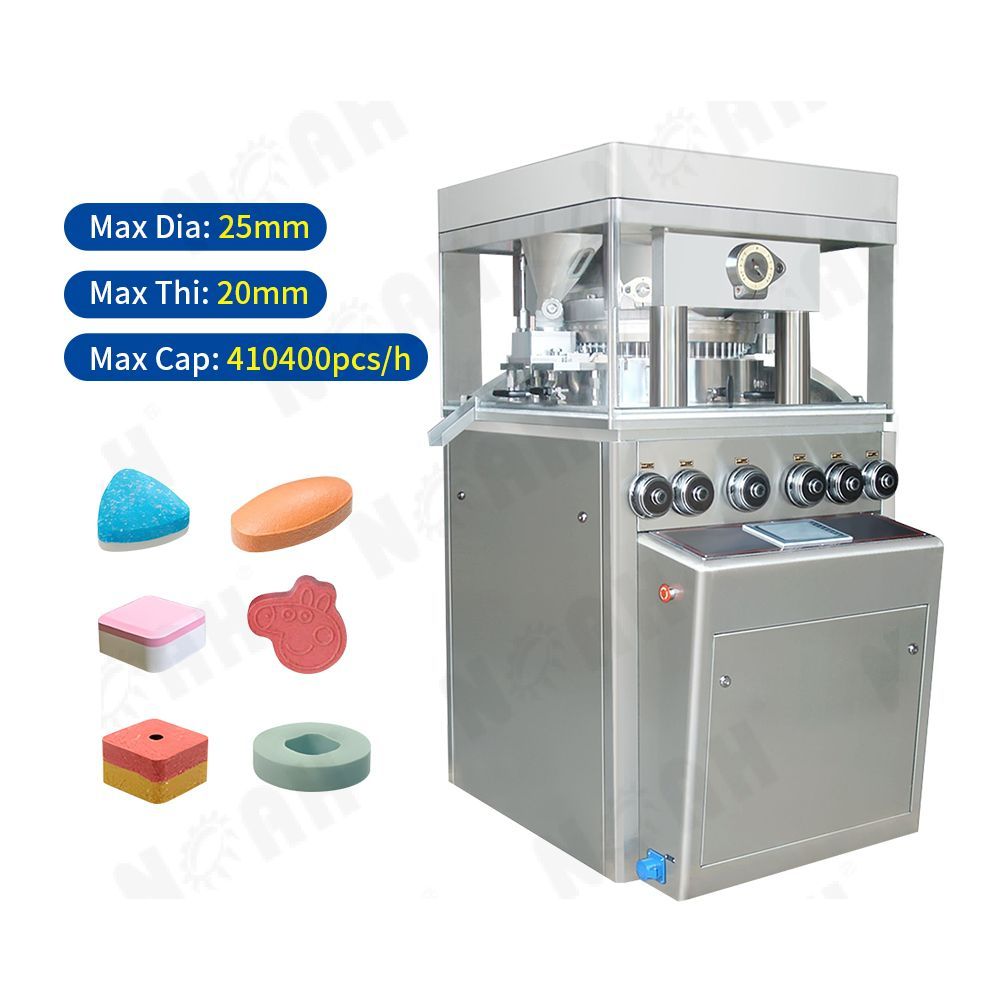

PG750 Series High Speed Double-slide Tablet Press Machine
Elevate tablet production efficiency with PG750, offering advanced technology and double-slide functionality.
Anti-seepage and dustproof device.
Easy-to-disassemble structure for equipment maintainability.
Automatic lubrication system for precise lubrication.
Lengthened ration cam for increased control and precise tablet weight.
Arm pressure function for quick and high torque pressurization.
Multi-layer three quants forced feeding device for uniform material filling.
Trash system for single-piece and batch automatic waste rejection.
Description
Applications
PG750 has versatile applications in the pharmaceuticals, chemicals, and food industries. It meets the production requirements of different industries and provides efficient, stable, and high-quality tablet production solutions.
Feature
Anti-seepage oil and dustproof device;
Structure that is easy to disassemble to ensure the maintainability of the equipment;
Automatic lubrication system, which makes every part lubrication more precise.
Lengthen the ration cam, which increases the number of controlled punches & die, tablet weight is more precise.
Adopt arm pressure function. pressurized quick and big torque.

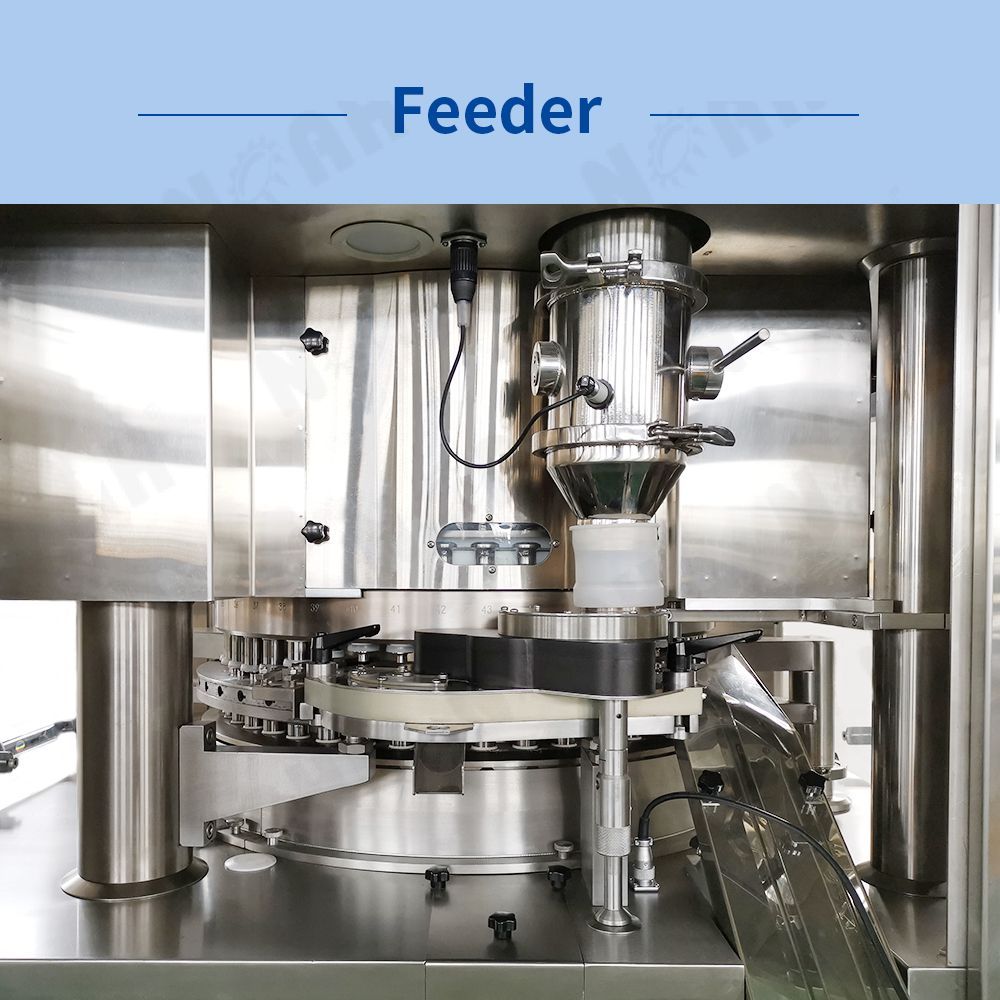

Multi-layer three quants forced feeding device, material filling more uniformity.
Trash system: The system can carry out single-piece automatic waste rejection and batch automatic waste rejection.
This series machine has with double-slide, large pressure speed tablet press, and adopts an advanced hands-free wheel servo control mode, simple and fast, to achieve product standardization, modularization, and serialization. Adopt precise screw rod continuous slant supporting framework, precisely control feeding cam, which can control 7-11 punches & die, the weight difference between ±2%。
This series product has the advantages of high precision, high speed, and high automation program, fully compliant with GMP requirements, it can press double-layer color film, ring-like tablets, shape tablets, engraving tablets, and irregular shape tablets, it is suitable for high-efficiency and precision tablet pressing in pharmaceutical, food, chemical, and other industries.
Product Video
Finished Product Display

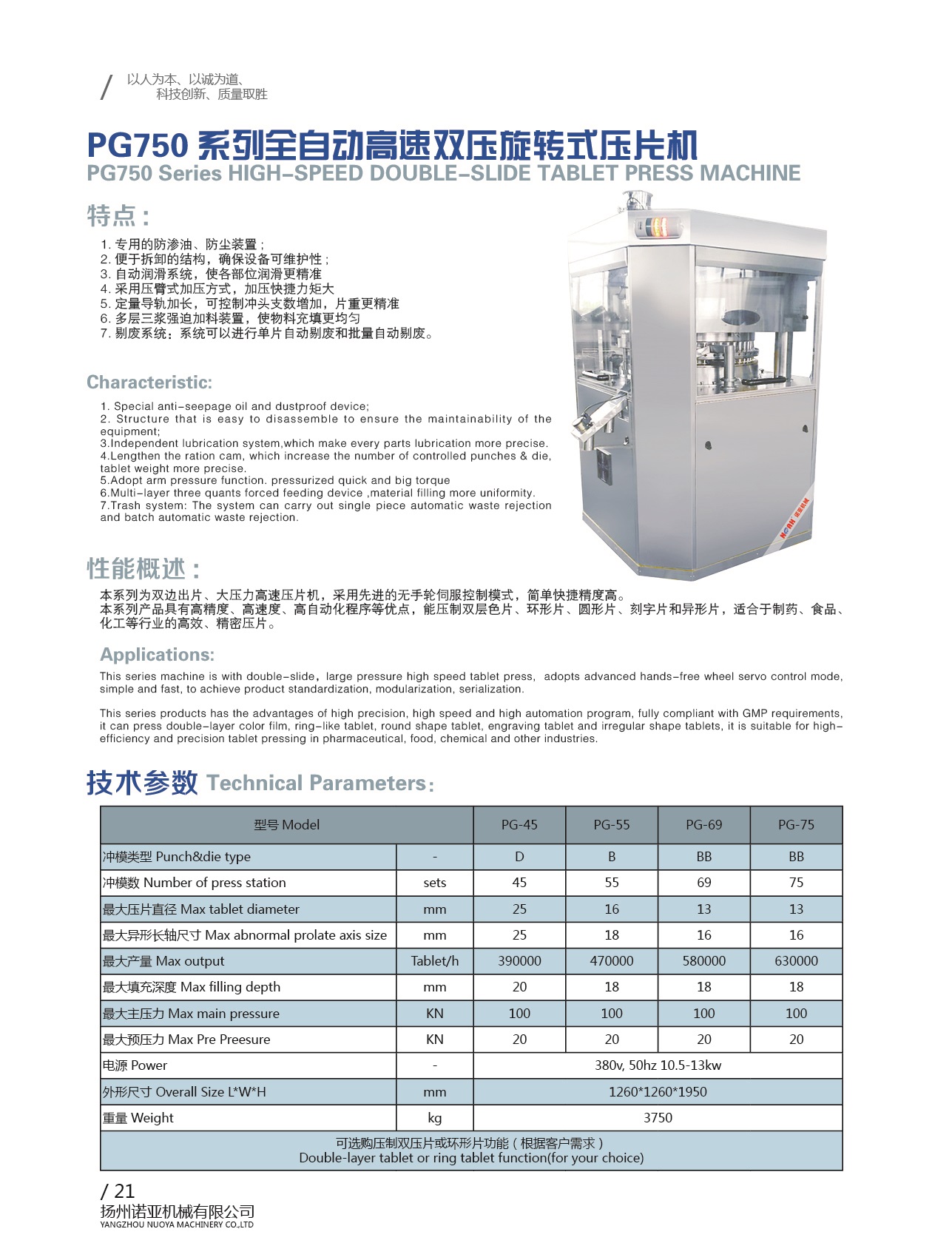

Specification

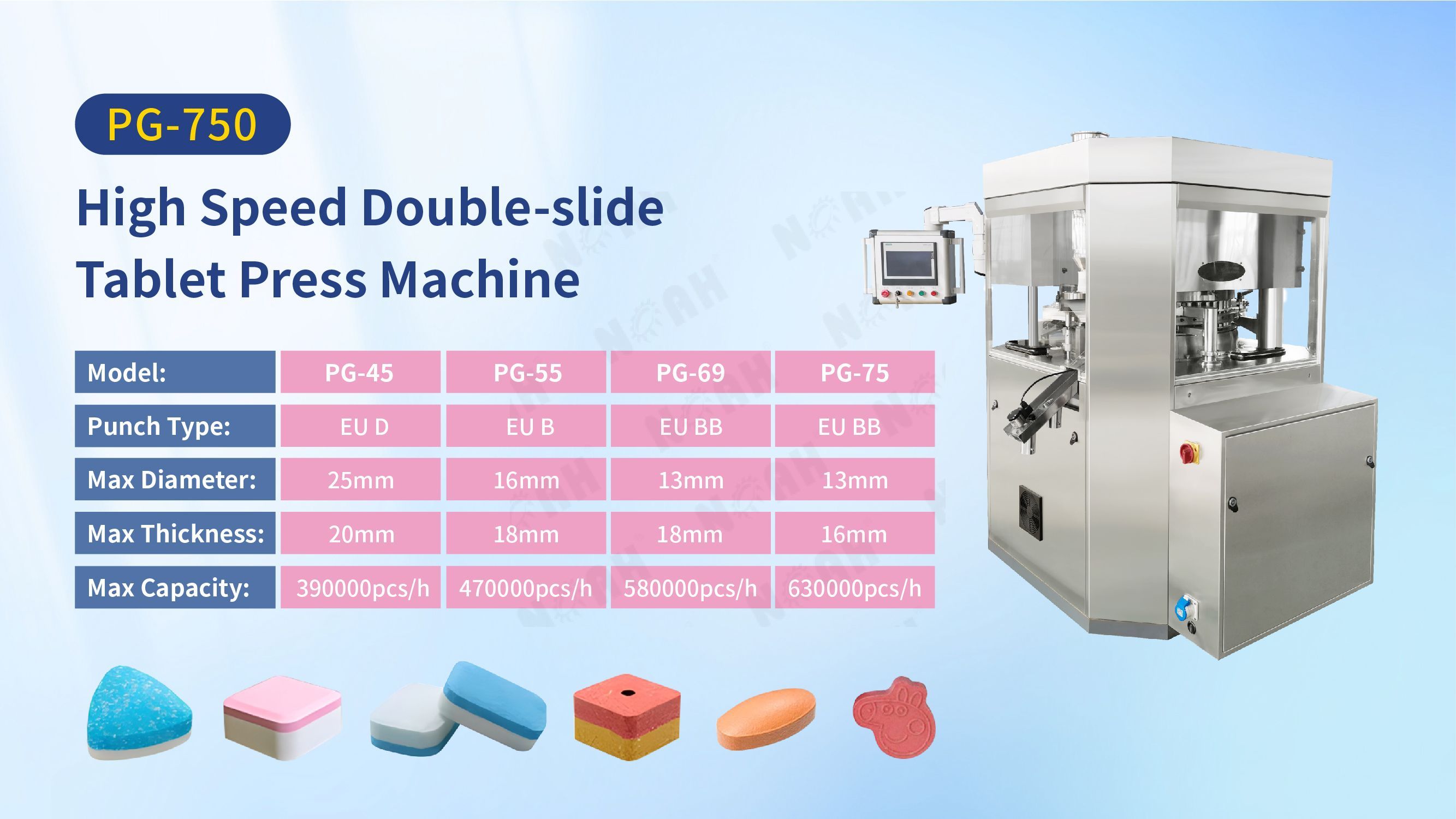

| Model | PG-45 | PG-55 | PG-69 | PG-75 |
| Punch&die type(EU) | D | B | BB | BB |
| Number of press station | 45 | 55 | 69 | 75 |
| Max tablet diameter(mm) | 25 | 16 | 13 | 13 |
| Max abnormal prolate axis size(mm) | 25 | 18 | 16 | 16 |
| Max output(Tablet/h) | 390000 | 470000 | 580000 | 630000 |
| Max filling depth | 20 | 18 | 18 | 18 |
| Max main pressure(KN) | 100 | 100 | 100 | 100 |
| Max Pre Preesure(KN) | 20 | 20 | 20 | 20 |
| Idle load noise dB(A) | <75 | |||
| Power | 380, 50hz 10.5-13kw | |||
| Size L*W*H(MM) | 1260*1260*1950 | |||
| Weight(kg) | 3750 | |||
| Double-layer tablet or ring tablet function(for your choice) | ||||
FAQ - Have any questions?
What is the production capacity of the PG750 Series High Speed Double-slide Tablet Press Machine?
The production capacity varies depending on the model, ranging from 390000-630000 tablets per hour.
Can this machine handle tablets of different shapes and sizes?
Yes, the PG750 Series offers versatility, allowing production of tablets in various shapes and sizes to meet diverse pharmaceutical needs.
How precise is the tablet compression in this machine?
The PG750 Series boasts advanced mechanisms ensuring precise tablet compression, maintaining uniformity and quality.
Does this press offer customization of tablet imprints and designs?
Absolutely, it offers versatile tooling options, enabling customization of tablet imprints and designs according to specific requirements.
Is the PG750 Series compliant with industry standards?
Yes, it strictly adheres to industry standards such as Good Manufacturing Practices (GMP), ensuring high-quality and compliant production.
What types of pharmaceutical formulations can this press handle?
It's adaptable to various pharmaceutical formulations, making it suitable for a wide range of tablet production needs.
Is the operation of the PG750 Series High Speed Double-slide Tablet Press Machine user-friendly?
Yes, the machine is designed with intuitive controls and interfaces, ensuring ease of operation for technicians and operators.
What safety features are incorporated into this machine?
The PG750 Series includes comprehensive safety features ensuring operator safety during operation.
Does this machine come with technical support and training?
Yes, technical support and training are provided to ensure optimal operation and efficiency of the machine.
How durable is the PG750 Series High Speed Double-slide Tablet Press Machine for continuous production cycles?
It's constructed with robust materials, ensuring durability and reliability even during continuous and demanding production environments.
Investment Return Analysis: PG750 Series High Speed Double-slide Tablet Press Machine
Introduction:
This report aims to evaluate the potential return on investment (ROI) and financial viability associated with the acquisition of the PG750 Series High Speed Double-slide Tablet Press Machine within the pharmaceutical manufacturing sector.
Market Demand Analysis:
The pharmaceutical industry consistently demands efficiently produced tablets due to escalating medication consumption globally.
Market trends indicate an increasing need for high-speed, high-capacity tablet manufacturing equipment to meet surging pharmaceutical demands.
Machine Features & Advantages:
High Production Capacity: The PG750 Series is specifically designed for high-volume tablet production, catering to substantial manufacturing requirements.
Versatile Tooling Options: Offers flexibility in producing tablets of various shapes, sizes, and imprints, accommodating diverse pharmaceutical formulations.
Precision Control: Advanced mechanisms ensure precise tablet compression, maintaining uniformity and quality.
Compliance & Reliability: Adheres strictly to industry standards such as Good Manufacturing Practices (GMP), ensuring quality and regulatory compliance.
Financial Analysis:
ROI Projection: Based on market demand and the machine's production capacity, a projected ROI indicates promising potential.
Cost-Benefit Analysis: A comparative assessment of initial investment costs against anticipated revenue streams suggests a favorable return outlook.
Competitive Advantage:
The PG750 Series stands out for its high-speed, double-slide capabilities, precision, compliance, and versatility, positioning it competitively in the market for high-speed tablet presses.
Advanced technology and customization options contribute significantly to its competitive edge.
Risk Assessment:
Market Dynamics: Potential shifts in pharmaceutical demands could influence the expected ROI.
Technological Advances: Rapid advancements may impact the machine's longevity or necessitate upgrades, affecting long-term costs.
Conclusion & Recommendation:
Investing in the PG750 Series High-Speed Double-Slide Tablet Press Machine aligns with the escalating demand for high-speed, high-capacity tablet production.
A thorough evaluation of market dynamics, compliance, and cost-benefit analysis suggests the potential for favorable returns within the pharmaceutical manufacturing sector.
In summary, the PG750 Series High-Speed Double-Slide Tablet Press Machine represents a promising investment opportunity within the pharmaceutical industry, provided strategic evaluation, risk mitigation, and alignment with market demands are carefully considered.
Overall, the PG370 Series High-Speed Tablet Press Machine represents a promising investment opportunity within the pharmaceutical industry, provided strategic evaluation, risk mitigation, and alignment with market demands are carefully considered.
