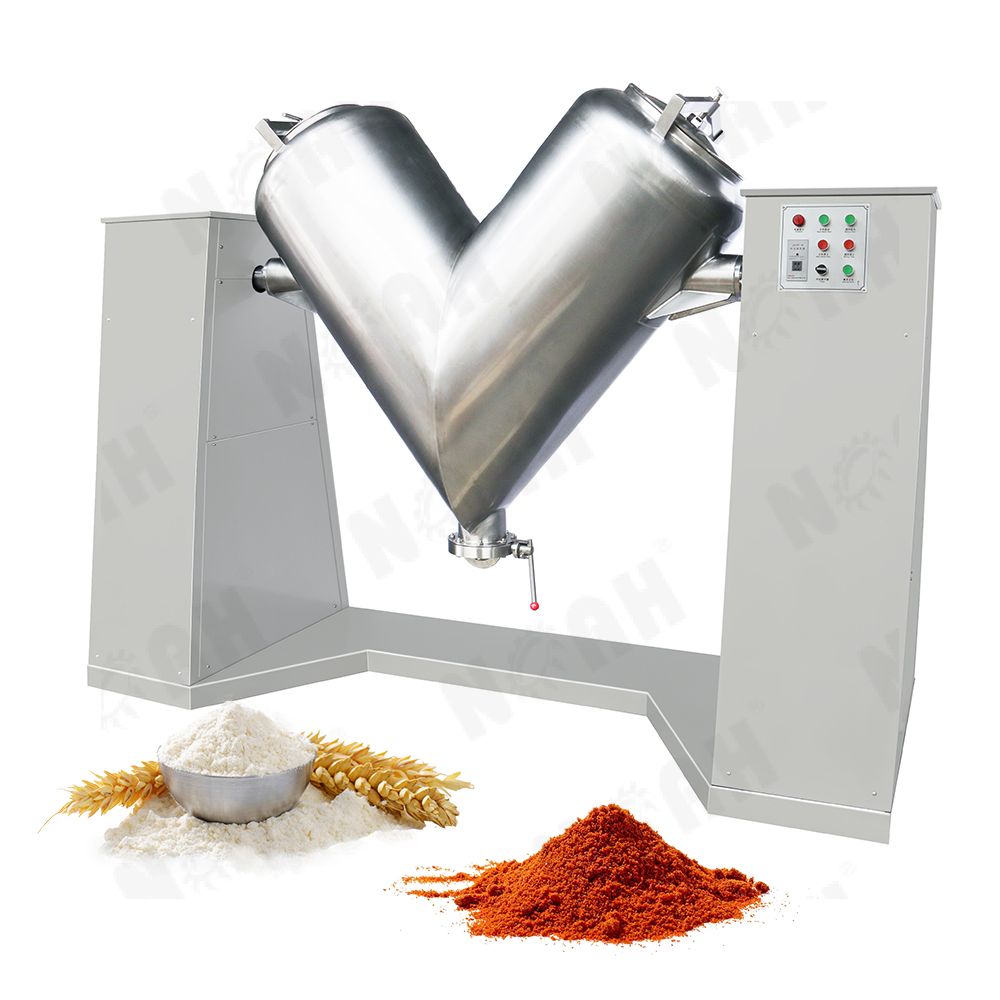

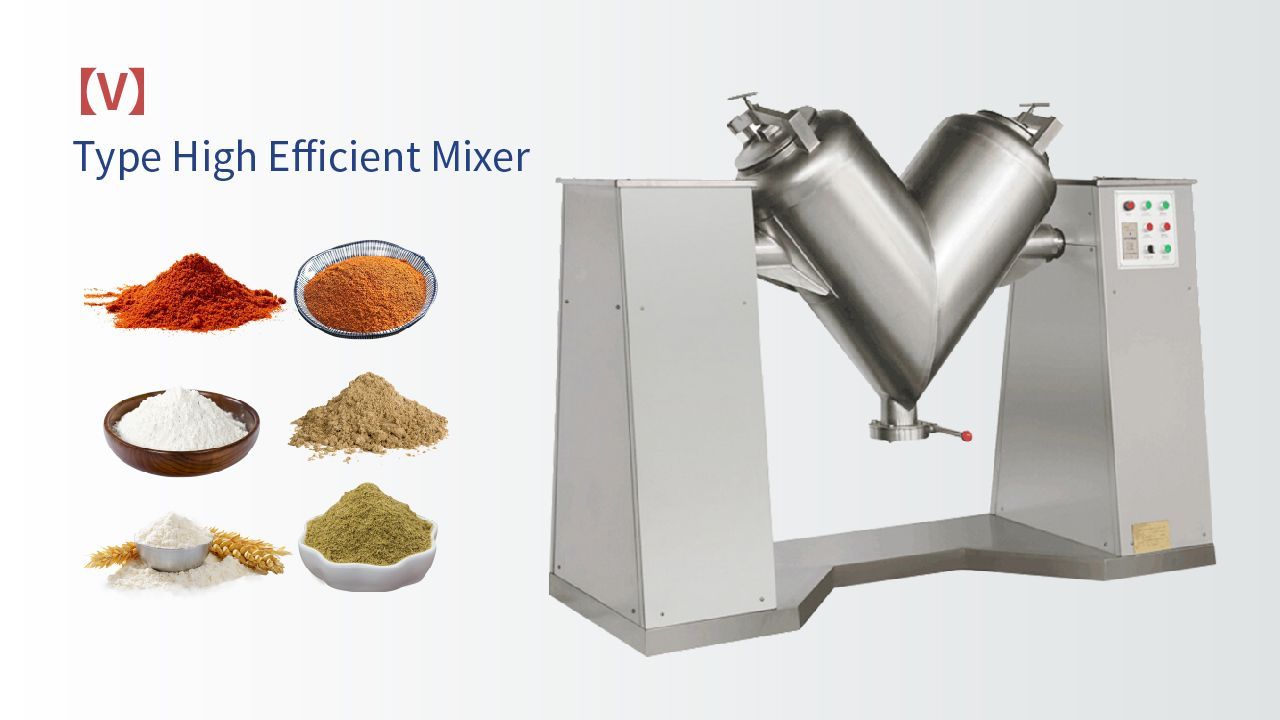

V Type High Efficient Mixer | V Blender Dry Powder Mixer

Description

The V Type High Efficient Mixer stands out with its unique V-shaped structure that enables efficient and uniform mixing. It lifts and rotates the materials, ensuring thorough blending and consistent distribution. The stainless steel construction with polished walls enhances hygiene and simplifies cleaning. This versatile machine finds applications in pharmaceuticals, foodstuff, and chemicals, where it delivers high-quality mixing results and facilitates easy maintenance.

Product Video

Specification

Model	Mixing barrel volume（L）	Rotor speed（r.p.m）	Power（kw）	Pack material coefficient	Overall dimesions（mm）	Net weight（Kg）
V-2	2	15	0.37	40%~60%	630×380×500	50
V-5	5	15	0.37	40%~60%	660×400×520	60
V-20	20	15	0.55	40%~60%	950×450×770	75
V-60	60	15	0.75	40%~60%	1300×520×1100	150
V-120	120	15	1.5	40%~60%	1770×700×1400	350
V-150	150	15	1.5	40%~60%	2000×750×1550	400
V-180	180	15	1.5	40%~60%	2070×780×1600	450
V-500	500	15	1.5	40%~60%	2650×1000×2020	500
V-1000	1000	12	4	40%~60%	3000×1850×2050	820
V-1500	1500	10	4	40%~60%	3150×2000×2050	900
V-2000	2000	10	4	40%~60%	3400×2400×2650	1000
V-2500	2500	9	4	40%~60%	3700×2800×3000	1100
V-3000	3000	9	4	40%~60%	4500×2900×3850	1200

FAQ - Have any questions?

What is the capacity range of the V Type High Efficient Mixer?

The capacity of the V Type Mixer ranges from 2L to 2500L, accommodating varying batch sizes.

What materials can be mixed using the V Type High Efficient Mixer?

The mixer is suitable for blending dry powders, granules, or similar materials used in pharmaceutical, food, or chemical industries.

How efficient is the mixing process with the V Type Mixer?

The V Type Mixer ensures high efficiency due to its unique V-shaped design, promoting thorough blending and homogeneity.

Is the mixing process uniform and consistent with the V Type Mixer?

Yes, the design ensures uniform mixing, maintaining consistency across batches.

Can the V Type Mixer handle heat-sensitive materials during mixing?

Yes, it's designed to mix heat-sensitive materials gently to prevent degradation or alteration of properties.

What safety features are integrated into the V Type High Efficient Mixer?

Safety features may include emergency stop buttons, overload protection, and safety guards, ensuring secure operations.

How is the cleaning process for the V Type Mixer?

The machine is designed for easy cleaning and maintenance, with removable parts and accessible surfaces for efficient cleaning.

Can the mixing speed be adjusted or customized?

Yes, some models may allow for adjustable mixing speeds or customization based on specific material requirements.

Is the V Type Mixer suitable for mixing abrasive materials?

The mixer is often equipped to handle abrasive materials, but specific models may have enhanced features for such purposes.

What technical support is provided with the purchase of the V Type High Efficient Mixer?

Comprehensive technical support, including setup guidance, training, and ongoing assistance, is typically offered to ensure optimal use of the equipment.
