How Does a Rotary Press Work?

The rotary press, specifically in the context of pharmaceutical manufacturing, is a sophisticated machine that transforms powdered ingredients into solid tablets. Its efficient and continuous operation makes it a staple in large-scale pharmaceutical production. Understanding how a rotary press works not only sheds light on the intricate process of tablet making but also highlights its importance in ensuring product quality and consistency. Here's a detailed exploration of the workings of a rotary press.

Introduction to Rotary Press Mechanism

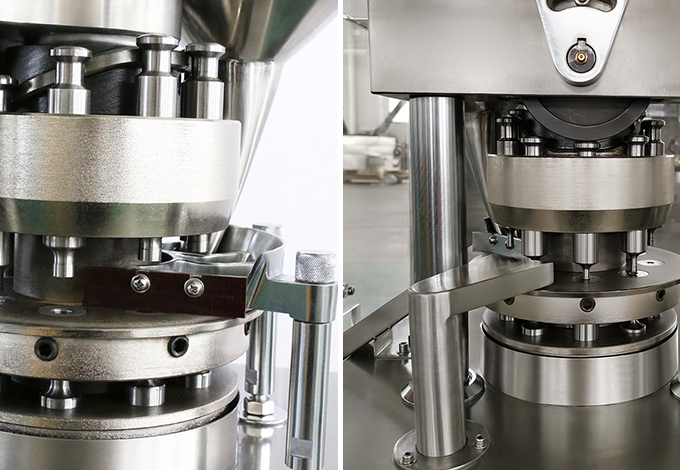

At its core, a rotary press operates on a rotating turret system, where multiple dies and punches are arranged in a circular pattern. As the turret rotates continuously, these components work in harmony to compress powdered materials into tablets. The process is highly automated, involving precise timing and control of various parameters to achieve optimal results.

Key Steps in Rotary Press Operation

       Feeding: The first step in the rotary press process is feeding the powdered material into the machine. This is achieved through a feed frame, which distributes the material evenly to the dies as the turret rotates. The feed frame may include multiple feed shoes to ensure a consistent flow of material.

       Filling: As the turret rotates, the dies align with the feed shoes, allowing the powdered material to be filled into the die cavities. The amount of material filled into each die is carefully controlled to ensure consistent tablet weight and size.

       Compression: Once the dies are filled, the punches, consisting of upper and lower parts, descend into the dies. The force applied by the punches compresses the powdered material into a solid tablet. The compression force can be adjusted to achieve the desired tablet hardness and thickness.

       Ejection: After compression, the punches retract, and the ejection system dislodges the tablets from the dies. The tablets are then collected and may undergo further processing, such as coating or packaging.

       Continuous Rotation: The entire process is continuous, with the turret rotating at a steady pace to ensure continuous production. As one set of dies and punches completes the tablet-making cycle, another set is already in position to receive material and repeat the process.

Key Components and Their Roles

       Turret: The rotating heart of the machine, carrying multiple dies and punches.

       Dies and Punches: The dies form the cavities where tablets are compressed, while the punches apply the compression force.

       Feed Frame and Feed Shoes: Responsible for evenly distributing the powdered material to the dies.

       Ejection System: Dislodges the compressed tablets from the dies for collection.

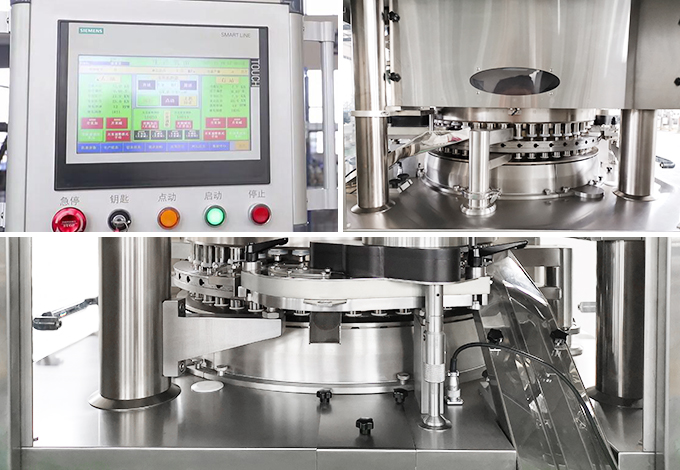

       Control System: Regulates parameters such as rotation speed, compression force, and feed rate, ensuring optimal production conditions.

Benefits of Rotary Press Operation

       High Productivity: With multiple dies and punches operating simultaneously, rotary presses can produce large quantities of tablets in a short time.

       Uniform Tablet Quality: Precise control over compression parameters ensures consistent tablet weight, hardness, and thickness.

       Versatility: Capable of handling a wide range of formulations, from simple blends to complex, multi-layered tablets.

       Reduced Labor Costs: Automation reduces the need for manual intervention, saving labor costs and minimizing the risk of contamination.

       Easy Maintenance and Cleaning: Designed for easy access to internal components, facilitating routine maintenance and cleaning.

Conclusion

In summary, the rotary press is a complex yet highly efficient machine that drives the production of solid dosage forms in the pharmaceutical industry. Its continuous operation, precise control over production parameters, and ability to handle diverse formulations make it an invaluable tool for large-scale production. Understanding the workings of a rotary press not only deepens our appreciation for its capabilities but also highlights the importance of maintaining and optimizing this critical piece of equipment.
