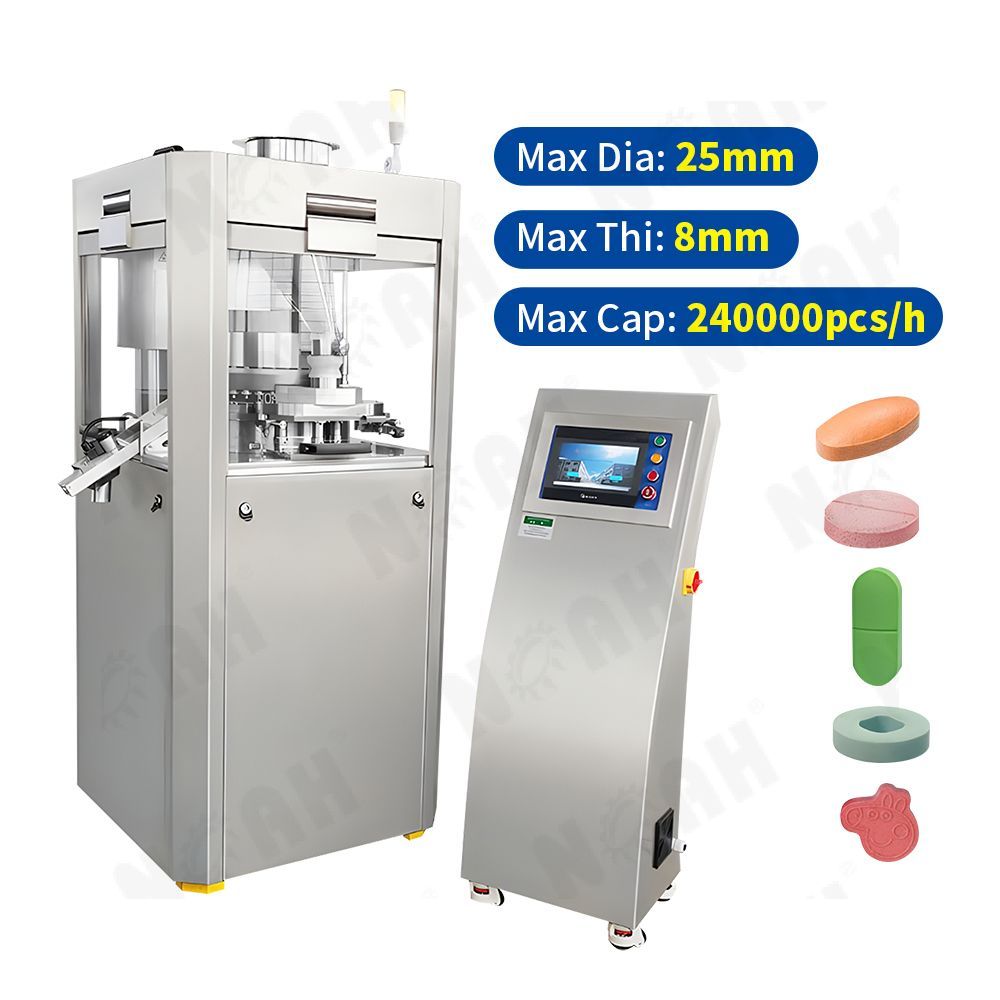

PG370 Series High Speed Tablet Press Machine
Elevate your tablet production with our advanced tablet press solutions.
High quality of all stainless steel constructions.
Special oil-proof and dust-proof sealing systems.
Reliable safety sealing system and dust-proof system.
High visibility isolated door to prevent cross-contamination.
Easily remove parts for quick machine maintenance.
360`design for easy observation and cleanliness.
Description
Applications
PG Series High-Speed Tablet Press Machine is the equipment of the first choice for tablet production. Selecting punches and dies with different specifications, Tablets in circular shapes, abnormal shapes, printed patterns, and characters can be pressed. Design of GMP.
Feature
1. High quality all stainless steel constructions
2. Special oil-proof&dust-proof sealing systems
3. Reliable safety sealing system and dust-proof system
4. High visibility isolated door to prevent cross-contamination
5. Easily remove parts for quick machine's maintenance
6. 360`design for easy observation and cleanliness

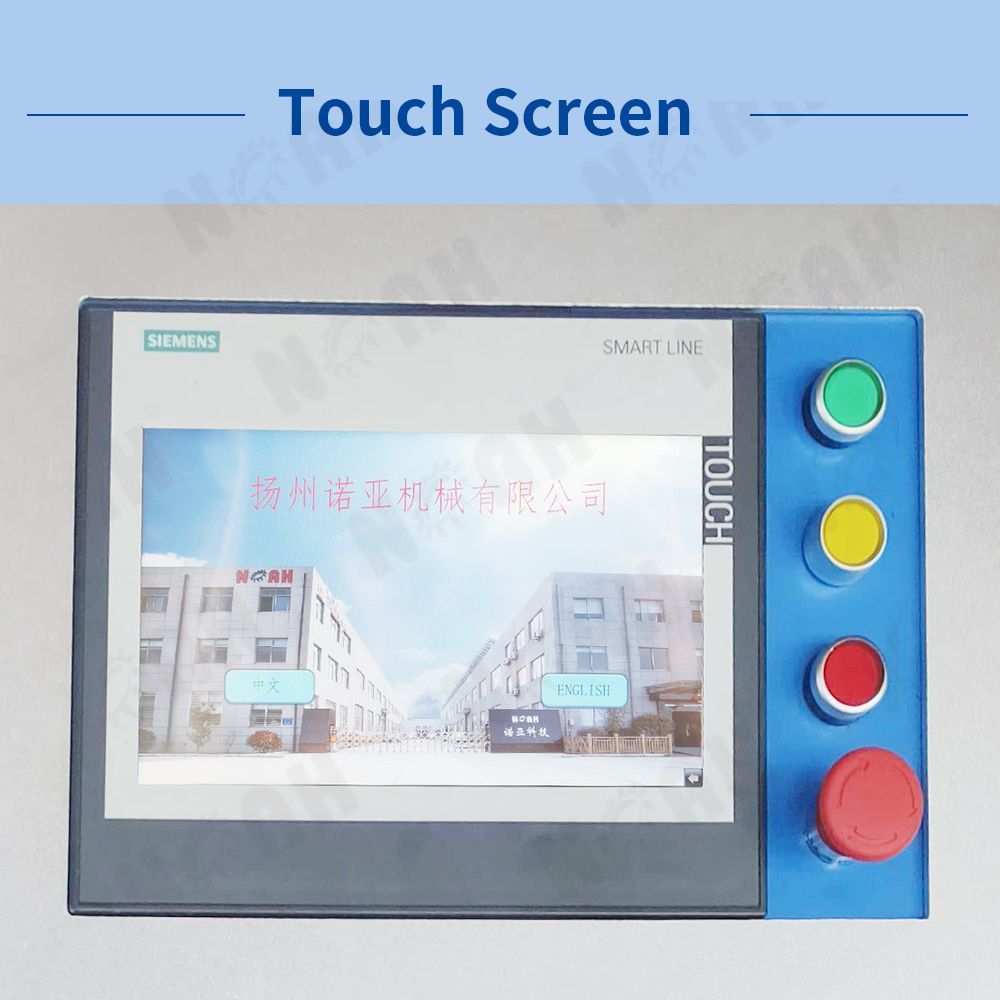

PG Series High-Speed Tablet Press Machine adopts a new braced structure, having strong carrying capacity, which is more suitable for pressing herbal tablets and special-shaped tablets. Using a man-machine interface (color touch screen)as the operation panel, the electric control system it has integrated multi-functions like the operating keys, signal indication LED, data display, and parameter setting into an organic whole, which is easy for the operators to control the machine in a correct way. Foil gauge is used to measure the pressing force, in order to control the tablet's weight.
Product Video
Specification

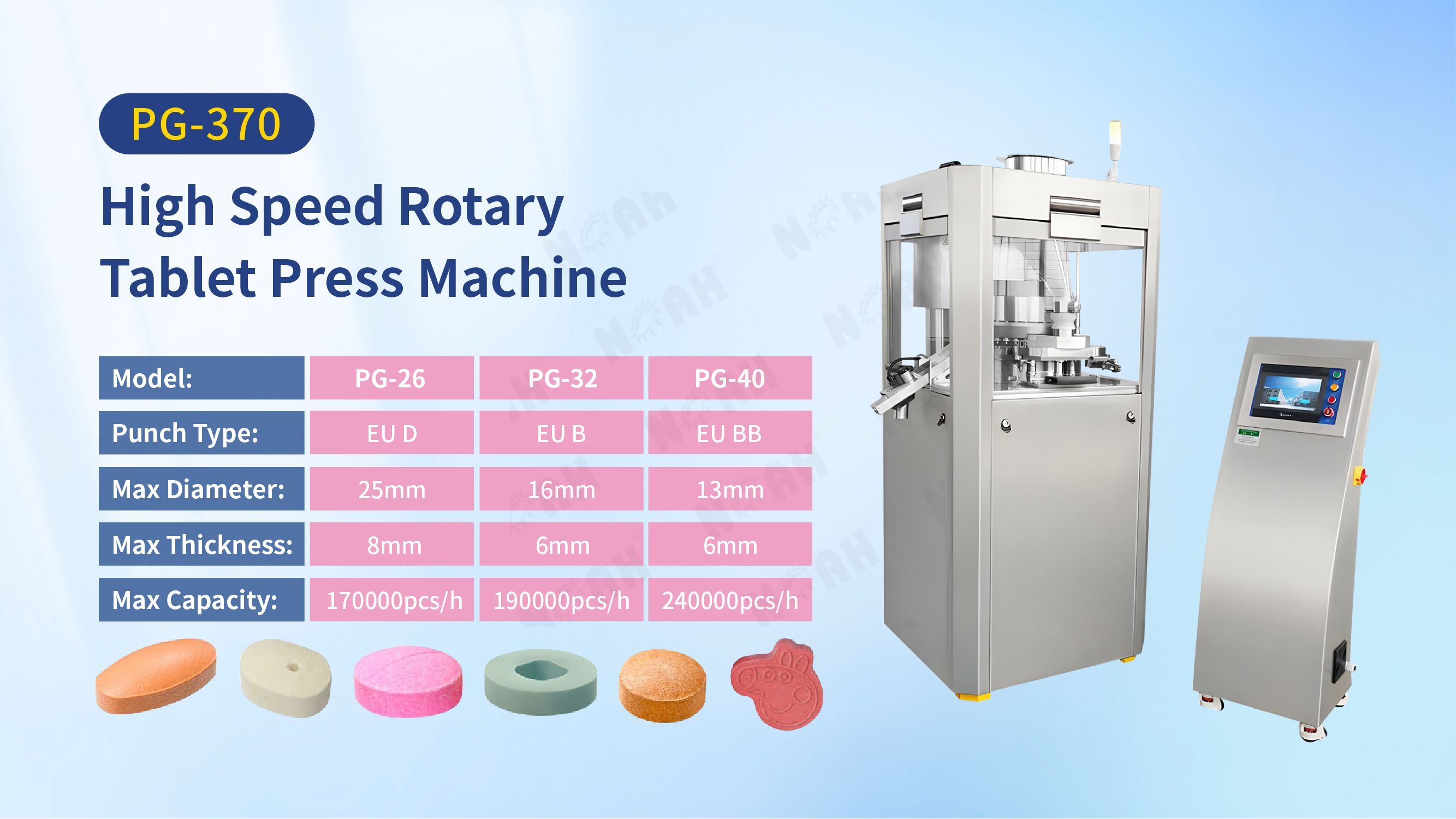

| Model | PG26 | PG32 | PG40 |
| Number of Station | 26 | 32 | 40 |
| Max. Output (Tablets/h) | 40000-170000 | 40000-190000 | 40000-240000 |
| Max. Tablet Diameter (mm) | 25 | Round tablet 16mmIrregular tablet 18mm | Round tablet 13 mmIrregular tablet 18mm |
| Max. Filling Depth (mm) | 20 | 16 | 16 |
| Max. Tablet Thickness (mm) | 8 | 6 | 6 |
| Max. Compression Force (KN) | 100 | 100 | 100 |
| Max. Pre-compression Force (KN) | 20 | 16 | 16 |
| Main Drive Power(kW) | 10 | 7.5 | 7.5 |
| Overall Dimension (L*W*H) (mm) | 800*1200*1860 | 950*1300* 1850 | 950*1300* 1850 |
| Weight (kg) | 1800 | 2000 | 2000 |
FAQ - Have any questions?
What is the production capacity of the PG370 Series High Speed Tablet Press Machine?
The production capacity varies depending on the model, ranging from 40000——24000 tablets per hour.
Can this machine handle tablets of different shapes and sizes?
Yes, the PG370 Series offers versatility, allowing production of tablets in various shapes and sizes to meet diverse pharmaceutical needs.
How precise is the tablet compression in this machine?
The PG370 Series boasts advanced mechanisms ensuring precise tablet compression, maintaining uniformity and quality.
Does this press offer customization of tablet imprints and designs?
Absolutely, it offers versatile tooling options, enabling customization of tablet imprints and designs according to specific requirements.
Is the PG370 Series compliant with industry standards?
Yes, it strictly adheres to industry standards such as Good Manufacturing Practices (GMP), ensuring high-quality and compliant production.
What types of pharmaceutical formulations can this press handle?
It's adaptable to various pharmaceutical formulations, making it suitable for a wide range of tablet production needs.
Is the operation of the PG370 Series High Speed Tablet Press Machine user-friendly?
Yes, the machine is designed with intuitive controls and interfaces, ensuring ease of operation for technicians and operators.
What safety features are incorporated into this machine?
The PG370 Series includes comprehensive safety features ensuring operator safety during operation.
Does this machine come with technical support and training?
Yes, technical support and training are provided to ensure optimal operation and efficiency of the machine.
How durable is the PG370 Series High Speed Tablet Press Machine for continuous production cycles?
It's constructed with robust materials, ensuring durability and reliability even during continuous and demanding production environments.
