What is the Difference Between Spray Drying and Fluid Bed Granulation?

Spray drying and fluid bed granulation are two widely used processes in the pharmaceutical, food, and chemical industries. While both techniques involve the manipulation of materials in a controlled environment, they serve distinct purposes and operate on different principles. Understanding the differences between these two processes is essential for manufacturers seeking to optimize their production methods and achieve specific product characteristics.

Definitions

Spray Drying

Spray drying is a process used to convert liquid solutions or suspensions into dry powders. This is achieved by atomizing the liquid feed into fine droplets and then rapidly evaporating the solvent, typically water, using hot air. The resulting dry particles are collected at the bottom of the drying chamber. Spray drying is commonly used for producing powdered ingredients, such as milk powder, instant coffee, and pharmaceutical compounds.

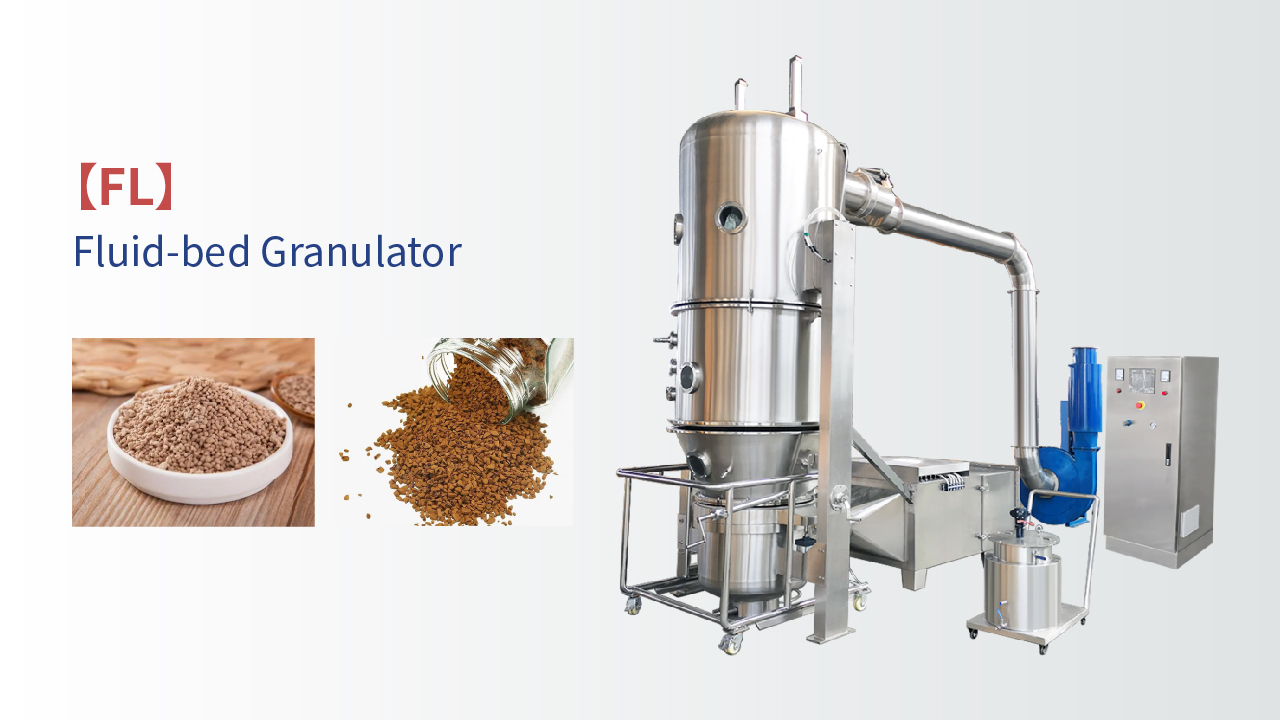

Fluid Bed Granulation

Fluid bed granulation is a technique used to create granules from fine powders. In this process, a bed of powder is fluidized by passing air through it, and a binding solution is sprayed onto the fluidized particles. This causes the particles to agglomerate, forming larger granules. Fluid bed granulation is often employed in the pharmaceutical industry to improve the flowability and compressibility of powders for tablet manufacturing.

Key Differences

1. Primary Purpose

· Spray Drying: The main goal is to produce dry powders from liquid feeds. It focuses on moisture removal and particle formation.

· Fluid Bed Granulation: The primary aim is to agglomerate fine powders into larger granules, enhancing their physical properties for further processing.

2. Process Steps

Spray Drying:

1. Atomization: The liquid feed is atomized into fine droplets.

2. Drying: Hot air evaporates the moisture, leaving behind dry particles.

3. Collection: The dry powder is collected using a cyclone or bag filter.

Fluid Bed Granulation:

1. Fluidization: Air is passed through the powder bed to create a fluidized state.

2. Spraying: A liquid binder is sprayed onto the fluidized particles.

3. Granulation: The particles agglomerate, forming larger granules, which may then be dried.

3. Equipment Design

· Spray Drying: Requires a spray dryer equipped with an atomizer, drying chamber, and collection system. The design focuses on efficient atomization and rapid drying.

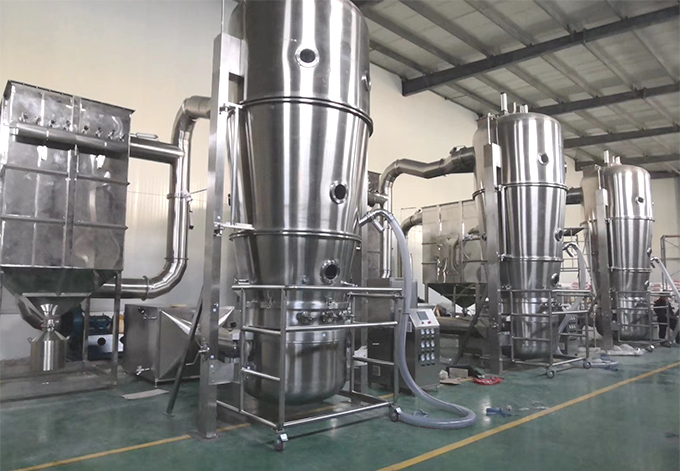

· Fluid Bed Granulation: Consists of a fluid bed chamber, an air distribution system, a spray nozzle for the binder, and often a drying component. The design emphasizes fluidization and controlled spraying.

4. Particle Characteristics

· Spray Drying: Produces fine, free-flowing powders with a specific particle size distribution, often ideal for instant solubility.

· Fluid Bed Granulation: Results in larger, more uniform granules that improve flowability, compressibility, and dissolution rates in pharmaceutical applications.

5. Applications

· Spray Drying: Commonly used for drying heat-sensitive materials, producing powdered food ingredients, and creating pharmaceutical formulations like vaccines and antibiotics.

· Fluid Bed Granulation: Primarily utilized in tablet manufacturing, where improved powder characteristics are essential for consistent tablet quality.

Conclusion

In summary, spray drying and fluid bed granulation are two distinct processes that serve different purposes in material processing. Spray drying focuses on converting liquid feeds into dry powders, while fluid bed granulation aims to create granules from fine powders. Understanding these differences allows manufacturers to select the appropriate technology based on their specific product requirements, ultimately enhancing efficiency and product quality in their operations.
