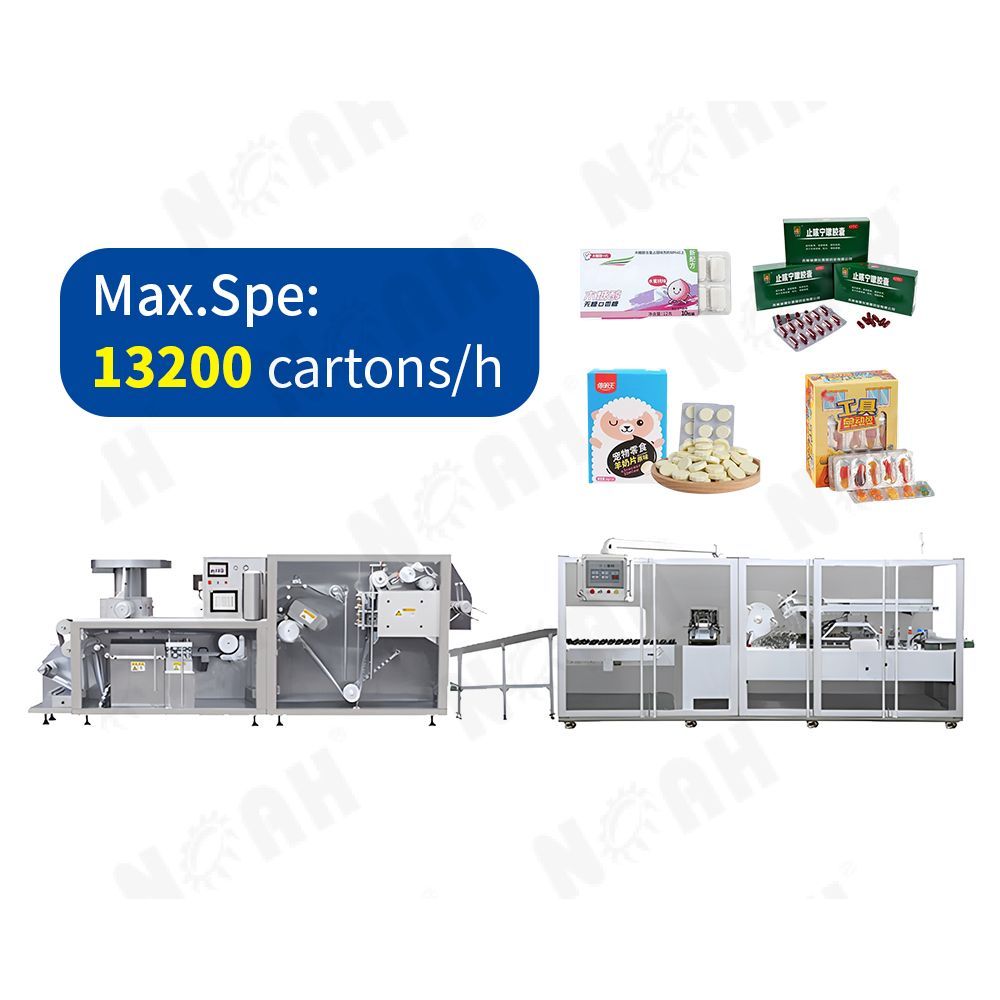

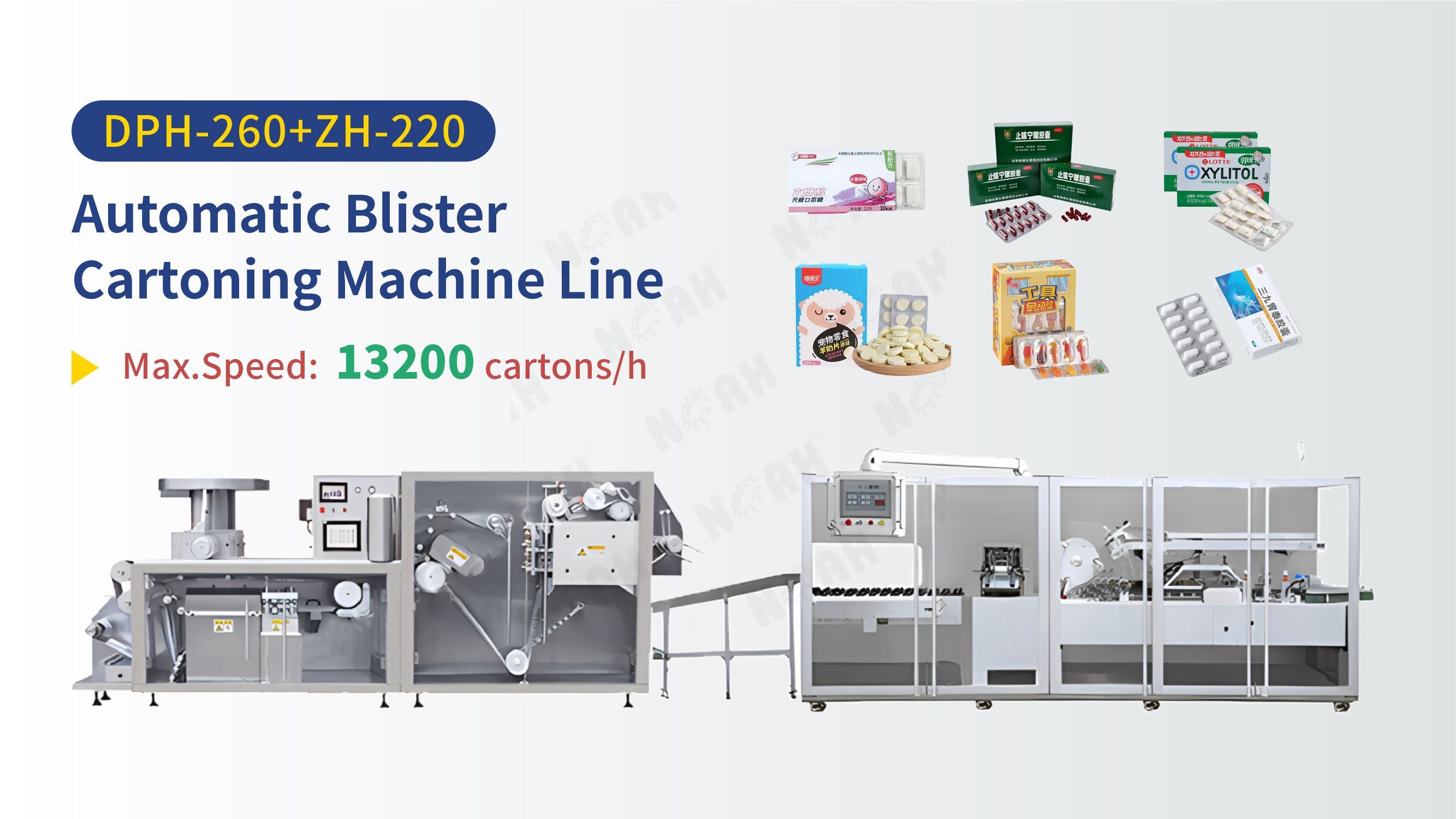

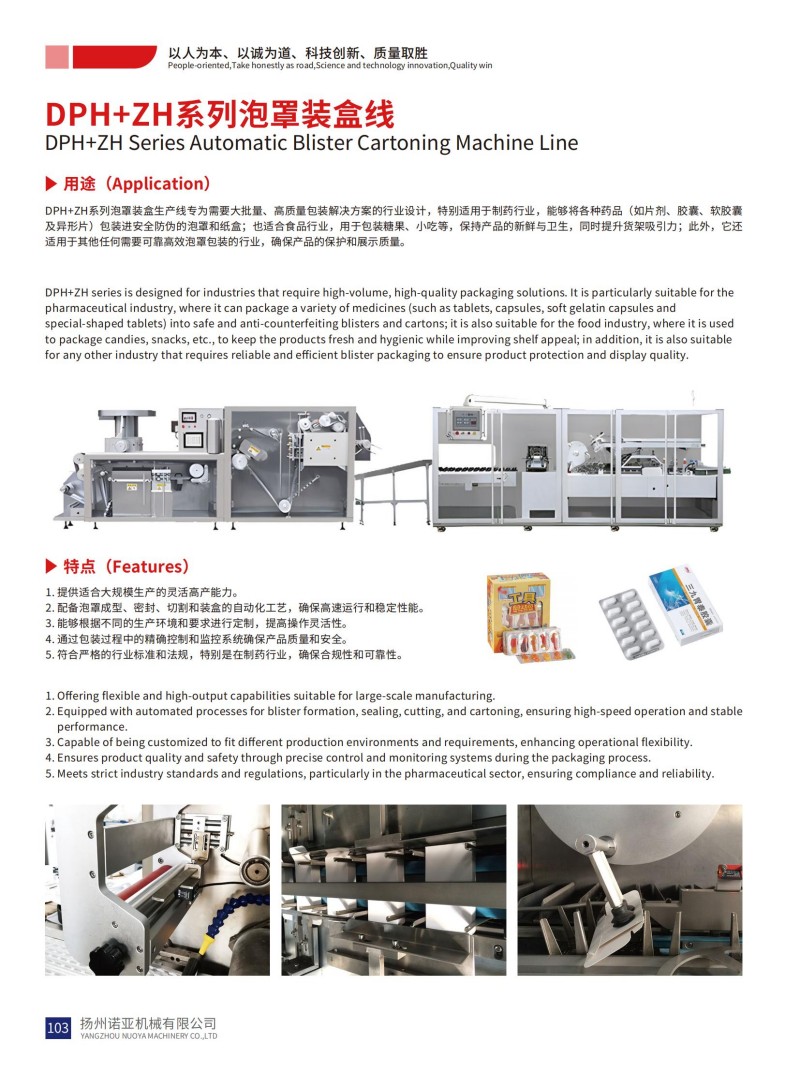

DPH260+ZH220 Automatic Blister Cartoning Machine Line

Description

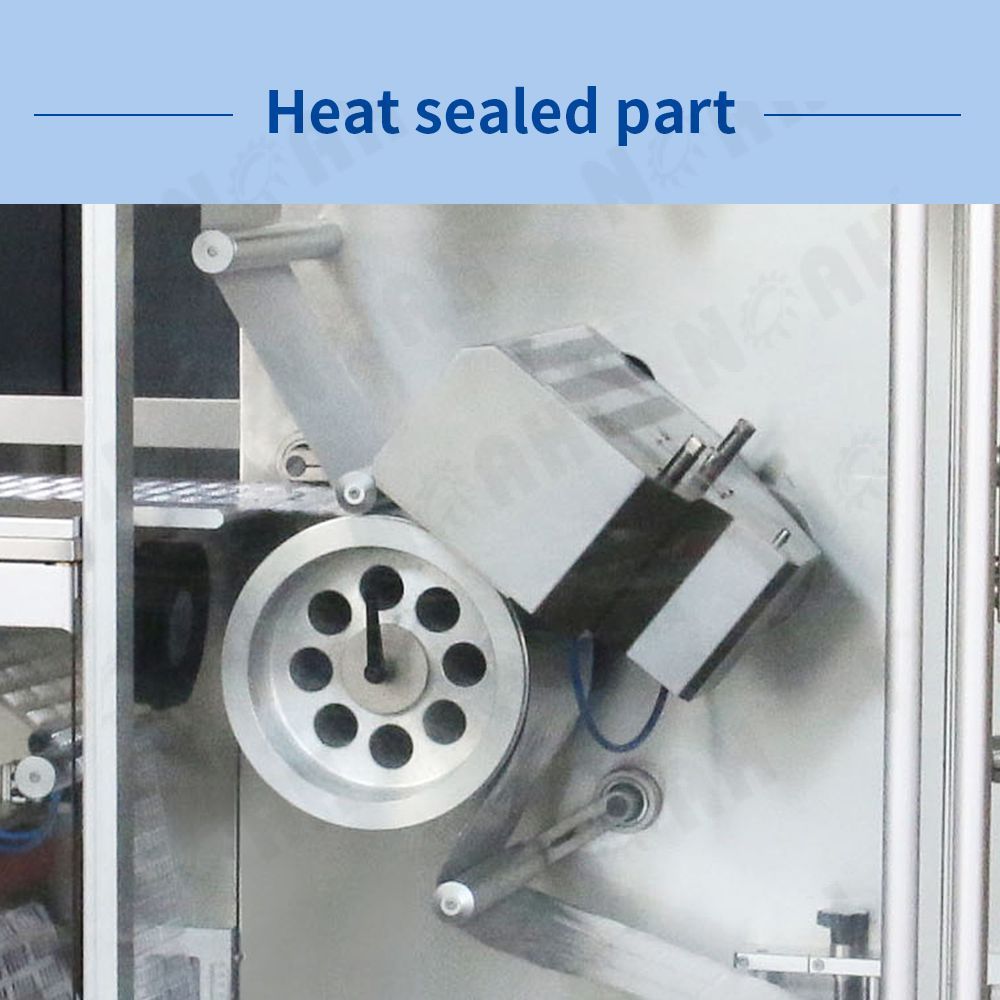

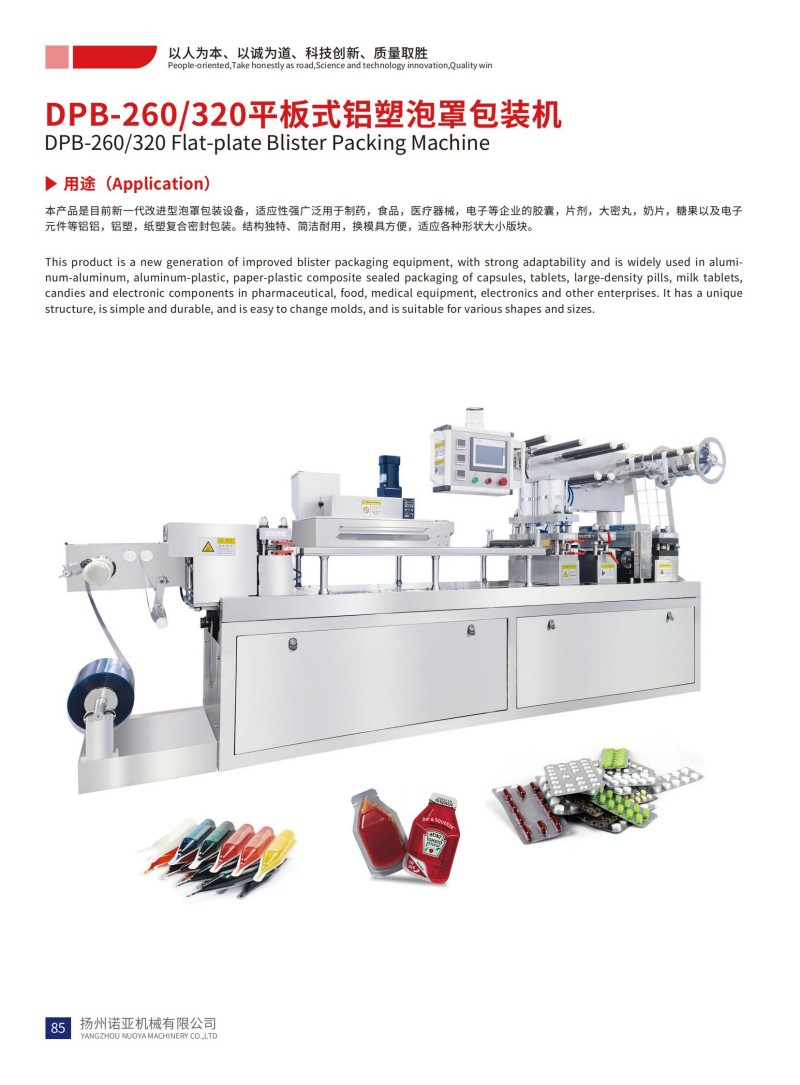

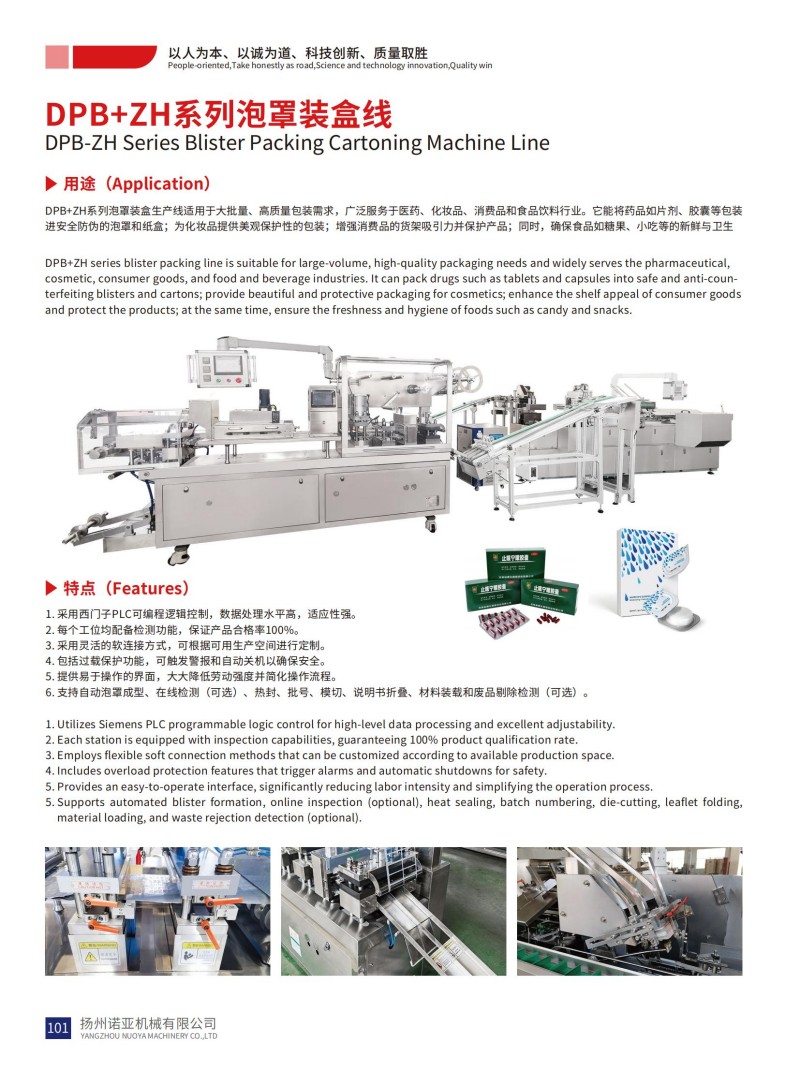

The DPB-ZH Blister Packing Cartoning Machine is a highly advanced and versatile machine used for packaging a wide range of products in various industries. It offers precise and reliable packaging of capsules, tablets, candies, and other items in ALU-ALU, ALU-plastic, and paper-plastic combined sealing packing formats. The machine features a PLC control system, ensuring precise control and seamless integration with other equipment. Its stable and precise machine-tool track type casting machine-base provides high precision and exchangeability of parts. The adjustable configuration allows for flexibility in adapting to different packaging requirements. The machine incorporates a reliable sealing mechanism and automatic monitoring through a photoelectric system, ensuring quality sealing and facilitating quick troubleshooting. It offers automatic operation for various tasks and can be used as a standalone machine or integrated into a production line. The DPB-ZH machine delivers high precision, ease of operation, and reliable packaging results, meeting the demands of diverse industries.

Product Video

Automatic cartoning machine manufacturers

Specifications

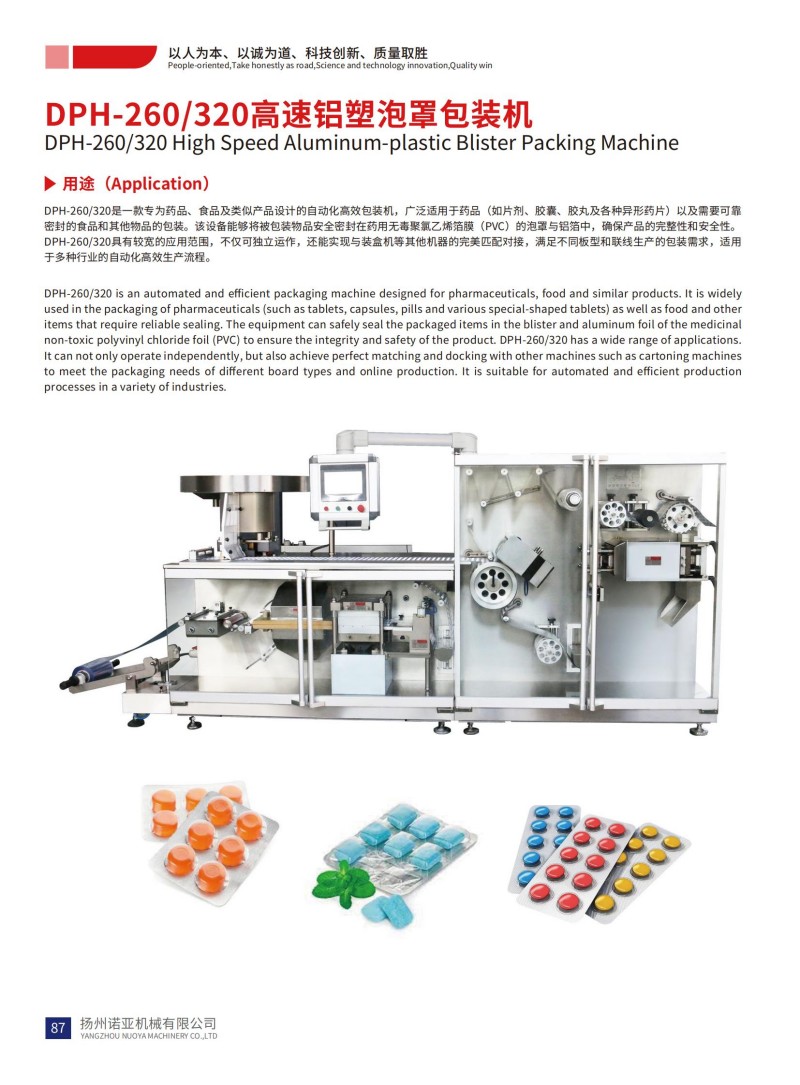

Model	DPH-260	DPH-320
Packing Speed	≤150	30-150
Maximum wire speed of packing material(M/min)	20	20
Max. Forming Depth (mm)	12	12
Max.Forming Depth （Width X Feed）(mm²)	260X230	320X250
Max.width of Packaging Material	260	320
Max. Feeding length (mm)	230	260
Max. Punching Length (mm)	120	120
Gas Source	Pressure: 0.6 MPa	Pressure: 0.6 MPa
Gas Source	Air consumption:<12 m³/h	Air consumption:<12 m³/h
Water Sourse	Temperature:15-18°C	Temperature:15-18°C
Water Sourse	Water consumption:<0.08 m³/h	Water consumption:<0.08 m³/h
Power	Power supply: AC380V /three phase/50Hz	Power supply: AC380V /three phase/50Hz
Power	Power consumption: 18kw/h	Power consumption: 18kw/h
Overall Dimensions	4200X1150X1650mm	3964X1235X1725
Weight	About 2600KG	About 3000KG

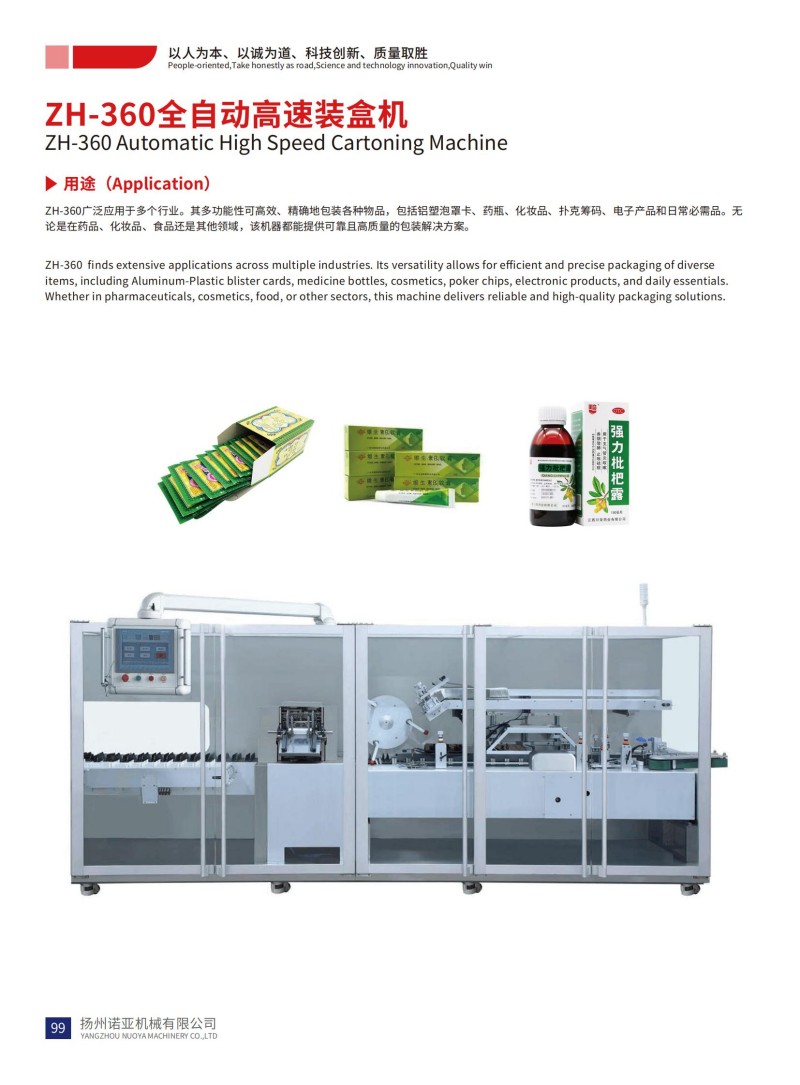

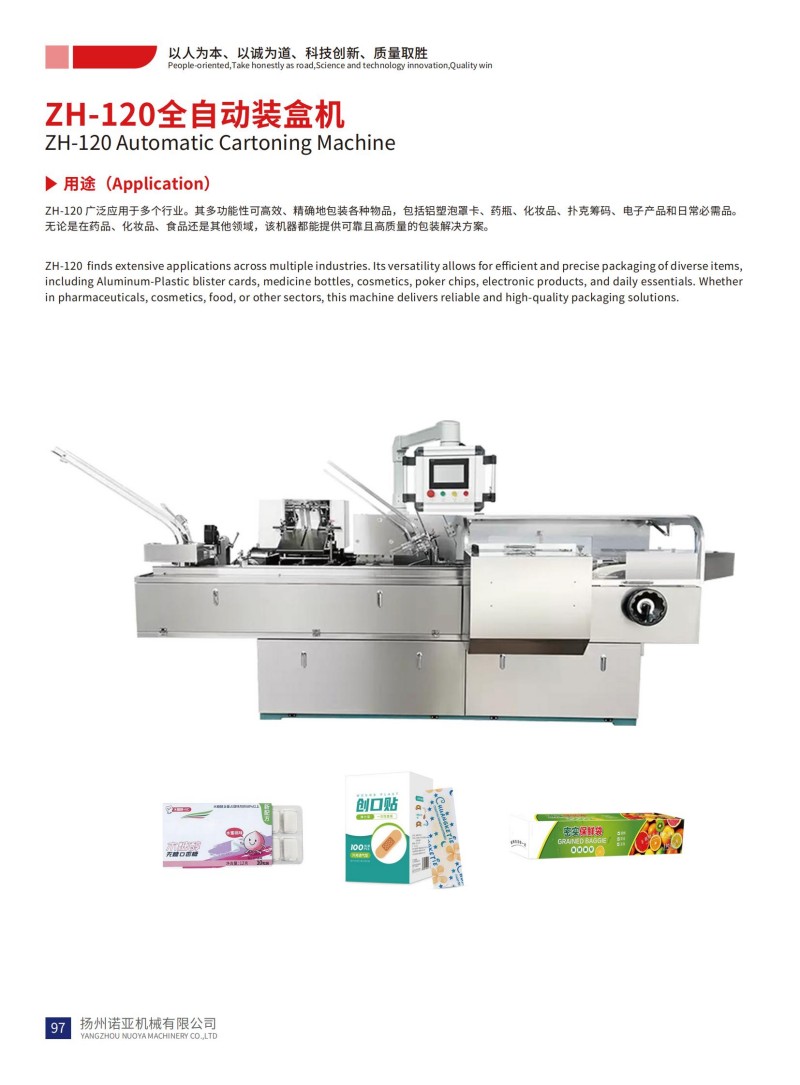

Model	ZH-120	ZH-220	ZH-360
Packing Speed	50-120 boxes/min	50-220 boxes/min	50-360 boxes/min
Min.Size Of Plate	Max.Size: 200×120×70mm	Max.Size: 50x30x10mm	Max.Size: 160×100×35mm
Min.Bottle Size	Min.Size: φ50×25mm	Min.Size: φ25x60mm	Min.Size: φ90×40
Unfolded Specification Size	Max.Size: 260×180mm	Max.Size:250x190mm	Max.Size: 250×180mm
Main Motor Power	0.75/1.5KW	2.2Kw	3.2KW
Total Power	1.5KW	5Kw	5KW
Power Supply Wiring	220V/380V 50HZ	380V 50Hz	380V 50HZ
Compressed Air Pressure	Pressure	0.6MPa	0.5-0.7Mpa
Compressed Air Pressure	Consumption	10NL/min	40NL/min
Overall Dimensions	3700×1350×1700mm	4700x1510x1600mm	4500×1600×1700MM
Weight	1200KG	3000Kg	4000KG
Working Noise	<75dB	<75dB	<85dB

FAQ - Have any questions?

What is the DPH260+ZH220 Automatic Blister Cartoning Machine Line?

The DPH260+ZH220 Automatic Blister Cartoning Machine Line is a fully automated production line that combines the DPH260 Blister Packing Machine and ZH220 Cartoning Machine. It integrates blister packaging and cartoning processes into a single streamlined operation.

What are the key components of the DPH260+ZH220 Automatic Blister Cartoning Machine Line?

The key components of the DPH260+ZH220 Automatic Blister Cartoning Machine Line include the DPH260 Blister Packing Machine, ZH220 Cartoning Machine, product feeding systems, blister forming stations, filling mechanisms, carton forming units, and control systems.

What types of products can be processed by the DPH260+ZH220 Automatic Blister Cartoning Machine Line?

The DPH260+ZH220 Automatic Blister Cartoning Machine Line is suitable for processing a wide range of products, including pharmaceuticals, healthcare products, cosmetics, and consumer goods that require blister packaging and cartoning.

How does the DPH260+ZH220 Automatic Blister Cartoning Machine Line ensure product integrity and quality?

The DPH260+ZH220 Automatic Blister Cartoning Machine Line incorporates precise product handling mechanisms, quality control systems, and inspection sensors. It ensures accurate product placement, proper sealing of blisters, and carton integrity, maintaining product quality throughout the packaging process.

Can the DPH260+ZH220 Automatic Blister Cartoning Machine Line handle different blister sizes and carton dimensions?

Yes, the DPH260+ZH220 Automatic Blister Cartoning Machine Line is designed to handle various blister sizes and carton dimensions. It offers flexibility in adjusting the dimensions and configurations of blisters and cartons, allowing for customization based on specific product requirements.

Does the DPH260+ZH220 Automatic Blister Cartoning Machine Line support high-speed production?

Yes, the DPH260+ZH220 Automatic Blister Cartoning Machine Line is capable of high-speed production. It utilizes advanced automation technology, precise control systems, and optimized workflows to achieve efficient and fast packaging processes, thereby maximizing production output.

What are the advantages of investing in the DPH260+ZH220 Automatic Blister Cartoning Machine Line?

Investing in the DPH260+ZH220 Automatic Blister Cartoning Machine Line offers several advantages, including increased packaging efficiency, reduced labor costs, improved product quality, minimized errors and rejects, enhanced productivity, and seamless integration of blister packaging and cartoning processes.

Can the DPH260+ZH220 Automatic Blister Cartoning Machine Line be customized to specific packaging requirements?

Yes, the DPH260+ZH220 Automatic Blister Cartoning Machine Line can be customized to meet specific packaging requirements. It offers options for adjusting blister sizes, carton dimensions, and configurations, allowing manufacturers to tailor the packaging line to their unique product specifications.

Is technical support available for the DPH260+ZH220 Automatic Blister Cartoning Machine Line?

Yes, manufacturers of the DPH260+ZH220 Automatic Blister Cartoning Machine Line typically provide technical support services. They offer installation assistance, training for machine operation and maintenance, and timely support for any technical issues that may ar

What is the production capacity of the DPH260+ZH220 Automatic Blister Cartoning Machine Line?

The production capacity of the DPH260+ZH220 Automatic Blister Cartoning Machine Line depends on various factors such as product size, blister configuration, carton dimensions, and operational settings. NOAH can provide specific production capacity details based on individual requirements and customization options.
