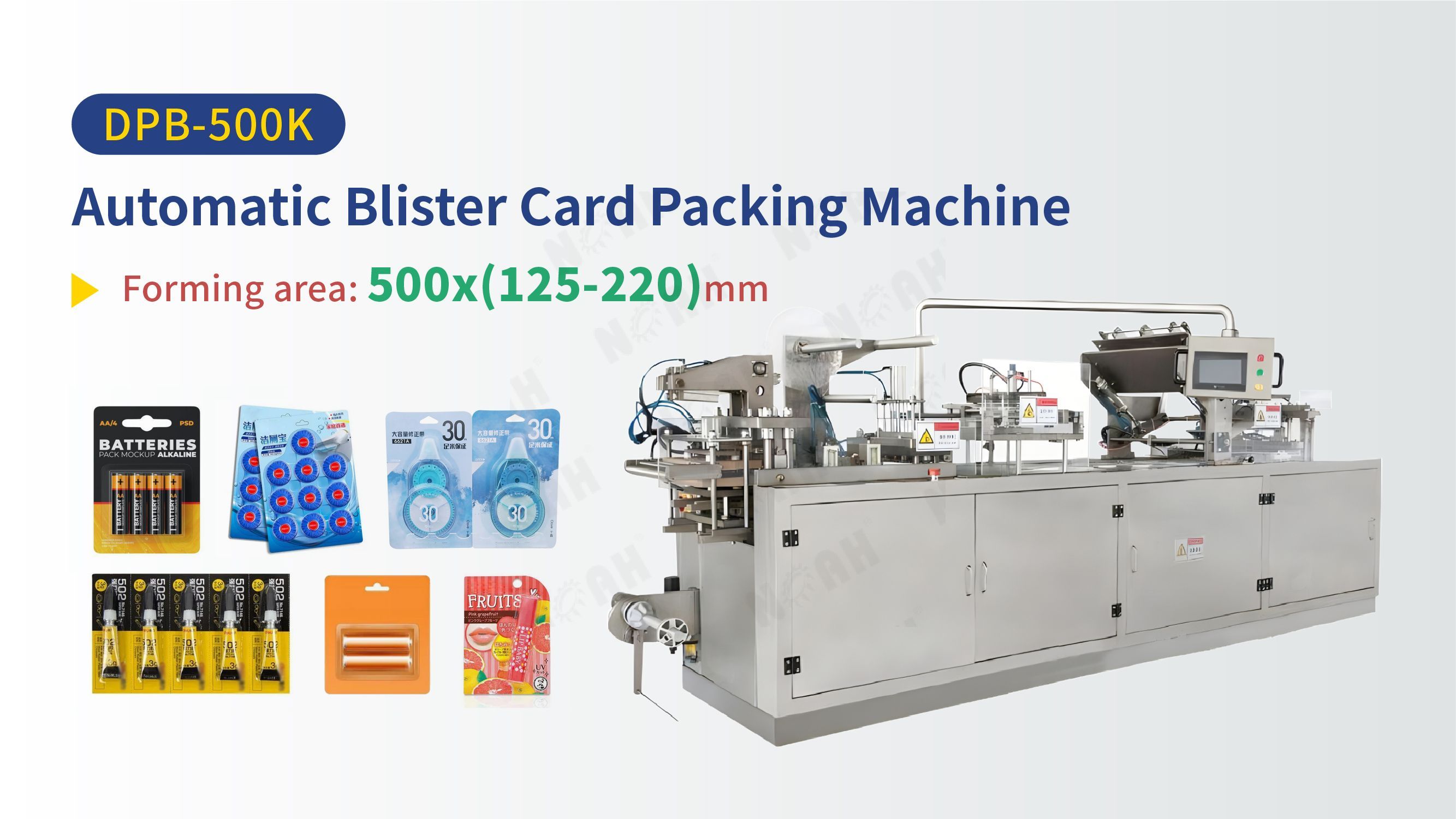

DPB-500k Paper Card Blister Packing Machine

Description

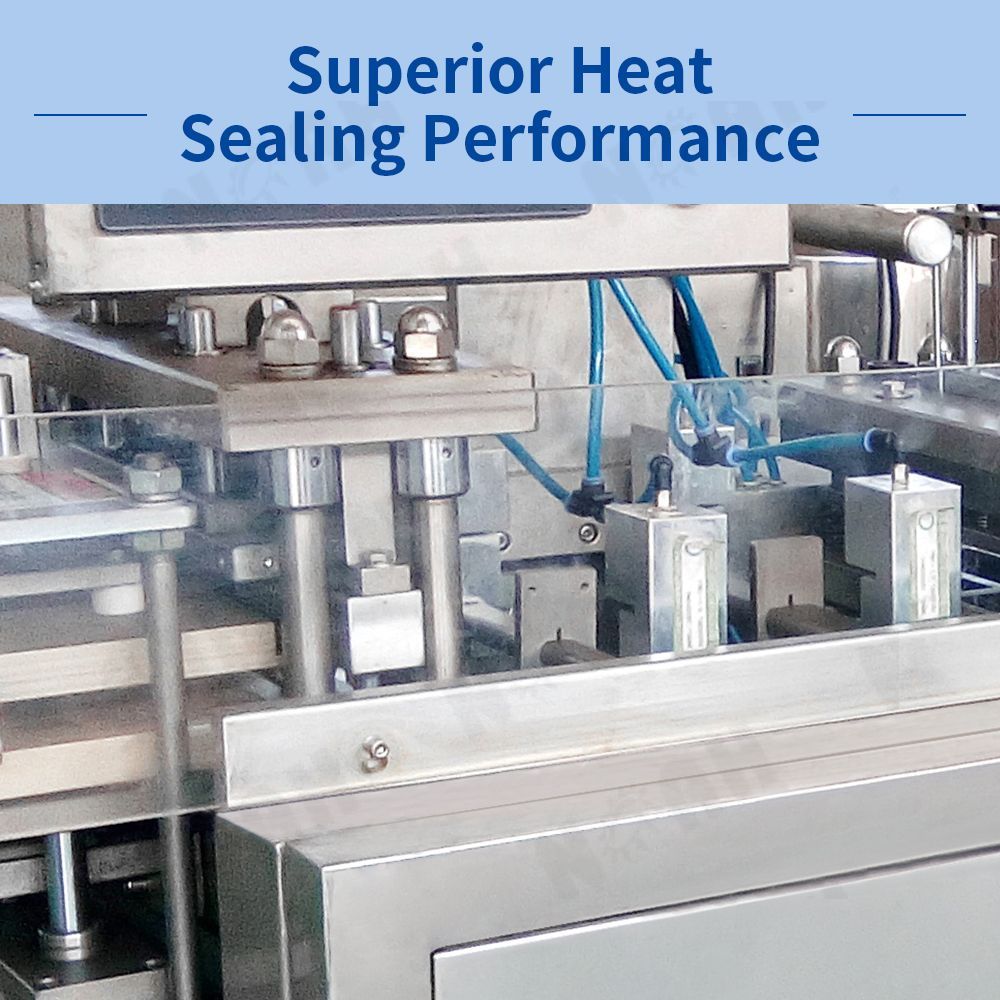

The DPB-500K Paper Card Blister Packing Machine is a versatile packaging solution that integrates machine, electricity, photo, and air components. It features a modular station structure with flexible stroke, ensuring easy operation, high output, low noise, and an attractive design. The machine's main devices include PVC heating, blister forming, punching, and heating and sealing. It offers efficient and precise packaging for products with PVC blister cards, while detecting and rejecting defective blisters. With its exceptional performance and user-friendly features, the DPB-500K is an ideal choice for reliable and visually appealing packaging.

Product Video

Specifications

PVC thickness	0.15-0.5mm
PVC width	330-460mm
Card board	200-700g
Air compress	0.55-0.85Mpa
Air consumption	≥0.3 CBM/min
Power supply	380V, 50Hz, 9.5 KW
Mold cooling Running water or recycling water(50L/H)
Capacity	10-25 punches/min

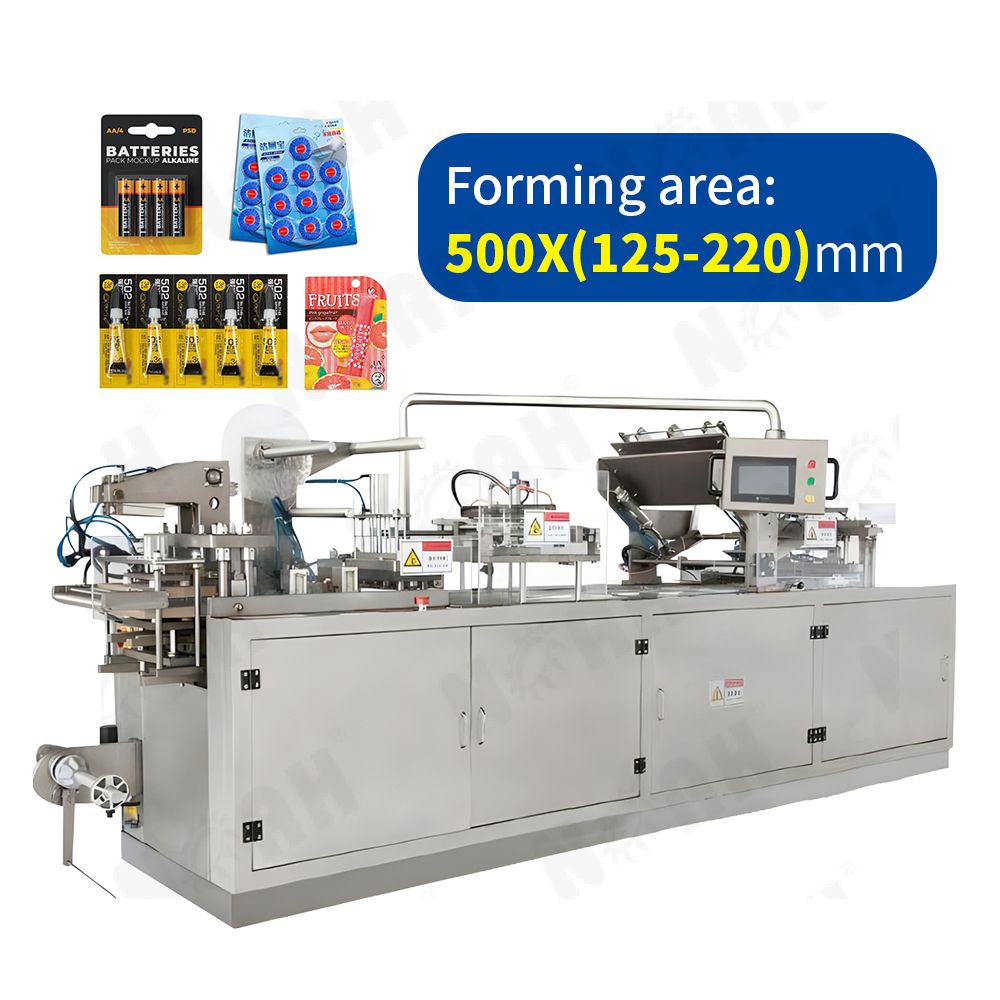

Forming area	500x(125-220)mm
Shaping area	(310-440)x(120-180)x(16-45)mm(LxWxT)
Size of machine	3800x900x1650mm

FAQ - Have any questions?

What is the DPB-500k Paper Card Blister Packing Machine?

The DPB-500k Paper Card Blister Packing Machine is an advanced packaging machine specifically designed for the packaging of products using paper card blisters. It is widely used in industries such as electronics, cosmetics, and consumer goods for the packaging of various products.

What types of products can be packaged using the DPB-500k Paper Card Blister Packing Machine?

The DPB-500k Paper Card Blister Packing Machine can package a wide range of products, including small electronic devices, cosmetics, hardware items, stationery, and other consumer goods that require individual packaging using paper card blisters.

What are the key features of the DPB-500k Paper Card Blister Packing Machine?

The key features of the DPB-500k Paper Card Blister Packing Machine include automatic feeding, precise temperature and sealing controls, adjustable packaging parameters, flexible blister size options, user-friendly interface, high-speed packaging capabilities, and the ability to handle paper card blisters.

Can the DPB-500k Paper Card Blister Packing Machine accommodate different sizes of paper card blisters?

Yes, the DPB-500k Paper Card Blister Packing Machine offers flexibility in blister size options. It can accommodate different sizes and shapes of paper card blisters, allowing for customization according to specific product requirements.

Is the DPB-500k Paper Card Blister Packing Machine suitable for environmentally friendly packaging?

Yes, the DPB-500k Paper Card Blister Packing Machine is suitable for environmentally friendly packaging. By using paper card blisters, it reduces the reliance on plastic packaging materials, making it a sustainable choice for packaging products.

Can the DPB-500k Paper Card Blister Packing Machine handle high production volumes?

Yes, the DPB-500k Paper Card Blister Packing Machine is designed for high-speed packaging and can handle high production volumes. Its efficient operation and continuous feeding system contribute to increased productivity and throughput.

Does the DPB-500k Paper Card Blister Packing Machine integrate quality control measures?

Yes, the DPB-500k Paper Card Blister Packing Machine often includes quality control features. These may include vision inspection systems, rejection of defective packs, monitoring of packaging parameters, and precise control over temperature and sealing, ensuring high-quality and consistent packaging.

What are the advantages of investing in the DPB-500k Paper Card Blister Packing Machine?

Investing in the DPB-500k Paper Card Blister Packing Machine offers several advantages. It enables efficient and reliable packaging, accommodates various blister sizes, supports environmentally friendly packaging, meets industry standards, and caters to the growing demand for paper card blister packaging across industries.

Is technical support available for the DPB-500k Paper Card Blister Packing Machine?

Yes, reliable technical support is typically available for the DPB-500k Paper Card Blister Packing Machine. Manufacturers provide assistance with installation, training, maintenance, and spare parts availability to ensure smooth operation and minimize downtime.

What are the market prospects for the DPB-500k Paper Card Blister Packing Machine?

The market prospects for the DPB-500k Paper Card Blister Packing Machine are promising. With the increasing demand for sustainable packaging solutions and the versatility of paper card blisters, the machine is well-positioned to cater to various industries and capitalize on the growing market opportunities.
