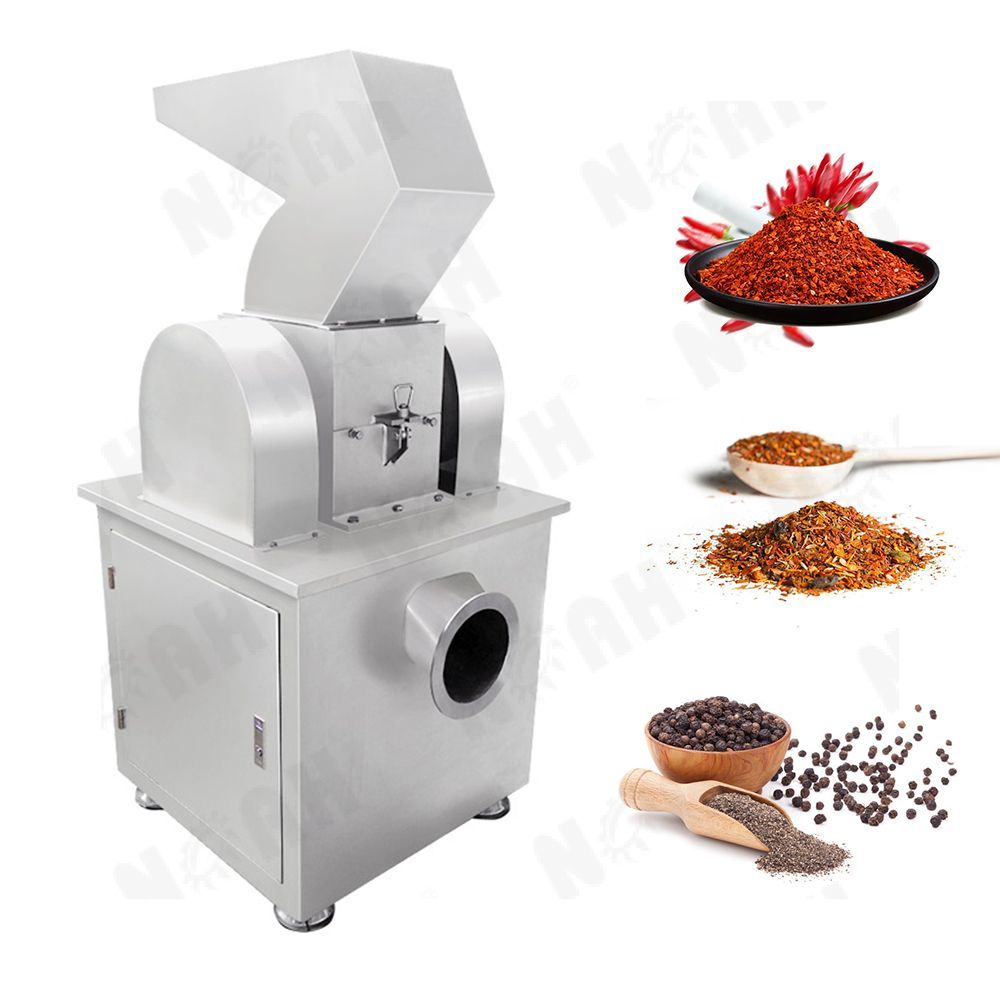

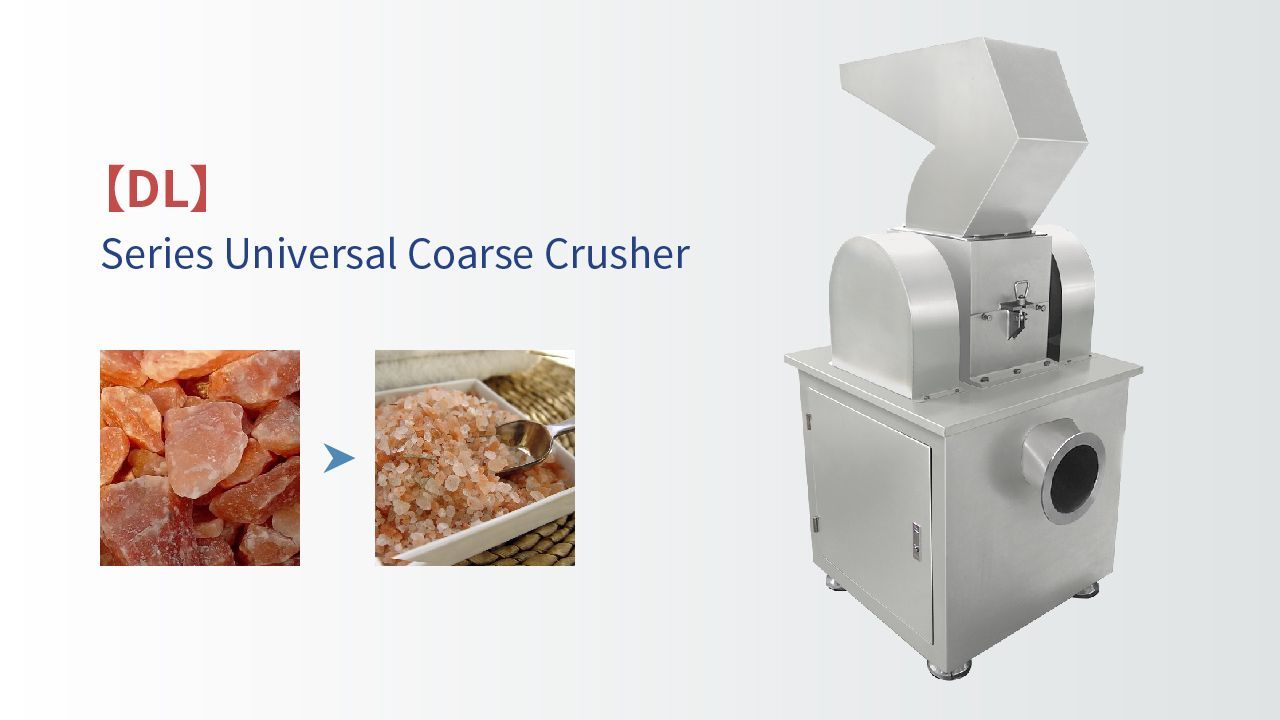

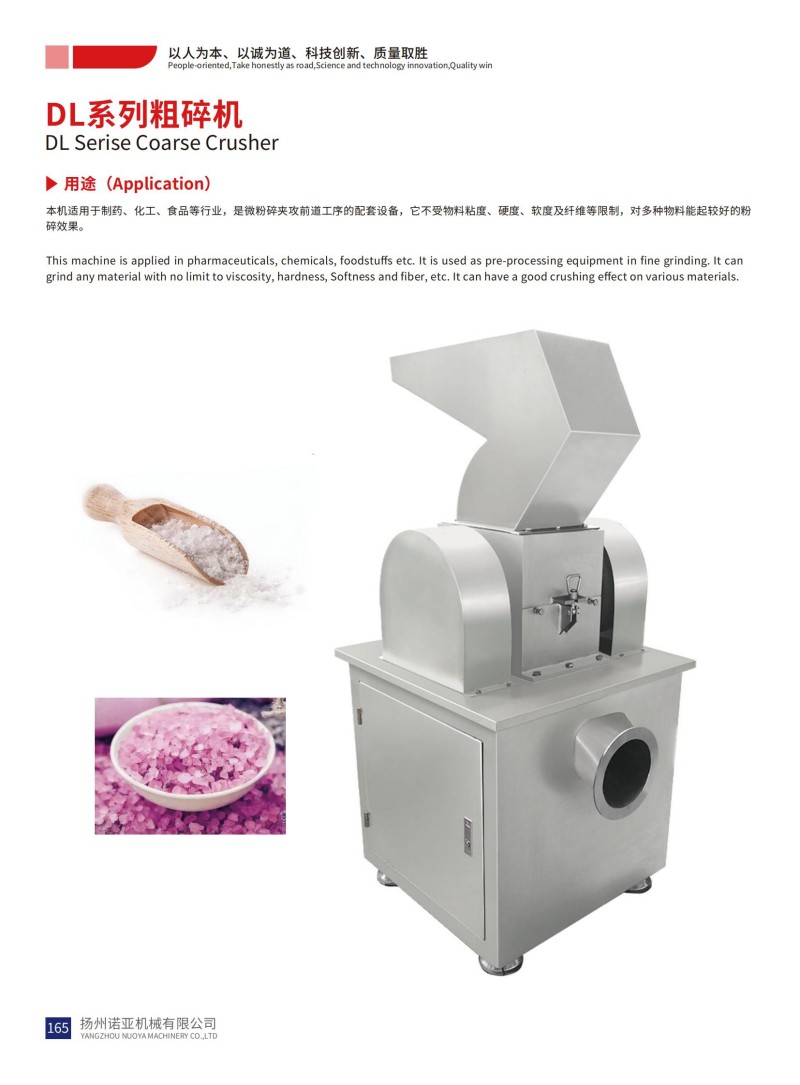

DL Series Universal Coarse Crusher
Efficient and precise pulverization for enhanced material processing and production with our advanced pulverizer machine.
Vertical crushing structure for efficient operation.
Versatility in crushing various materials.
Simultaneous cutting of fixed and movable knives for effective crushing.
Rotating knife delivers additional impact for enhanced crushing.
Automatic material flow towards the exit under the influence of rotating centrifugal force.
Designed according to GMP standards for pharmaceutical and food applications.
Constructed entirely of stainless steel for hygienic requirements.
Excellent pre-crushing performance without limitations on material viscosity, hardness, softness, or fiber content.
Description
Applications
The DL Series Universal Coarse Crusher is primarily used as supporting equipment in the pharmaceutical, chemical, and food industries. It is specifically designed for the pre-crushing process and offers excellent crushing performance for materials of varying viscosity, hardness, softness, and fiber content.
Features
1. Vertical crushing structure for efficient operation.
2. Versatility in crushing various materials.

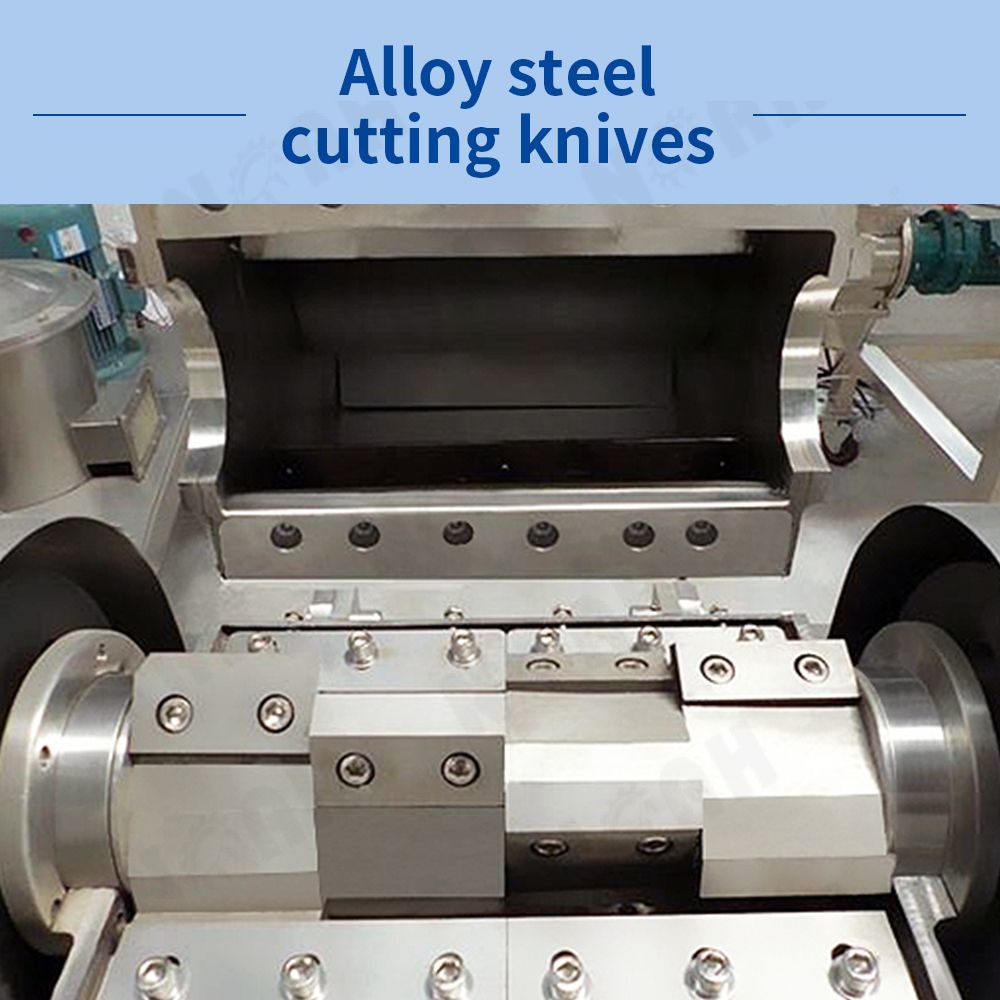

3. Simultaneous cutting of fixed and movable knives for effective crushing.
4. Rotating impact of the knife further enhances the crushing process.
5. Automatic material flow towards the exit under the influence of rotating centrifugal force.
6. Designed according to GMP standards for pharmaceutical and food applications.
7. Constructed entirely of stainless steel to meet national hygiene requirements.

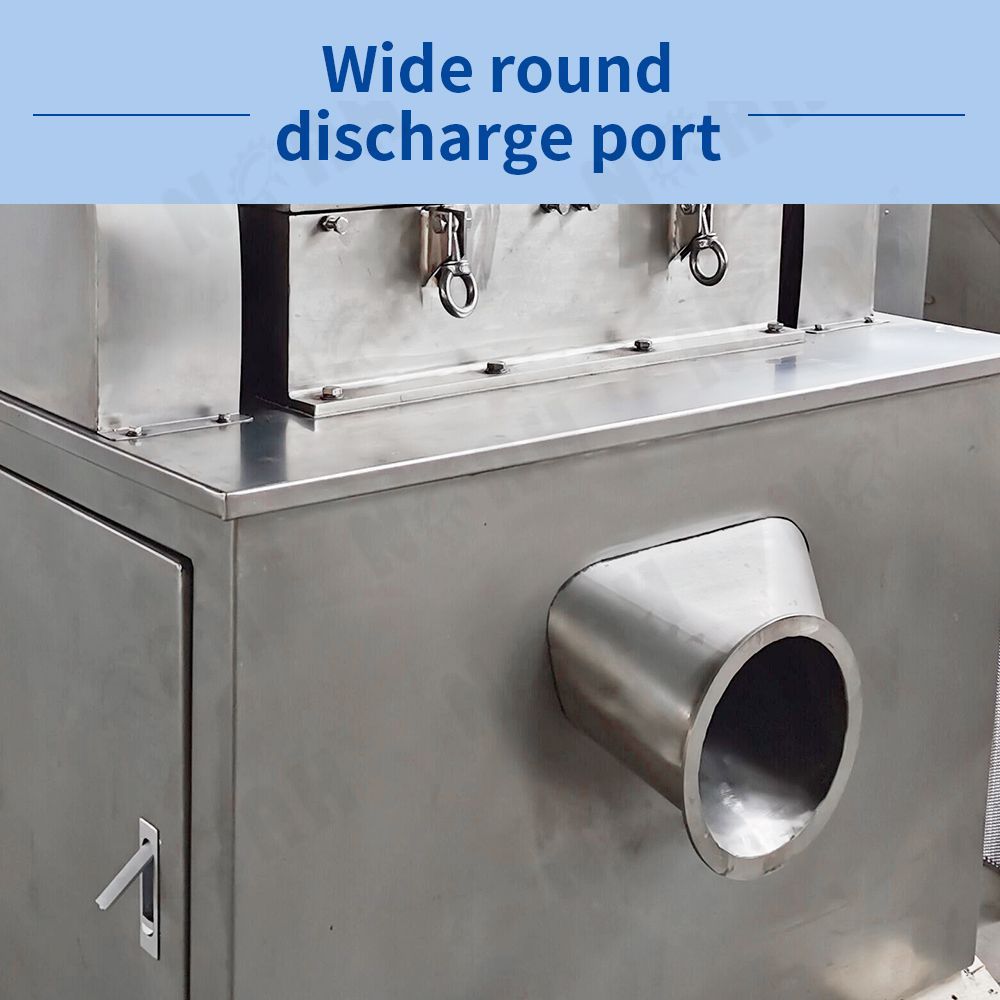

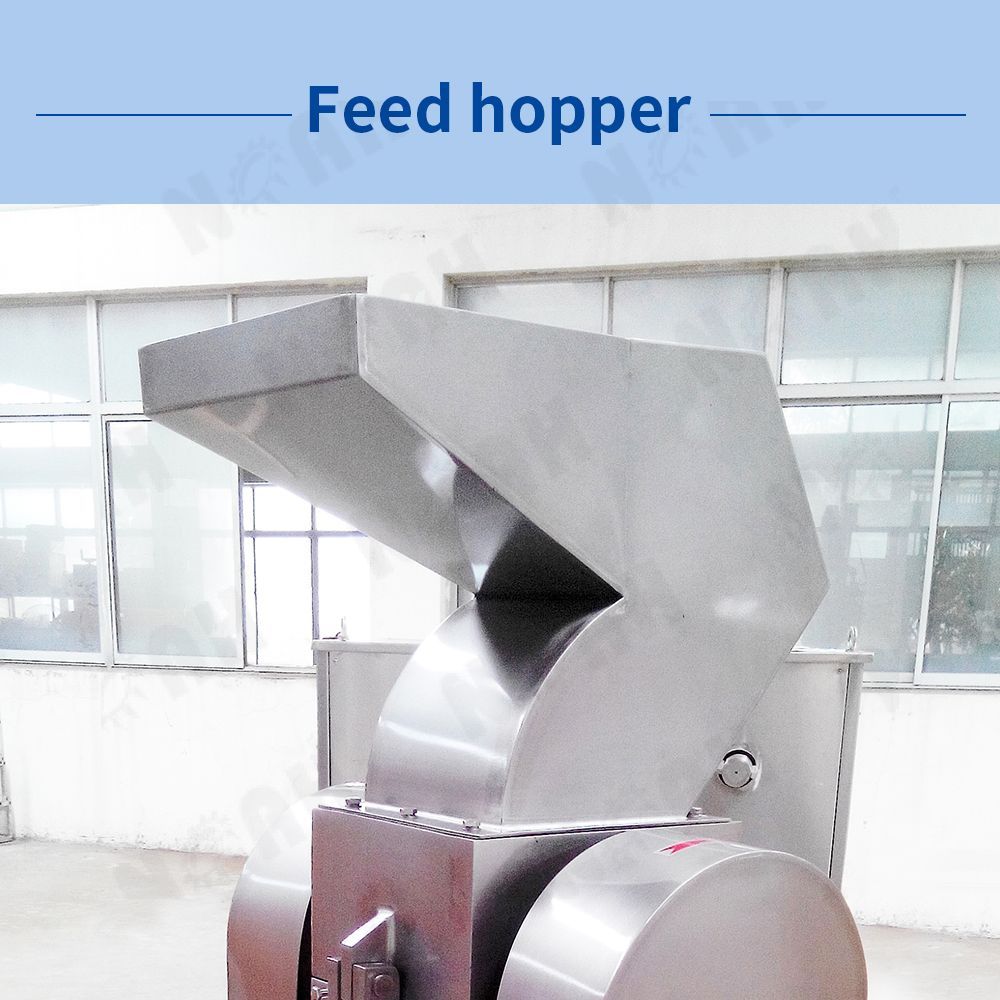

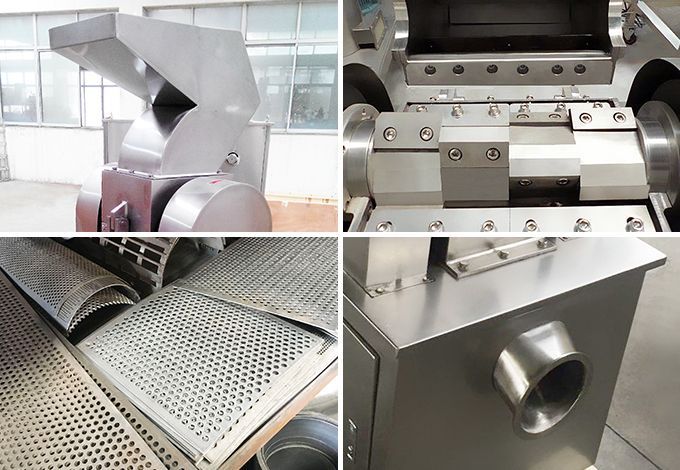

The DL Series Universal Coarse Crusher is designed to deliver effective crushing results. It operates using a vertical crushing structure, where the material is fed into the crushing chamber through a hopper. Inside the chamber, the material undergoes crushing through simultaneous cutting of both fixed and movable knives. The rotating knife further contributes to the crushing process by providing impact. As a result, the crushed material automatically flows towards the exit due to the influence of rotating centrifugal force.
The crusher is designed in compliance with GMP standards, ensuring it meets the stringent hygiene requirements of the pharmaceutical and food industries. It is constructed entirely of stainless steel, which not only enhances its durability but also ensures that the processed medicine and food meet national hygiene standards.
Product Video
Specifications
| Model | DL20 | DL40 | DL60 |
| Capacity kg/h | 50-200 | 100-500 | 150-700 |
| Feeding Size mm | ≤100 | ≤300 | ≤420 |
| Output Size mm | 0.5-20 | 0.5-20 | 0.5-20 |
| Motor Power kw | 4 | 5.5 | 11 |
| Spindle Speed rpm | 500 | 500 | 500 |
| Overall Dimensions (L*W*H) | 600*500*1100 | 780*800*1300 | 890*900*1600 |
| Weight kg | 320 | 500 | 620 |
FAQ - Have any questions?
What is DL Series Universal Coarse Crusher?
The DL Series Universal Coarse Crusher is a type of crushing machine designed for coarse grinding and crushing of various materials.
What are the key features of the DL Series Universal Coarse Crusher?
The key features of the DL Series Universal Coarse Crusher include high crushing efficiency, easy operation, adjustable particle size, robust construction, and low maintenance.
What materials can be processed using the DL Series Universal Coarse Crusher?
The DL Series Universal Coarse Crusher can process a wide range of materials, including but not limited to solid chemicals, pharmaceuticals, food products, minerals, plastics, and agricultural products.
What is the working principle of the DL Series Universal Coarse Crusher?
The DL Series Universal Coarse Crusher operates on the principle of impact crushing, where the material is fed into the crushing chamber and subjected to high-speed impact forces generated by the rotating hammers.
What are the available sizes and capacities of the DL Series Universal Coarse Crusher?
The DL Series Universal Coarse Crusher is available in various sizes and capacities to meet different crushing requirements. Please refer to the product specifications for detailed information.
Is the DL Series Universal Coarse Crusher suitable for continuous operation?
Yes, the DL Series Universal Coarse Crusher is designed for continuous operation, allowing for high-volume processing of materials.
Can the DL Series Universal Coarse Crusher be customized for specific applications?
Yes, DL Series Universal Coarse Crushers can be customized to meet specific application requirements, such as different material feeding systems, discharge options, and additional safety features.
What safety measures are incorporated in the DL Series Universal Coarse Crusher?
The DL Series Universal Coarse Crusher is equipped with safety features such as overload protection, interlocking mechanisms, and safety guards to ensure operator safety during operation.
How do I maintain the DL Series Universal Coarse Crusher?
Regular maintenance of the DL Series Universal Coarse Crusher includes cleaning, lubrication of moving parts, and inspection of wear components. Detailed maintenance instructions can be found in the user manual.
Where can I find technical support or spare parts for the DL Series Universal Coarse Crusher?
For technical support and spare parts inquiries, you can contact Noah(yznoah@noah-pm.com). We will provide the necessary assistance and information.
