WFJ Series High Efficiency Micronizer
Efficient and precise pulverization for enhanced material processing and production with our advanced pulverizer machine.
Wide application in various industries.
Complete grinding, classifying, and production system.
Pollution-free operation after dedusting.
Sanitary and safe design.
Efficient handling of heat-sensitive and sticky materials.
Effective heat dissipation with leaf structure.
Strong air flow for material expulsion.
Increased capacity with adjustable powder fineness.
Description
Applications
The WFJ Series High-Efficiency Micronizer is extensively used in the chemistry, dyestuff, dope, pharmaceutical, and foodstuff industries. It is specially designed for grinding, classifying, and production, providing a complete solution for sanitation, safety, and handling heat-sensitive and sticky materials.
Features

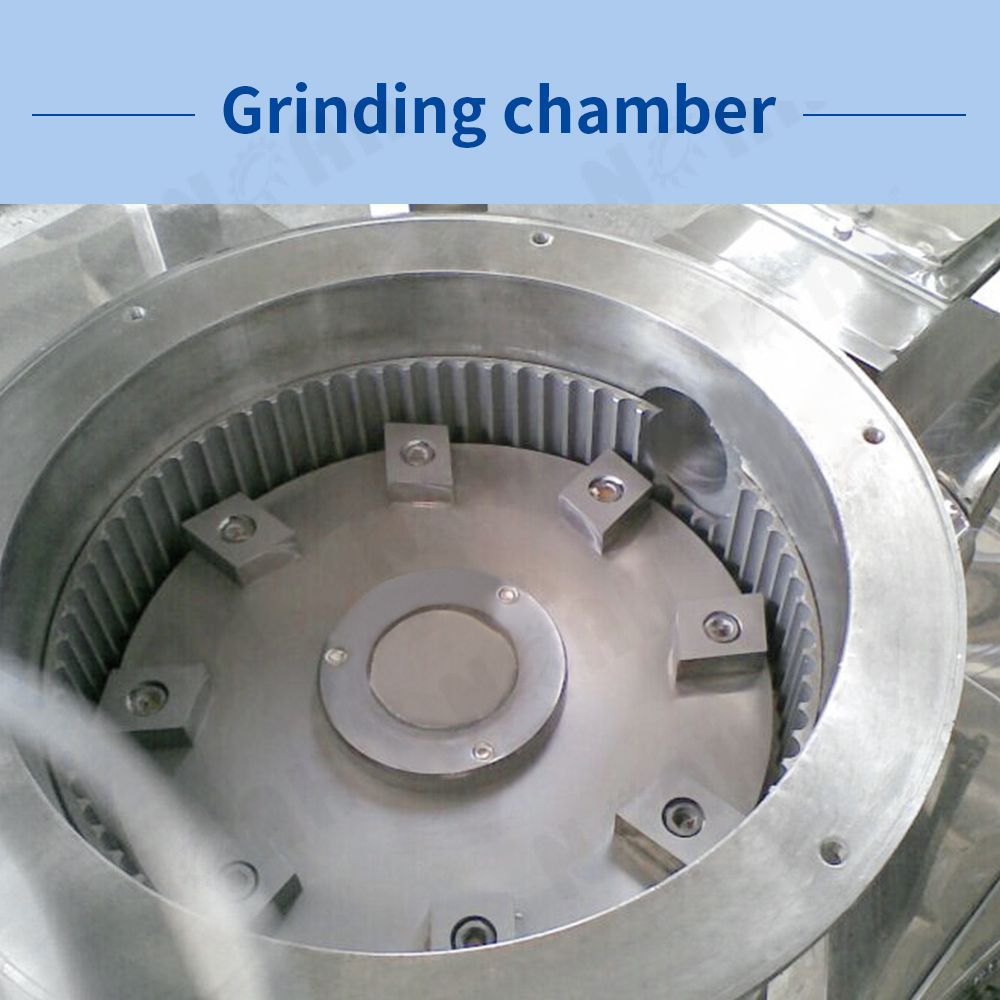

Leaf structure in the machine chamber facilitates efficient heat dissipation.
Minimal heat generated during operation to preserve material characteristics.
Strong air flow expels materials effectively, making it suitable for pulverizing heat-sensitive and sticky substances.
Can serve as a substitute for a universal crusher in food applications.
Fine powder is blown out of the grinding chamber by the airflow, increasing machine capacity.
Adjustable powder fineness through the use of sieves.
The WFJ Series High Efficiency Micronizer features a unique leaf structure in its machine chamber. During operation, the rotary leaves blow out the air in the grinding chamber, effectively dissipating heat and maintaining the integrity of the materials being processed. The strong air flow within the chamber expels the materials, allowing for efficient pulverization of heat-sensitive and sticky substances.
In food applications, this micronizer can serve as a viable alternative to a universal crusher. By utilizing the pull of the fan, the air flow within the grinding chamber blows out fine powder, which can be adjusted to the desired fineness using sieves. This not only ensures efficient grinding but also increases the overall capacity of the machine.
Technical Parameters
| Model | WFJ-15 | WFJ-30 | WFJ-60 |
| Capacity kg/h | 30-350kg/h | 30-800kg/h | 500-1200kg/h |
| Main speed | 5500r/min | 3800r/min | 2900r/min |
| Feeding size | <10mm | <15mm | <15mm |
| Discharge size | 80-450mesh | 80-450mesh | 80-450mesh |
| Power of motor | 13.5kw | 46kw | 84.15kw |
| Overall size | 4200*1250*2700 | 6640*1300*3960 | 7500*2300*4530 |
| Weight | 1300kg | 1500kg | 3200kg |
FAQ - Have any questions?
What is the WFJ Series High Efficiency Micronizer?
The WFJ Series High Efficiency Micronizer is a type of grinding machine specifically designed for micronizing or fine grinding various materials into extremely small particles.
What are the key features of the WFJ Series High Efficiency Micronizer?
The key features of the WFJ Series High Efficiency Micronizer include high grinding efficiency, precise particle size control, low energy consumption, compact design, easy operation, and versatile application capabilities.
What materials can be micronized using the WFJ Series High Efficiency Micronizer?
The WFJ Series High Efficiency Micronizer can micronize a wide range of materials, including but not limited to chemicals, pharmaceuticals, minerals, food products, and synthetic resins.
What is the working principle of the WFJ Series High Efficiency Micronizer?
The WFJ Series High Efficiency Micronizer operates on the principle of high-speed impact grinding, where the material is fed into the grinding chamber and subjected to high-speed impact forces generated by the rotating hammers or pins.
What are the available sizes and capacities of the WFJ Series High Efficiency Micronizer?
The WFJ Series High Efficiency Micronizer is available in various sizes and capacities to meet different micronizing requirements. Please refer to the product specifications for detailed information.
Is the WFJ Series High Efficiency Micronizer suitable for continuous operation?
Yes, the WFJ Series High Efficiency Micronizer is designed for continuous operation, allowing for high-volume micronizing of materials.
Can the WFJ Series High Efficiency Micronizer be customized for specific applications?
Yes, the WFJ Series High Efficiency Micronizer can be customized to meet specific application requirements, such as different material feeding systems, discharge options, and additional features like dust collection or cooling systems.
What safety measures are incorporated in the WFJ Series High Efficiency Micronizer?
The WFJ Series High Efficiency Micronizer is equipped with safety features such as overload protection, interlocking mechanisms, and safety guards to ensure operator safety during operation.
How do I maintain the WFJ Series High Efficiency Micronizer?
Regular maintenance of the WFJ Series High Efficiency Micronizer includes cleaning, lubrication of moving parts, and inspection of wear components. Detailed maintenance instructions can be found in the user manual.
Where can I find technical support or spare parts for the WFJ Series High Efficiency Micronizer?
For technical support and spare parts inquiries, you can contact NOAH(yznoah@noah-pm.com). We will provide the necessary assistance and information.
