Description

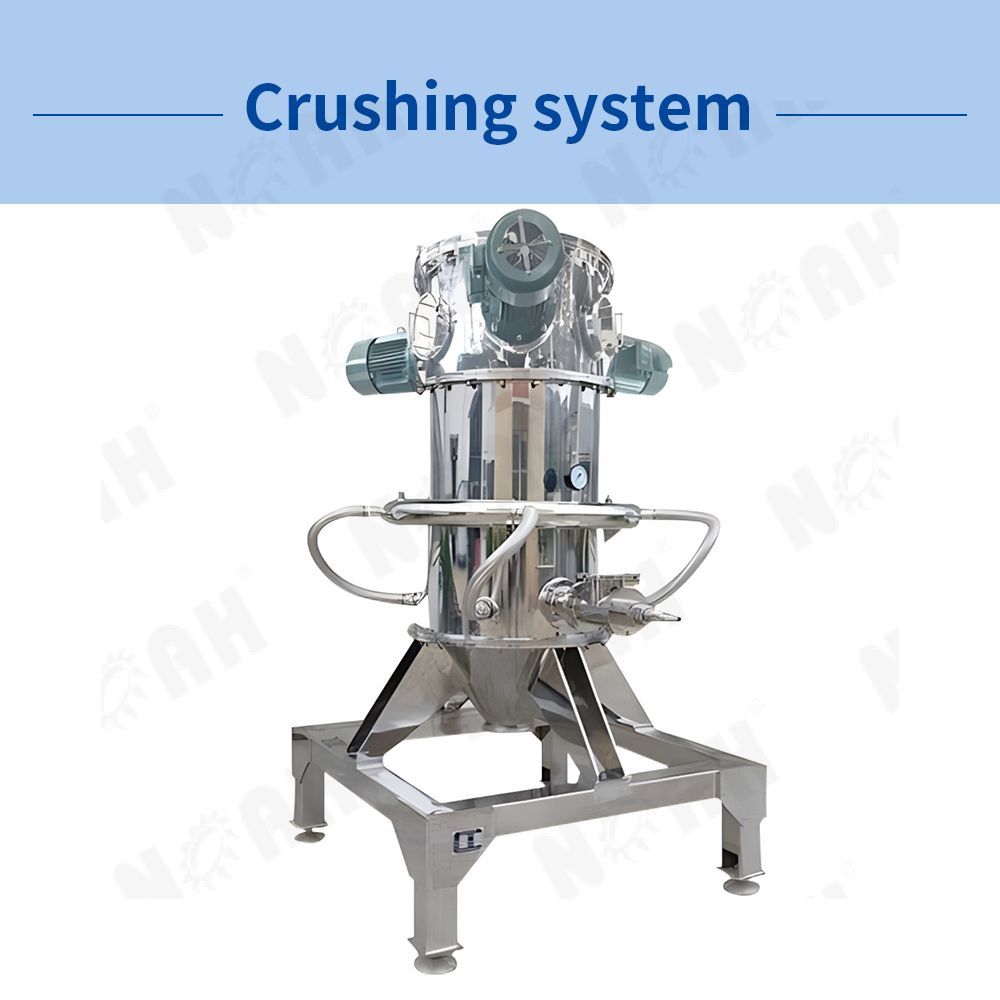

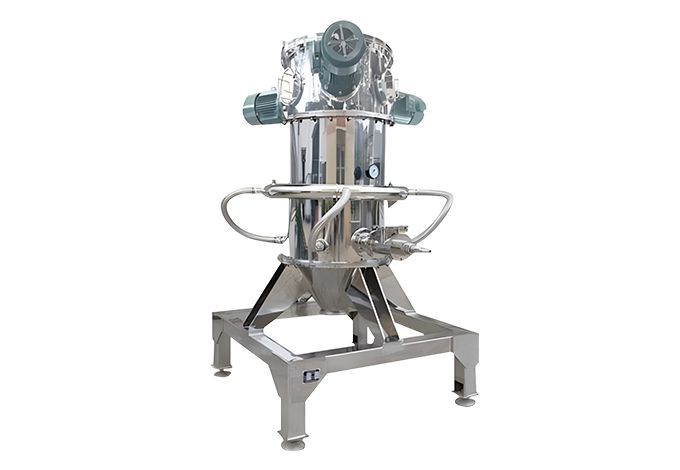

GTJ Series · All Ceramics Fluid-bed Jet Mill

The QFJ Series · All Ceramics Fluid-bed Jet Mill operates based on a "collision type" crushing principle, utilizing compressed gas with high energy utilization. The high-speed airflow generated by the pulverizing nozzles uniformly distributes the working medium, which accelerates the refined particles. These particles are then screened by a high-speed classifying rotor in the classification chamber, ensuring a narrow distribution range without large particles.

Key components, including the feeding mechanism, cavity liner, nozzle, classifying rotor, sealing mechanism, and discharge system, feature wear-resistant ceramic protection. This design meets the requirements of high-tech materials and prevents metal impurity contamination. The all-ceramic high-speed classifying rotor, a patented product, enables precise control over classification granularity.

The QFJ Series · All Ceramics Fluid-bed Jet Mill can be tailored to specific industry needs, offering models in 304, 316, 316L, or other special wear-resistant steel. It can also facilitate closed-circuit pulverization and inert gas protection as per material characteristics. With its durability and ability to achieve fine particle size distribution, it is widely used in various applications, including high-tech ceramics, lithium batteries, fine chemicals, electronics, and more.

This equipment integrates seamlessly into automated production lines, ensuring no dust leakage and providing a green and environmentally friendly solution. It reduces labor intensity and offers intelligent online and remote control capabilities.

Technical Data

Specifications	QFJ-100 (Micro type/Lab-scale)	QFJ-200	QFJ-250	QFJ-350	QFJ-500	QFJ-630	QFJ-800-2	QFJ-800-3
Gas consumption(m³/min）	1.5	3	6	10	20	30	40	60
Crushing pressure(Mpa)	0.4～1.2	0.4～1.2	0.4～1.2	0.4～1.2	0.4～1.2	0.4～1.2	0.4～1.2	0.4～1.2
Feed size(mesh)	60～325	60～325	60～325	60～325	60～325	60～325	60～325	60～325
Output particle size(D50,μm)	0.5～30	0.5～30	0.5～30	0.5～30	0.5～30	0.5～30	0.5～30	0.5～30
Capacity(kg/h)	0.3～10	1～30	3～80	5～200	10～400	20～600	30～1000	80～3000
Air compressor power(kW)	11～15	22～30	45～55	75～90	132～160	200～250	250～300	400～450
Main power(kW)	1.1	2.2	3	4	5.5	11	11	16.5

FAQ - Have any questions?

What is the QFJ Series · All Ceramics Fluid-bed Jet Mill?

The QFJ Series · All Ceramics Fluid-bed Jet Mill is a specialized machine used for grinding and pulverizing materials using high-speed jets of compressed air or gas.

What are the key features of the QFJ Series · All Ceramics Fluid-bed Jet Mill?

The key features of the QFJ Series · All Ceramics Fluid-bed Jet Mill include all-ceramic construction, high grinding efficiency, precise particle size control, low contamination, easy operation, and versatile application capabilities.

How does the QFJ Series · All Ceramics Fluid-bed Jet Mill achieve high grinding efficiency?

The QFJ Series · All Ceramics Fluid-bed Jet Mill utilizes high-speed jets of compressed air or gas to create a turbulent zone within the grinding chamber. This turbulence enhances particle-to-particle collisions, resulting in efficient grinding and pulverization.

Can the QFJ Series · All Ceramics Fluid-bed Jet Mill control the particle size of the ground materials?

Yes, the QFJ Series · All Ceramics Fluid-bed Jet Mill offers precise particle size control. It allows users to adjust the operating parameters, such as feed rate, gas pressure, and classifier speed, to achieve the desired particle size distribution for their specific application requirements.

What are the advantages of the all-ceramic construction of the QFJ Series · All Ceramics Fluid-bed Jet Mill?

The all-ceramic construction of the QFJ Series · All Ceramics Fluid-bed Jet Mill ensures low contamination and high purity of the ground materials. It is particularly suitable for grinding and pulverizing sensitive materials, such as pharmaceuticals, chemicals, and advanced ceramics.

Is the QFJ Series · All Ceramics Fluid-bed Jet Mill easy to operate?

Yes, the QFJ Series · All Ceramics Fluid-bed Jet Mill is designed for easy operation. It features user-friendly controls, intuitive interfaces, and automated or semi-automated operation modes, depending on the specific model.

What materials can be processed using the QFJ Series · All Ceramics Fluid-bed Jet Mill?

The QFJ Series · All Ceramics Fluid-bed Jet Mill can process a wide range of materials, including powders, granules, and agglomerates, such as pharmaceutical ingredients, chemicals, ceramics, and other similar substances.

Does the QFJ Series · All Ceramics Fluid-bed Jet Mill require additional equipment for material feeding and collection?

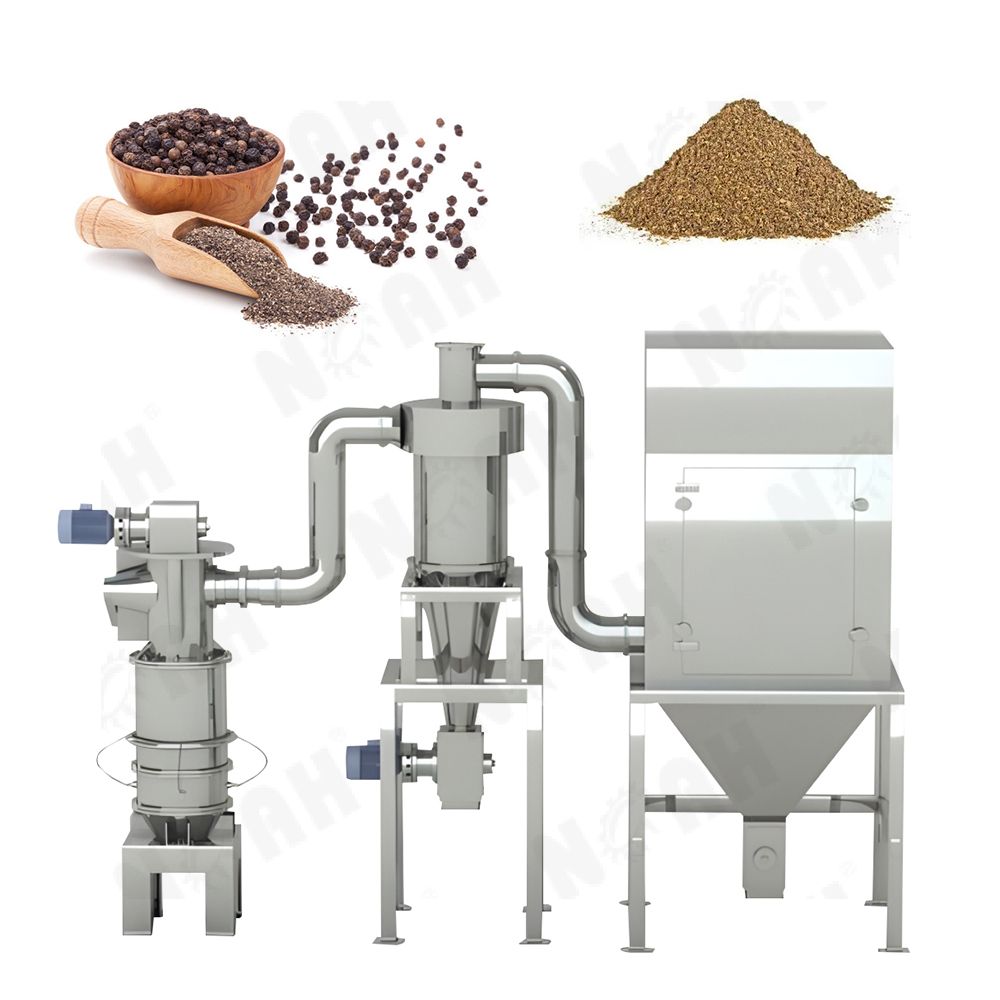

Yes, the QFJ Series · All Ceramics Fluid-bed Jet Mill typically requires additional equipment, such as a feeding system and a cyclone or bag filter for material collection. These accessories ensure efficient material handling and dust control during the grinding process.

Can the QFJ Series · All Ceramics Fluid-bed Jet Mill be used for heat-sensitive materials?

Yes, the QFJ Series · All Ceramics Fluid-bed Jet Mill is suitable for grinding heat-sensitive materials. The low-temperature grinding environment created by the compressed air or gas jets helps to minimize heat generation and maintain the integrity of heat-sensitive substances.

Where can I find technical support or spare parts for the QFJ Series · All Ceramics Fluid-bed Jet Mill?

Technical support and spare parts for the QFJ Series · All Ceramics Fluid-bed Jet Mill can be obtained by contacting NOAH(yznoah@noah-pm.com). They will provide the necessary assistance, troubleshooting, and supply of genuine spare parts to ensure optimal performance and longevity of the equipment.
