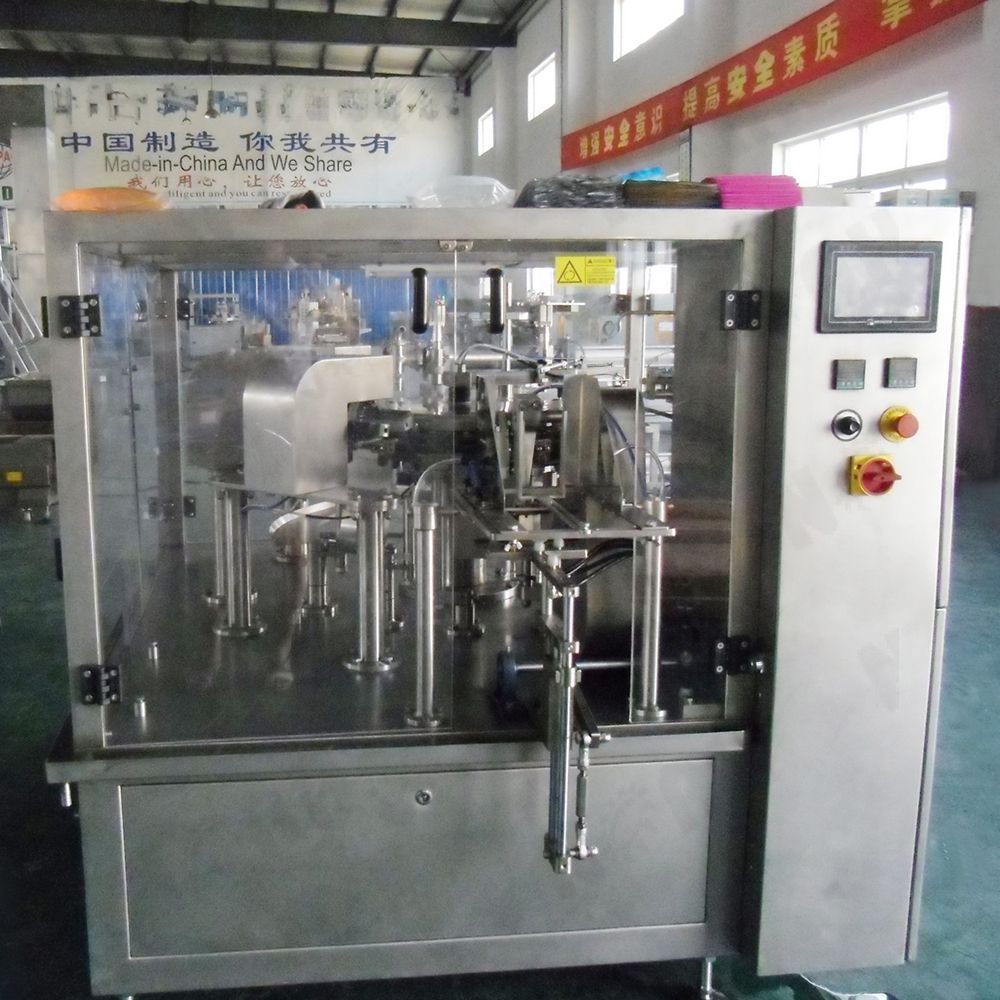

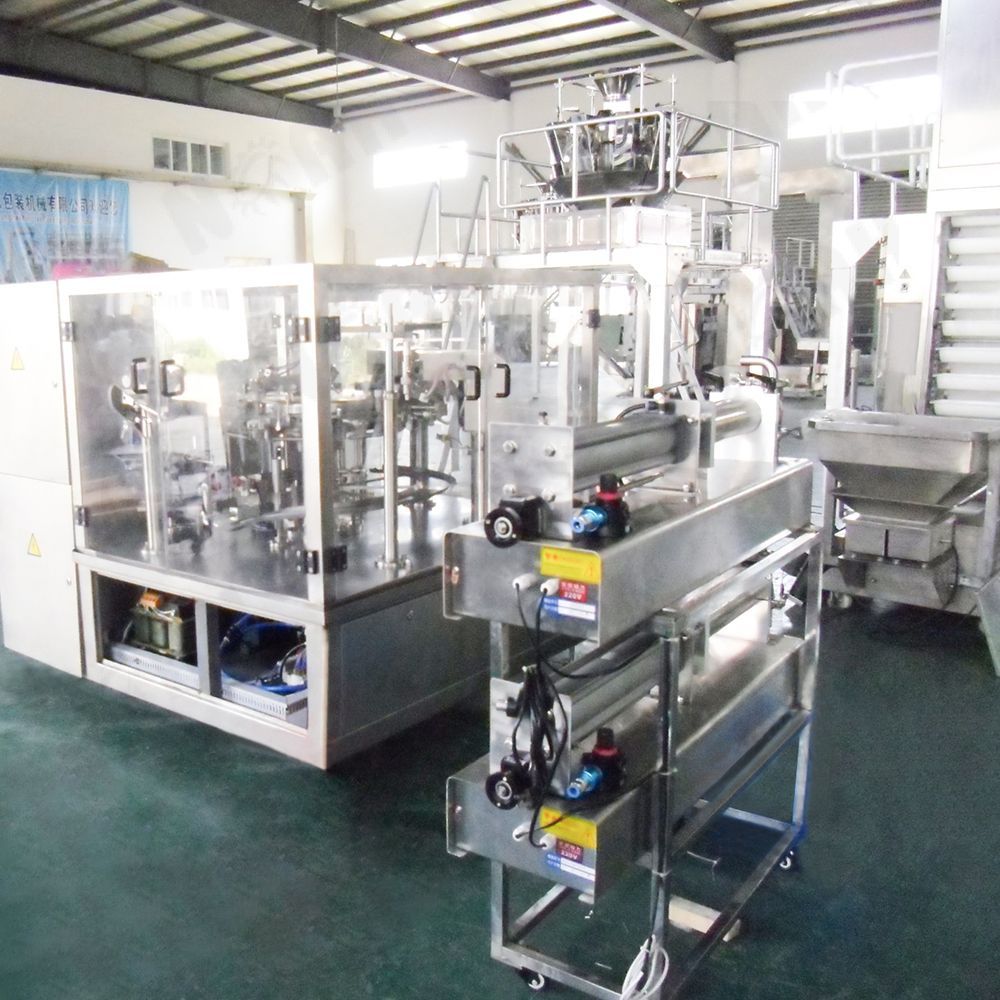

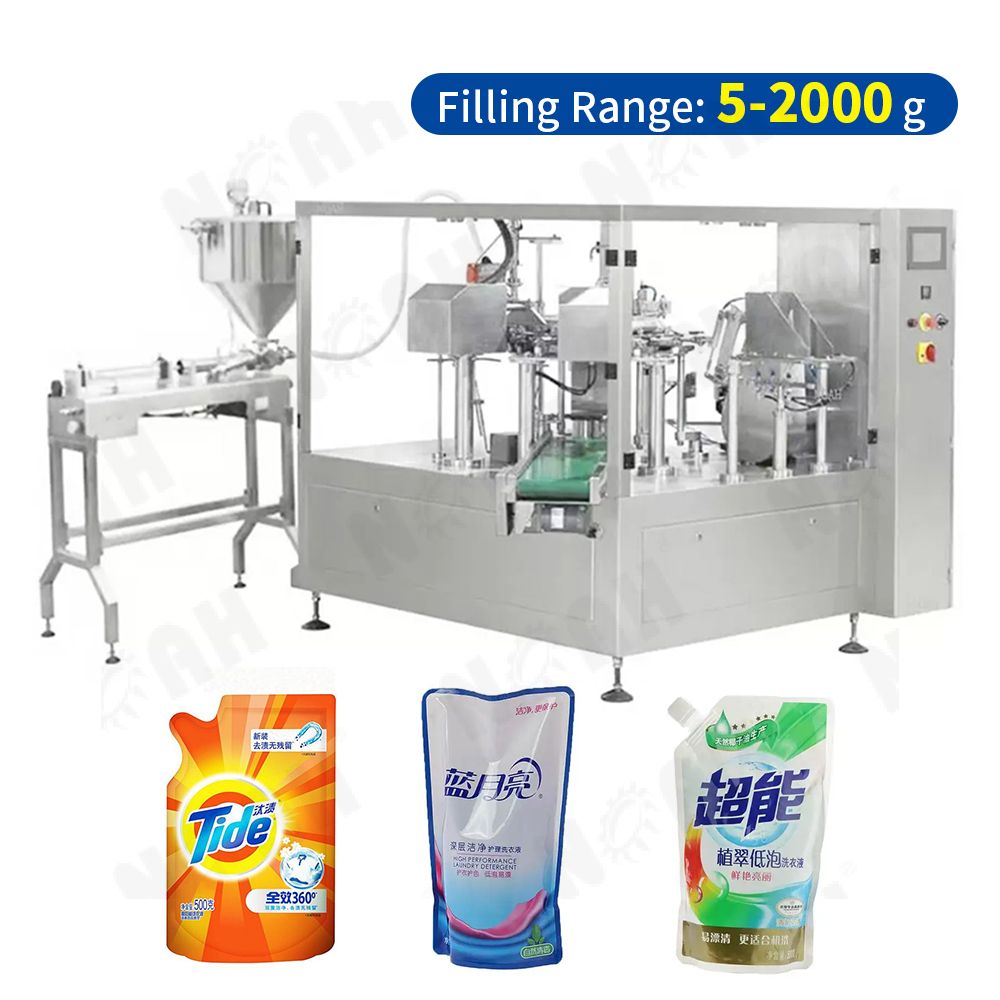

LGL Series Liquid Given Bag Packing Machine

Description

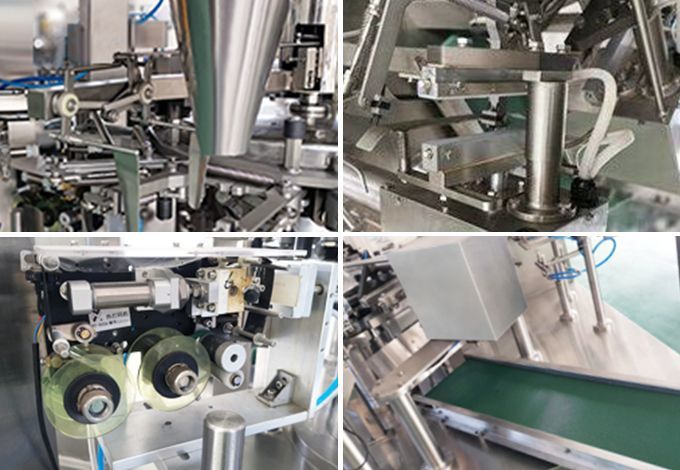

HDK Fully Automatic Vertical Packaging Machine ( Back-seal, Three-side-seal, Right Angle )

LGL Series liquid bag packaging machine is a comprehensive set that includes a bag feeding machine, liquid filling machine, and sauce filling machine. This system is specifically designed for the measurement and packaging of liquids and sauces, such as fruit juice, tomato sauce, flavor sauce, chili sauce, liquid soap, and detergent. The machine incorporates advanced features for easy operation, automatic checking, safety measures, adjustable bag width, and efficient performance.

Specifications

Model	LGL200	LGL300
Working Position	Six position
Pouch Material	Laminated film, PE, PP etc
Pouch Pattern	Zipper bags, Spout bags, Stand-up pouches, Plane bag, Handbags, Zipper Stand-up pouches bag
Pouch Size	W: 100-210mm L: 100-350mm	W: 200-310mm L: 100-450mm
Filling Range	5-1500g	100-2000g
Weighing Accuracy	±1%
Speed	25-35 Bags/min (Speed depends on the product status and filling weight)
Voltage	3-Phase 380V 50HZ/60HZ
Power	3.0kw	3.2kw
Compress Air	0.6m3/min (Compress air is supplied by user)

FAQ - Have any questions?

What types of liquids can the LGL machine handle?

LGL machine is suitable for packaging a wide range of liquid products, including water-based liquids, oils, sauces, beverages, chemicals, and viscous fluids.

Can it handle high-viscosity liquids?

Yes, the LGL series is designed to handle both low-viscosity and high-viscosity liquids, such as honey, syrups, and pastes, with adjustable pump or filling systems.

What bag sizes does it support?

The machine supports various bag sizes, typically ranging from small sachets to larger pouches, depending on the model and customization.

Is the machine easy to clean?

Yes, the LGL machine features a hygienic design with easy-to-clean components, making it ideal for food, beverage, and pharmaceutical applications.

How fast is the production speed?

The production speed varies based on the liquid type and bag size but typically ranges from 20 to 60 bags per minute, ensuring efficient operation.

Does it seal the bags properly?

Yes, the machine uses advanced heat-sealing technology to ensure strong, leak-proof seals for all types of liquid-filled bags.

Can it print batch numbers or dates on the bags?

Yes, the LGL series can be equipped with a printing device to add batch numbers, expiration dates, or other custom information during packaging.

Is the machine customizable?

Yes, the LGL machine can be customized with different filling systems, sealing options, and additional features like nitrogen flushing for oxygen-sensitive products.

What kind of maintenance is required?

Regular cleaning of the filling nozzles and checking of sealing components are recommended. The machine is designed for minimal maintenance with durable parts.

What warranty and support are provided?

LGL machine typically comes with a one-year warranty and includes technical support, spare parts availability, and optional on-site service for troubleshooting.
