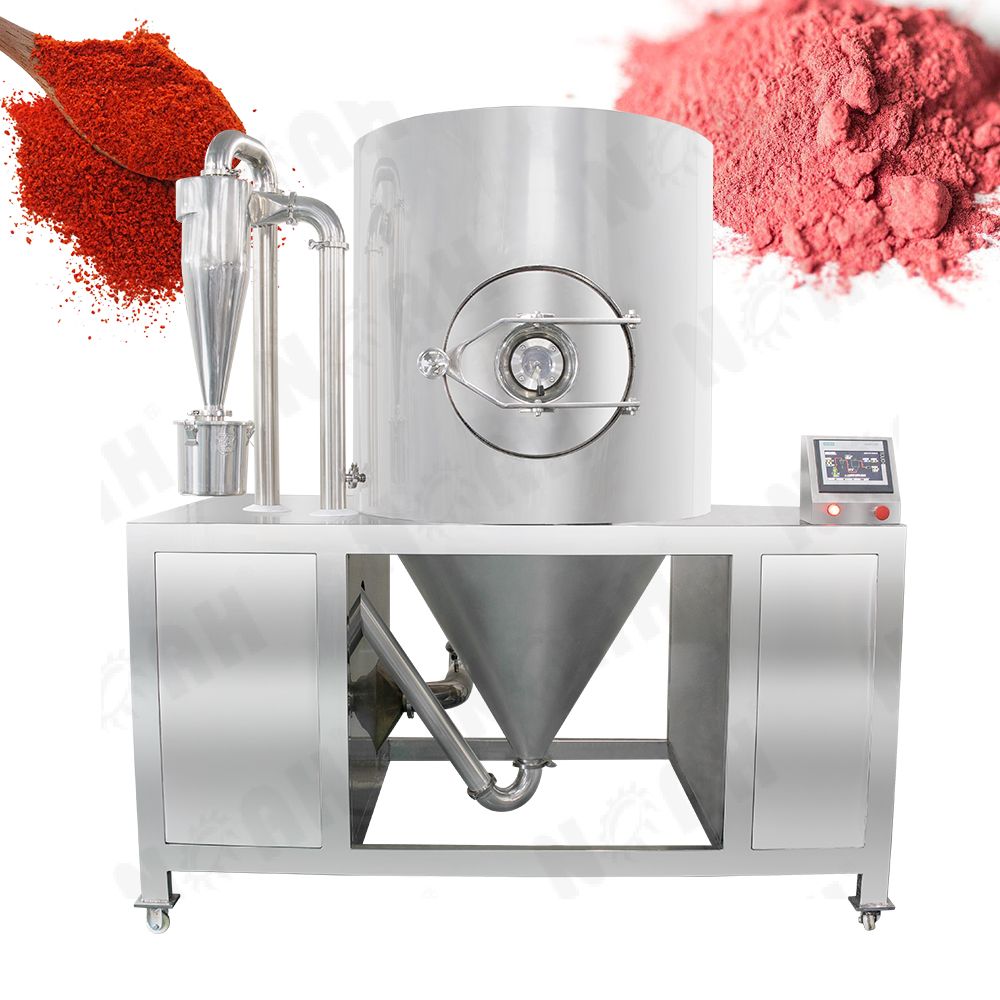

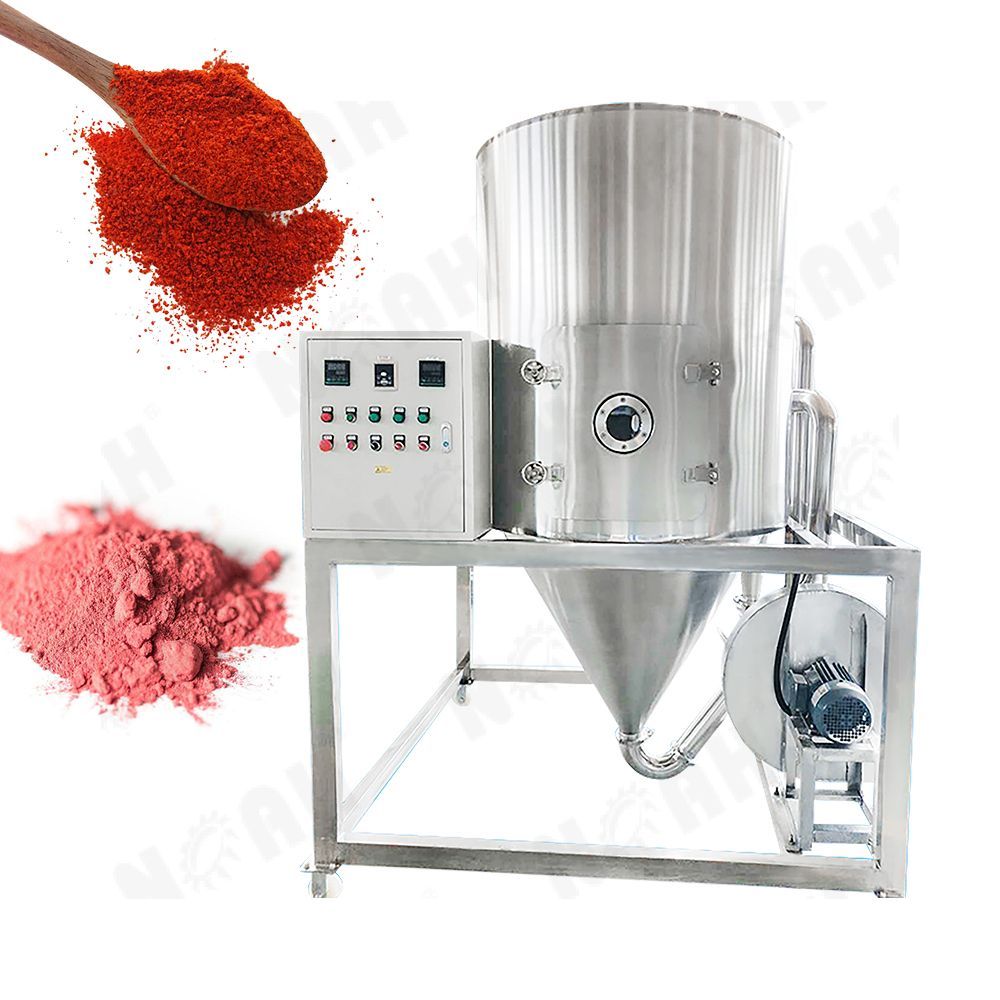

LPG Series High-speed Centrifugal Spray Dryer

Product Description

LPG spray dryer is a cutting-edge equipment designed for liquid shaping and drying applications. It utilizes atomization technology to increase the surface area of the material liquid significantly, enabling rapid evaporation of 95% to 98% of moisture in a hot air stream. This feature is particularly beneficial for thermal-sensitive materials. The equipment simplifies the production process by eliminating the need for mechanical separation of raw materials beforehand, allowing for the direct drying of liquids with varying moisture content into powder products in a single pass.

Specification

TYPE		LPG-5	LPG-25	LPG-50	LPG-150	LPG-200-2000
Temperature of Inlet Air	℃	140~350Self-control
Temperature of Outlet Air	℃	80-90
Evaporated	kg/h	5	25	50	150	200-2000
Transmitted of Centrifugal Spray Sprinkler	-	Compressed Air	By Machine
Rotating Speed	rpm	25000	18000	18000	15000	8000-15000
Dia. of Atomizing Disk	mm	50	100	120	150	180-340
Heat Source	-	Electricity	Electricity+ Steam	Electricity+ Steam, Oil Fuel, Gas
Powder of Electric Heater	kw	9	36	63	99	-
Overall Dimensions	m	1.80.932.2	32.74.26	3.73.25.1	5.54.57	-
Yield of Dry Powder	%	≥95	≥95	≥95	≥95	≥95

FAQ - Have any questions?

What is the LPG Series High-speed Centrifugal Spray Dryer?

LPG Series High-speed Centrifugal Spray Dryer is an efficient spray drying equipment that uses a high-speed rotating centrifugal atomizer to atomize liquid materials into tiny droplets, which are then rapidly dried by hot air to produce powdered or granular products.

How efficient is the drying process of this equipment?

LPG Series High-speed Centrifugal Spray Dryer boasts extremely high drying efficiency, capable of converting large volumes of liquid materials into dried products in a short period, suitable for large-scale production.

What types of materials are suitable for this equipment?

This equipment is suitable for various materials, including solutions, emulsions, suspensions, and pumped pastes, especially for materials that require rapid drying and have specific requirements for particle shape and size.

How can the particle size of the product be adjusted?

The particle size of the product can be controlled by adjusting parameters such as the rotational speed of the centrifugal atomizer, feed rate, hot air temperature, and flow rate to meet different production needs.

Is the operation of this equipment simple and convenient?

LPG Series High-speed Centrifugal Spray Dryer features an advanced control system with a high degree of automation and ease of operation, requiring only minimal training to master.

Is the equipment stable and reliable during operation?

Made with high-quality materials and precision manufacturing techniques, this equipment offers excellent stability and reliability, capable of running continuously for extended periods without malfunctions.

Is the maintenance and servicing of the equipment convenient?

LPG Series High-speed Centrifugal Spray Dryer is designed with a reasonable structure, making maintenance and servicing easy. Regular inspections and replacements of key components ensure long-term stable operation.

Does this equipment meet environmental requirements?

Equipped with an advanced exhaust gas treatment system, this equipment effectively reduces dust and harmful gas emissions, complying with environmental regulations and contributing to environmental protection.

How do I select the right model for my needs?

Selecting the appropriate model requires consideration of factors such as material properties, drying requirements, and production scale. Consulting with a professional equipment supplier is recommended to obtain the most suitable selection advice.

What is the price range for this equipment?

The price of the LPG Series High-speed Centrifugal Spray Dryer varies depending on factors such as model, configuration, and production scale. Detailed consultation with the supplier is recommended to obtain the most accurate quotation information.
