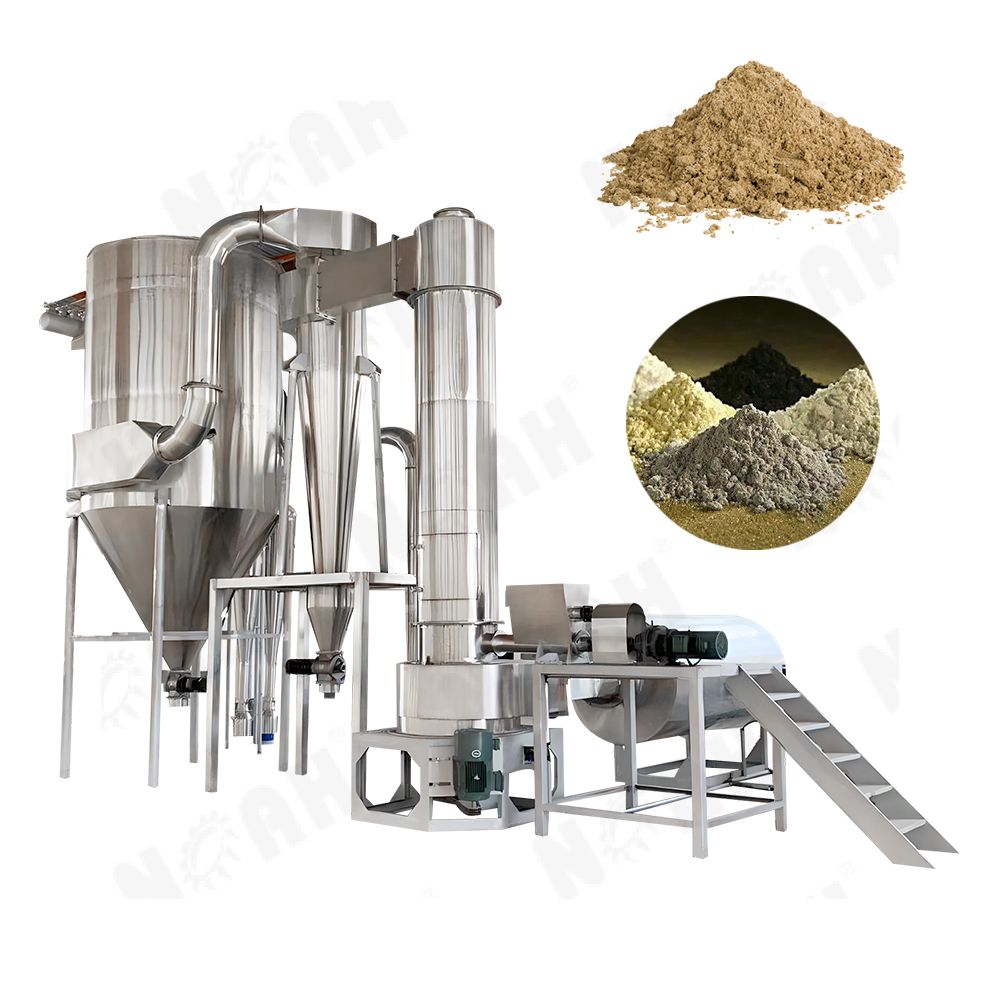

XSG Series Spin Flash Dryer

Product Description

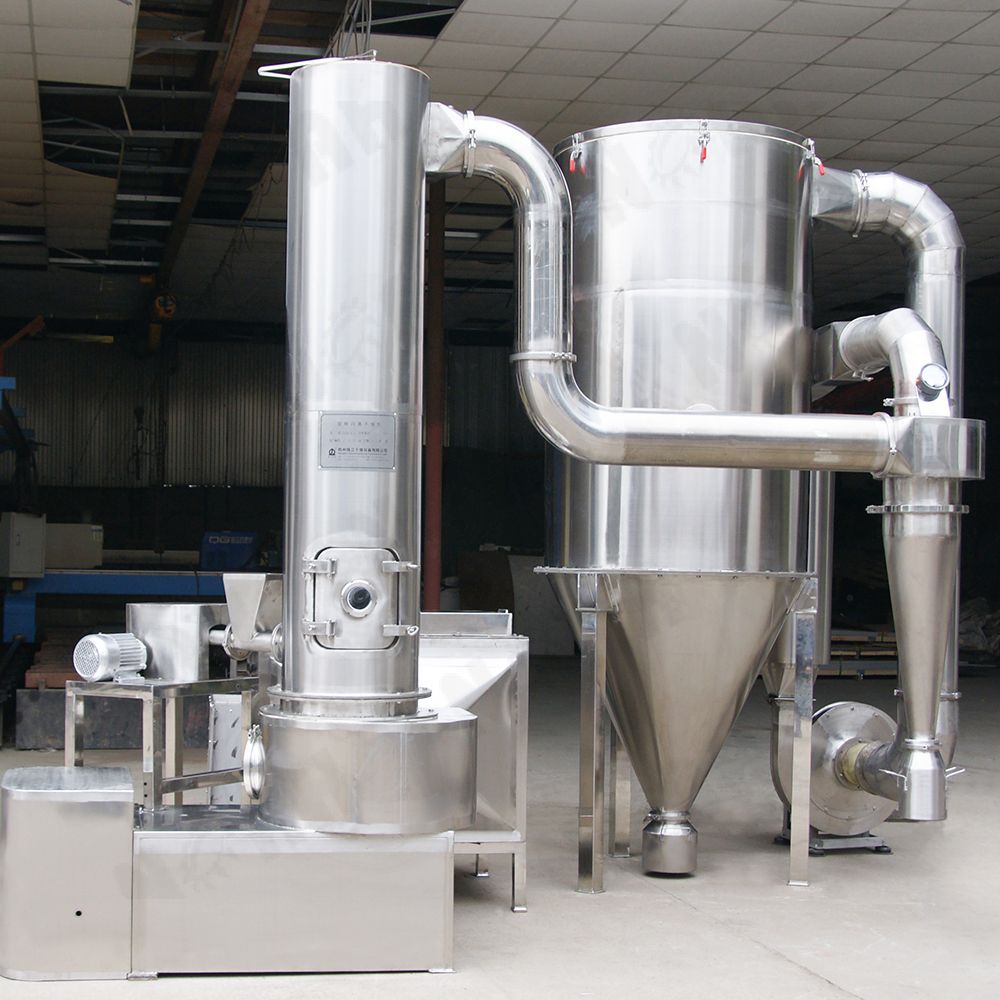

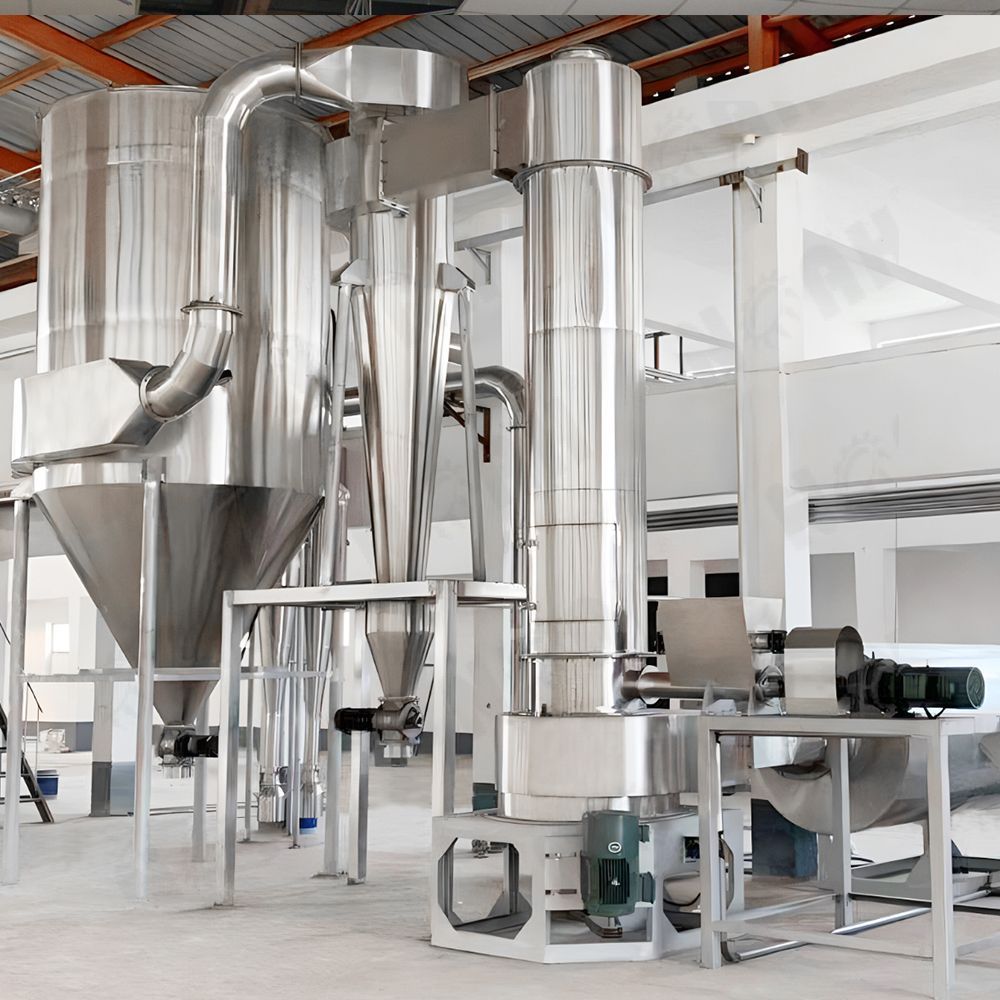

XSG Series High-Speed Rotary Flash Dryer is an advanced system designed for the efficient drying of viscous, cake, and slurry materials. It achieves rapid and uniform drying through a powerful rotating wind field generated by a tangential air inlet and high-speed stirrer. This versatile dryer can handle various types of materials with flexibility in feeding methods and precise control over granule size and moisture content. Its compact design and negative pressure operation make it suitable for diverse industrial environments, significantly reducing energy consumption and improving production efficiency. Built with durable materials and precision engineering, the XSG Series ensures long-term reliability and performance, minimizing downtime. Whether used for fine chemicals, pigments, dyes, or other industrial applications, the XSG Series provides continuous, efficient drying solutions tailored to meet the varied needs of different industries.

Specification

TYPE	XSG-2	XSG-4	XSG-6	XSG-8	XSG-10	XSG-12	XSG-16	XSG-20
Inner diameter of main unit (mm)	200	400	600	800	1000	1200	1600	2000
Air volume (M³/h)	350-500	1150-2000	2450-4500	4450-7550	7000-12500	10000-20000	18000-36000	28200-56500
Evaporated water (Kg/h)	12-17	40-70	80-150	150-250	230-450	300-600	600-1000	1000-1500
Main machine power (KW)	10	20	40	65	85	105	150	230
Upper height limit (m)	4	4.8	5.8	6.5	7.1	7.8	8.8	10.1
Occupied area (m²)	15	20	28	35	40	52	80	150

FAQ - Have any questions?

What is the main working principle of the XSG Series Spin Flash Dryer?

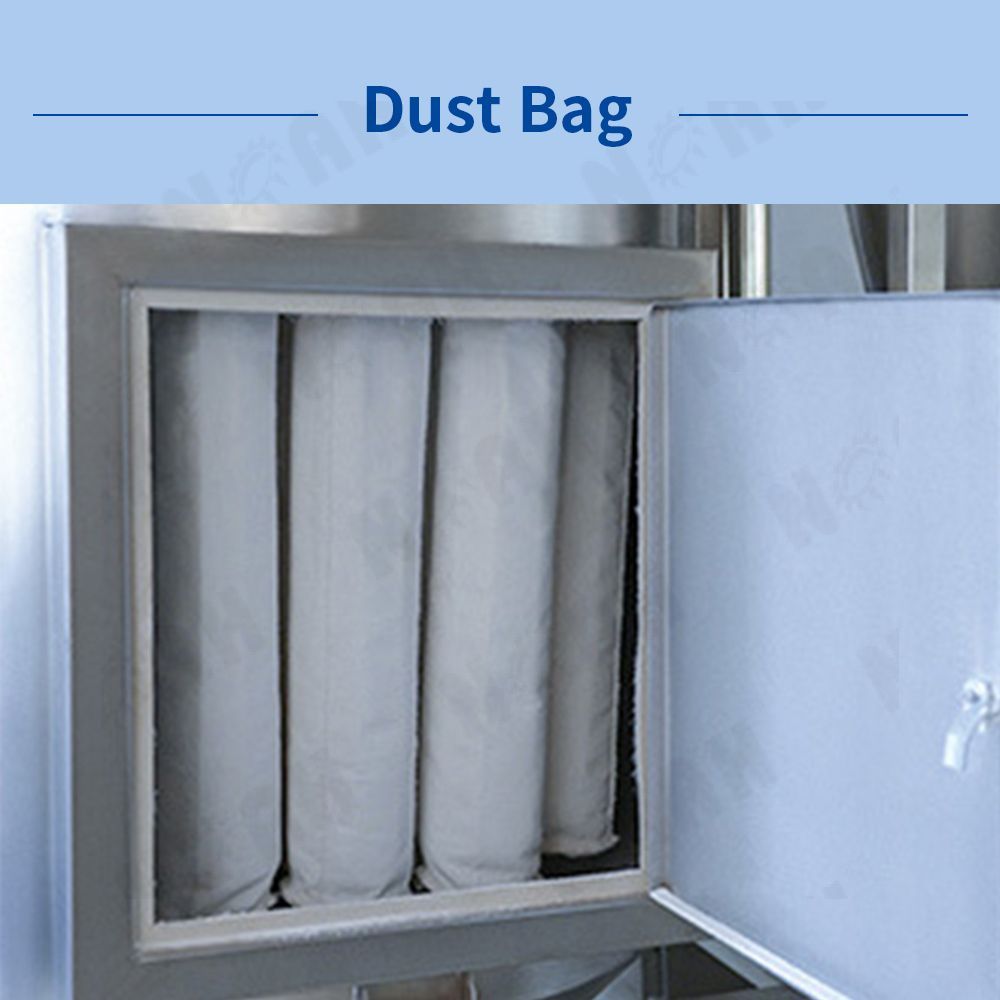

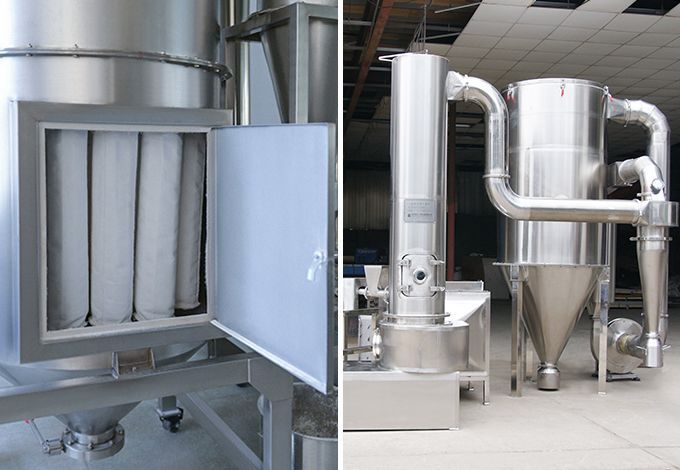

XSG Series Spin Flash Dryer operates by introducing hot air into the drying chamber from the bottom of the dryer's main unit. Material particles flow within the high-efficiency hot airflow in the rotor at the bottom of the conical drying chamber, causing any wet clumps to break down rapidly. Using the heat in the airflow, the material dries during conveyance. The product is separated through a cyclone separator or bag filter. Typically, a cyclone separator is followed by a scrubber or bag filter for final cleanup of exhaust gases to meet current emission requirements.

What are the performance advantages of this dryer?

Compared to other dryers, the XSG Series Spin Flash Dryer offers advantages such as high drying intensity, suitability for heat-sensitive materials, simplified process, and effective control of final moisture content and fineness.

How can the moisture content and fineness of the dried material be controlled?

By adjusting the feed and hot air temperature, in coordination with the classifier, the final moisture content and product particle size can be fully controlled, ensuring uniform moisture content and fineness of the product.

What is the production capacity of this dryer?

The production capacity of the XSG Series Spin Flash Dryer varies based on specific models and configurations, accommodating different production scales.

Is the installation and maintenance of this equipment convenient?

We provide comprehensive installation guidance and technical support to ensure smooth installation and operation of the equipment. Additionally, we offer regular maintenance and repair services to ensure long-term stable operation.

Is this dryer suitable for all types of materials?

XSG Series Spin Flash Dryer is suitable for various materials, including but not limited to those in the chemical, pharmaceutical, food, environmental protection, metallurgical, building materials, and ceramic industries. However, specific materials may require adjustments to equipment parameters or configurations.

Is the operation of this equipment complicated?

We provide detailed operation manuals and training guidance to ensure operators can proficiently master the equipment's operating skills. Additionally, the equipment's control panel is designed to be intuitive and user-friendly, reducing the complexity of operation.

What is the price of this dryer?

The price of the equipment varies based on specific models, configurations, and production capacity. Please contact us for detailed quotation information.

Does this dryer support customization services?

Yes, we offer customization services. Based on customers' specific needs, we can adjust equipment parameters, configurations, and appearances to meet their personalized requirements.

What is the after-sales service like for this equipment?

We provide comprehensive after-sales services, including equipment installation and commissioning, operation training, troubleshooting, and repairs. Additionally, we offer equipment upgrade and retrofitting services to ensure the equipment maintains good operating conditions.
