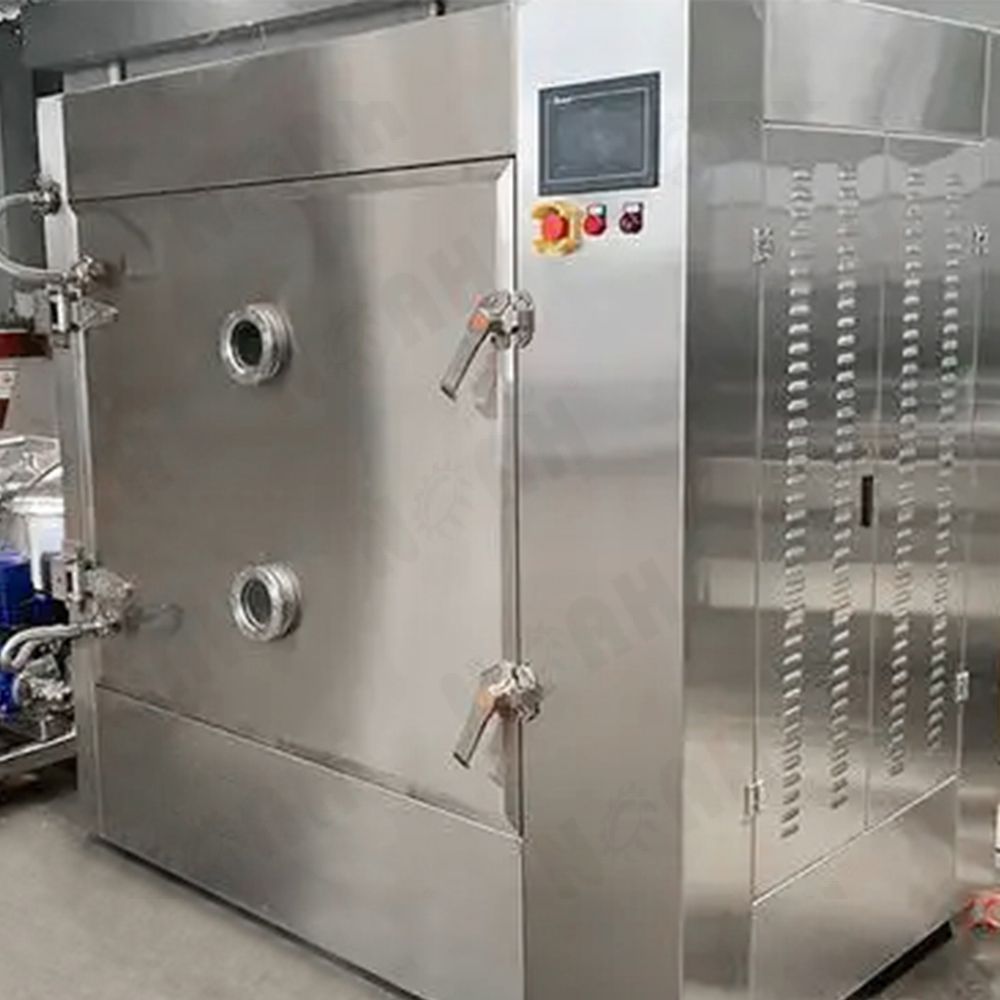

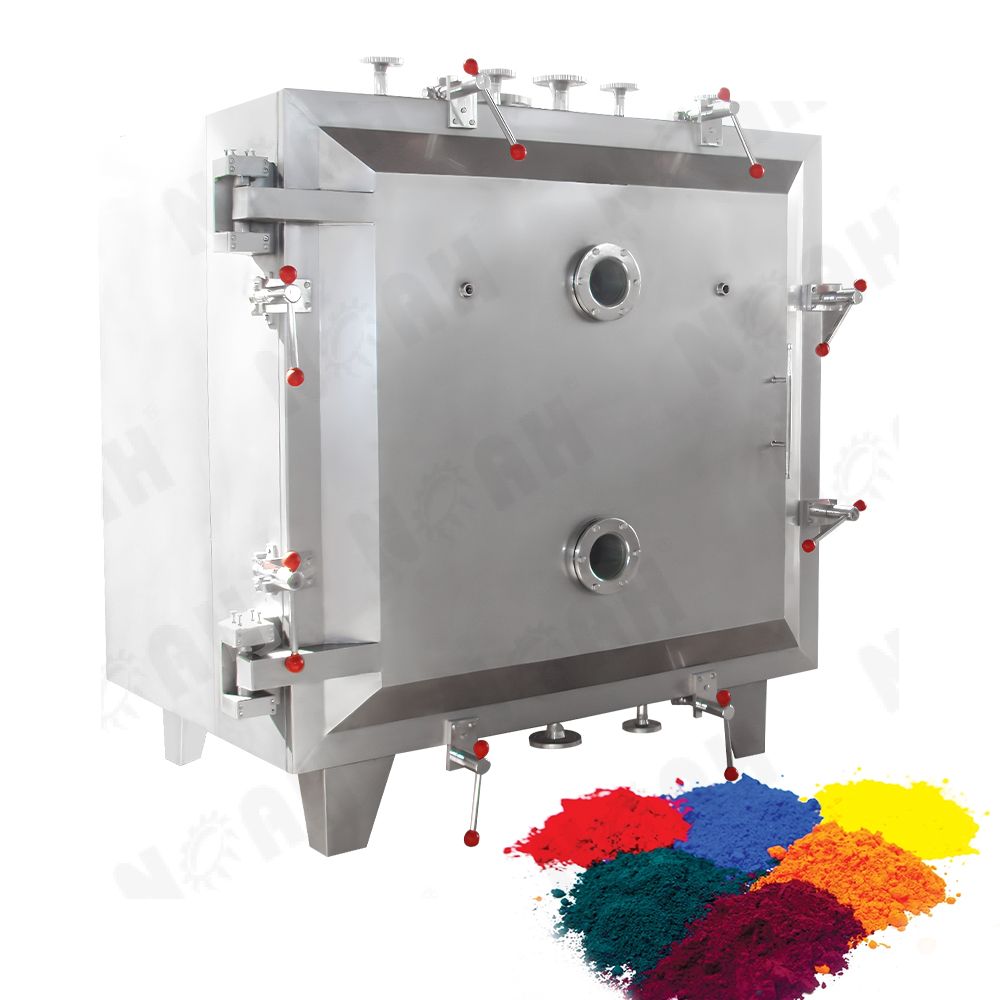

MFG Series Pulse Vacuum Dryer
Efficient, contamination-free drying for high-value materials
MFG Series Pulse Vacuum Dryer offers superior performance in low-temperature drying applications, making it an essential tool for processing heat-sensitive, easy-to-oxidize, and toxic materials.
Product Description
Applications
MFG Series Pulse Vacuum Dryer is particularly suited for industries requiring precise and gentle drying processes, including:
Chemical Industry: Ideal for drying heat-sensitive, easy-to-oxidize, and toxic materials.
Food Processing: Suitable for drying powders, small granules, and slurry materials while maintaining product quality and hygiene.
Electronics Industry: Essential for processing materials that are sensitive to high temperatures and require precise moisture control.
Features
Advanced Pulse Vacuum Technology: Enhances the drying process by lowering the boiling point of water and other solvents, facilitating evaporation at lower temperatures.
Versatile Heat Medium Options: Can utilize steam, hot water, or thermal oil, providing flexibility to meet different temperature requirements.
Uniform Drying and High Efficiency: Multiple exhaust vents ensure prompt removal of evaporated moisture, promoting uniform drying and preventing hot spots.
GMP Compliant Design: Fully welded drying chamber without dead corners, adhering to GMP standards for a hygienic and contamination-free environment.
Energy-Efficient Operation: Operates at lower temperatures due to vacuum conditions, achieving high evaporation rates with reduced energy consumption.
Modular Tray System: Configurable with 4 to 96 trays, allowing adaptation to various batch sizes and material types.
Moisture Recovery System: Integrated vacuum pump, tubular condenser, and buffer tank efficiently recover evaporated moisture.
MFG Series Pulse Vacuum Dryer offers superior performance in low-temperature drying applications, making it an essential tool for processing heat-sensitive, easy-to-oxidize, and toxic materials. Utilizing advanced pulse vacuum technology, this dryer significantly lowers the boiling point of moisture, enabling effective drying at temperatures well below conventional methods.
Its versatile heat medium options—such as steam, hot water, or thermal oil—allow it to cater to specific temperature requirements across diverse materials. The multiple exhaust vents and pulse vacuum operation ensure uniform drying, preventing hot spots and enhancing productivity. The fully welded drying chamber adheres to GMP standards, ensuring a hygienic and contamination-free environment suitable for sensitive materials.
Designed with energy efficiency in mind, the MFG Series operates at lower temperatures, reducing energy consumption and contributing to cost savings and environmental sustainability. The modular tray system provides flexibility to handle various batch sizes and material types, from powders to slurry materials. Additionally, the integrated moisture recovery system makes it ideal for applications where moisture recovery is necessary. Widely used in the chemical, food, and electronics industries, the MFG Series Pulse Vacuum Dryer delivers consistent quality, increased productivity, and sustainable operation.
Specification
| TYPE | MFG-32 | MFG-48 | MFG-64 | MFG-96 | |
| Number of Board Layers | - | 8 | 12 | 8 | 12 |
| Number of Drying Carts | - | 1 | 1 | 2 | 2 |
| Number of Drying Trays | - | 32 | 48 | 64 | 96 |
| Drying temperature range | ℃ | 50-90 | |||
| Allowable Pressure of the Plate | bar | <4 | |||
| Drying Tray Size | mm | 585*400*50 | |||
| Heating Method | - | Steam, electricity, hot water | |||
| Plate Area | m² | 8 | 12 | 16 | 24 |
| Overall Dimensions | mm | 2100*1550*2200 | 2100*1550*2640 | 2520*2480*2200 | 2520*2480*2640 |
| Equipment Weight | kg | 2800 | 3200 | 5200 | 6000 |
FAQ - Have any questions?
What are the main functions of the MFG Series Pulse Vacuum Dryer?
MFG Series Pulse Vacuum Dryer utilizes pulse vacuum technology to quickly and effectively dry materials in a low-temperature and low-pressure environment, while preserving their original quality and nutrients.
Is the operation of this dryer complicated?
The operation of the MFG Series Pulse Vacuum Dryer is relatively simple. The control panel with buttons and a display screen allows users to easily select and adjust drying programs. Additionally, the equipment comes with a detailed operation manual to help users quickly get started.
How energy-efficient is this dryer?
MFG Series Pulse Vacuum Dryer is designed to be energy-efficient, ensuring effective drying while reducing energy consumption. Specific energy consumption depends on factors such as material type, drying temperature, and time.
How should this dryer be maintained?
Maintaining the MFG Series Pulse Vacuum Dryer involves regularly cleaning the internal dust and residues, inspecting and replacing worn parts, and keeping the equipment clean and dry. Additionally, the sensors and control systems should be regularly calibrated to ensure accuracy.
What should I do if the equipment malfunctions during operation?
If the MFG Series Pulse Vacuum Dryer malfunctions during operation, users should first refer to the troubleshooting manual provided with the equipment for initial diagnosis. If the issue cannot be resolved, users can contact the equipment's after-sales service team for professional technical support.
Does this dryer support customized drying programs?
Yes, the MFG Series Pulse Vacuum Dryer allows users to customize drying programs based on material characteristics and requirements, including setting drying temperature, time, pressure, and other parameters.
How efficient is the drying process of this dryer?
The drying efficiency of the MFG Series Pulse Vacuum Dryer is very high, capable of completing the drying of a large amount of material in a short period. Specific efficiency depends on factors such as material type, moisture content, and drying conditions.
Is this dryer suitable for all types of materials?
MFG Series Pulse Vacuum Dryer is suitable for various types of materials, including food, pharmaceuticals, and chemical raw materials. However, for certain special materials, special pretreatment or adjustment of drying parameters may be required.
How much space does this dryer occupy?
The footprint of the MFG Series Pulse Vacuum Dryer depends on the specific model and configuration. Users can select the appropriate equipment model based on their production needs and site conditions.
Does purchasing this dryer include training services?
Yes, upon purchasing the MFG Series Pulse Vacuum Dryer, we provide users with professional operation and maintenance training services to help them better master the use and maintenance skills of the equipment.
