wfg-series-horizontal-boiling-dryer

Product Description

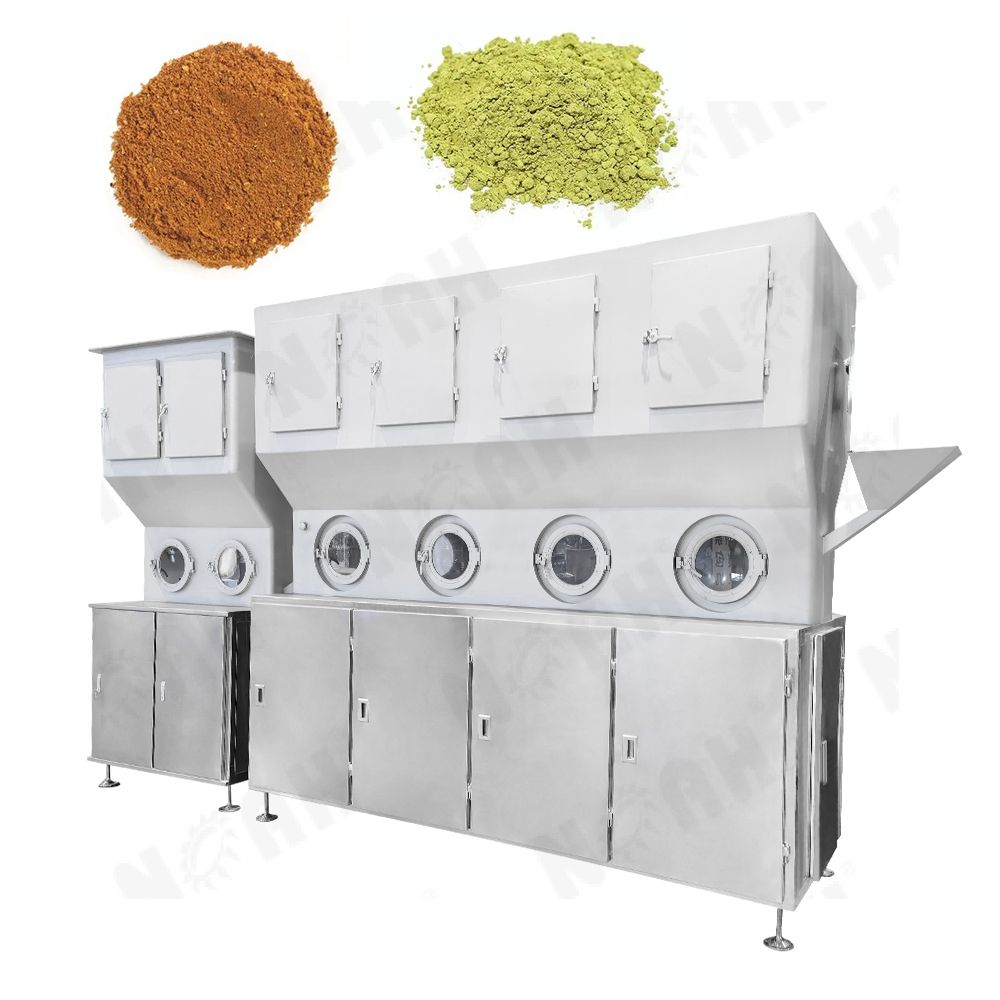

WFG Horizontal Boiling Dryer is an advanced drying system designed to handle a wide range of granular and powdered materials efficiently. It integrates essential components into one comprehensive system, offering versatile heating options and flexible dust removal methods. Utilizing fluidization technology, this dryer ensures intimate contact between heated air and solid materials, significantly intensifying heat and mass transfer processes. The system operates under negative pressure to minimize dust emissions and improve workplace safety. With adaptive feeding solutions and automated production capabilities, the WFG Fluidized Bed Dryer supports a broad spectrum of industries and applications, delivering rapid and efficient drying through its innovative design and technology. Its robust construction and customizable design ensure reliable operation over time, supporting consistent product quality and reducing downtime.

Specification

TYPE		WFG 0.25-1	WFG 0.25-2	WFG 0.25-3	WFG 0.25-6	WFG 0.3-4	WFG 0.3-6	WFG 0.3-8	WFG 0.3-10	WFG 0.4-4
Bed Area	m²	0.25	0.5	0.75	1.5	1.2	1.8	2.4	3	1.6
Drying Capacity	kg h2o/h	10-15	20-25	30-45	52-75	42-60	63-90	84-120	105-150	56-80
Fan Power	kw	5.5	7.5	15	22	18.5	30	37	48	30
Inlet Air Temperature	℃	120-140
Material Temperature	℃	40-60
Overall Dimensions	m	10.63.35	20.63.35	40.63.35	60.63.35	40.73.4	60.73.4	80.73.4	100.73.4	413.58
Occupied Area	m²	18	25	35	40	38	45	56	70	18

FAQ - Have any questions?

What is the working principle of the WFG Series Horizontal Boiling Dryer?

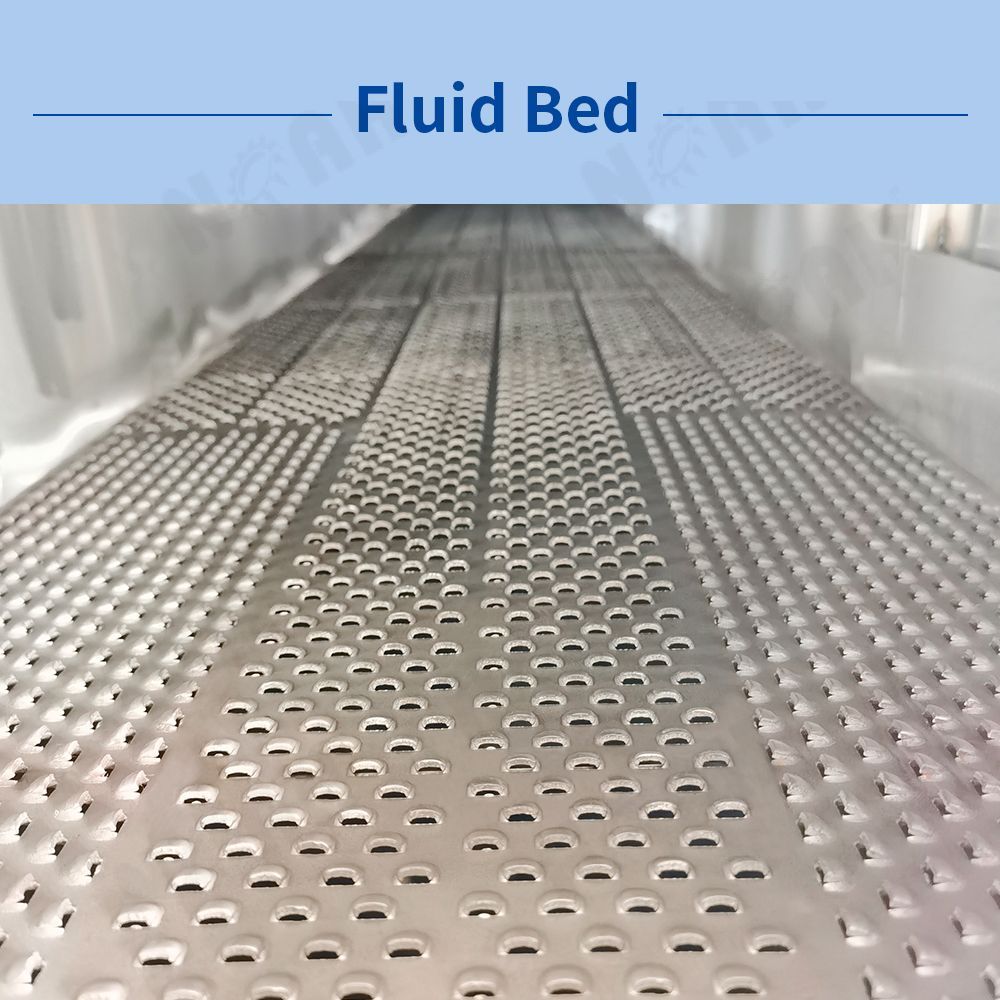

WFG Series Horizontal Boiling Dryer utilizes a horizontal fluidized bed to dry materials by passing heated air through them, creating a boiling effect that enhances heat and mass transfer for rapid drying.

What materials can be dried using the WFG Series Horizontal Boiling Dryer?

This dryer is suitable for a wide range of materials, including granules, powders, and other bulk solids. It can accommodate materials with different physical properties and moisture contents.

How efficient is the WFG Series Horizontal Boiling Dryer in terms of energy consumption?

The dryer is designed for energy efficiency, utilizing efficient heating systems and minimizing heat loss. It consumes less energy compared to traditional drying methods.

What are the dust removal options available with the WFG Series Horizontal Boiling Dryer?

The dryer can be equipped with cyclone separators and bag dust collectors, depending on the material being dried and the customer's specific requirements for dust removal.

Is the WFG Series Horizontal Boiling Dryer suitable for continuous or batch drying processes?

The dryer can be configured for both continuous and batch drying processes, offering flexibility to meet different production needs.

What are the control features of the WFG Series Horizontal Boiling Dryer?

The dryer is equipped with an advanced control system that allows for precise temperature and airflow control, ensuring consistent drying results.

Can the WFG Series Horizontal Boiling Dryer handle materials with high moisture content?

Yes, the dryer is capable of handling materials with high moisture content, effectively reducing moisture levels to the desired specification.

What is the capacity range of the WFG Series Horizontal Boiling Dryer?

The dryer is available in various sizes and capacities, ranging from small-scale laboratory models to large-scale industrial units, to suit different production volumes.

What safety features are included in the WFG Series Horizontal Boiling Dryer?

The dryer incorporates various safety features, such as temperature sensors, overheat protection, and emergency stop buttons, to ensure safe operation and protect personnel and equipment.
