Drying Machine

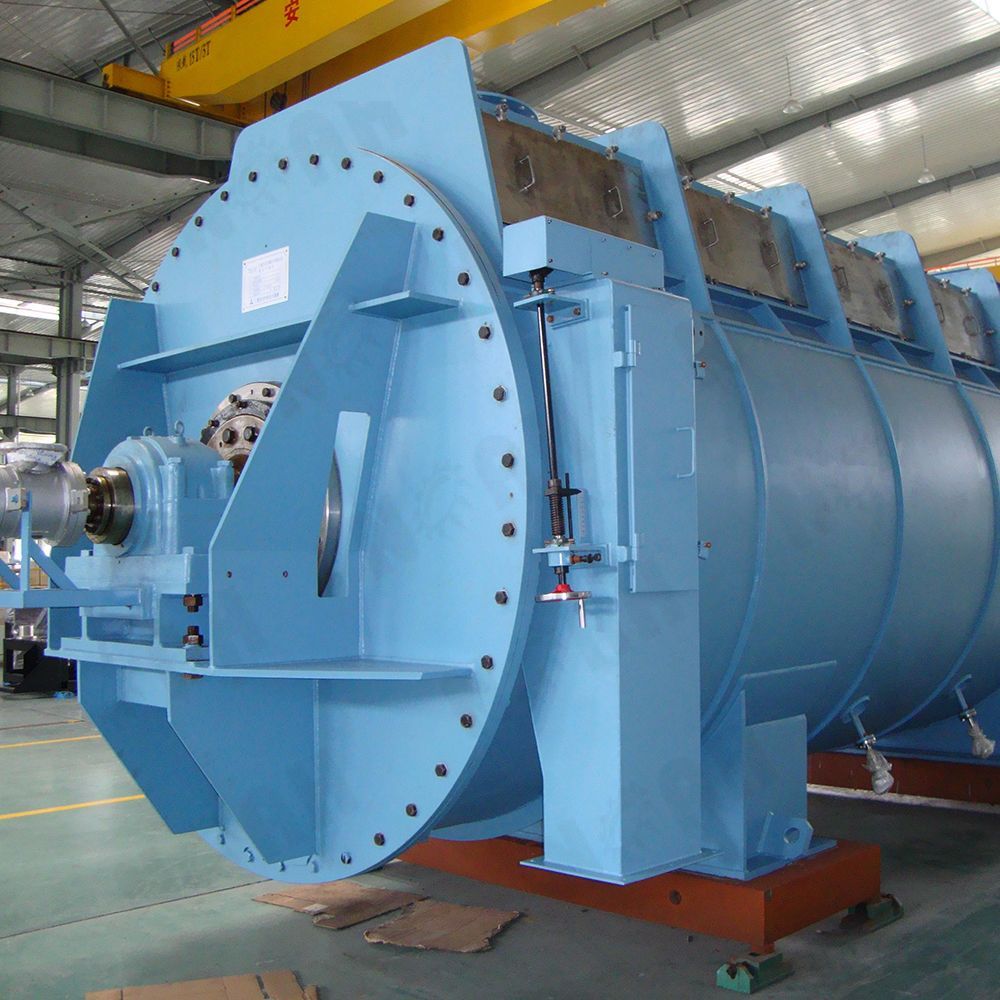

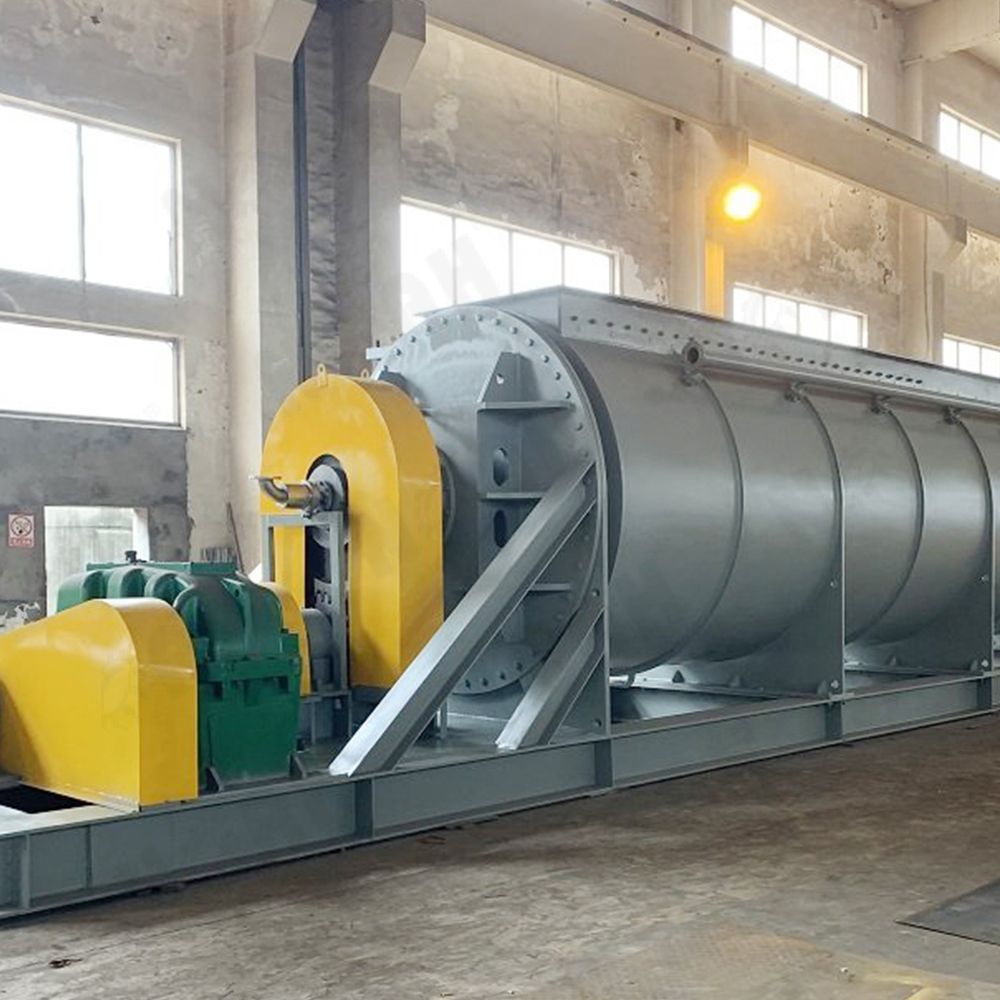

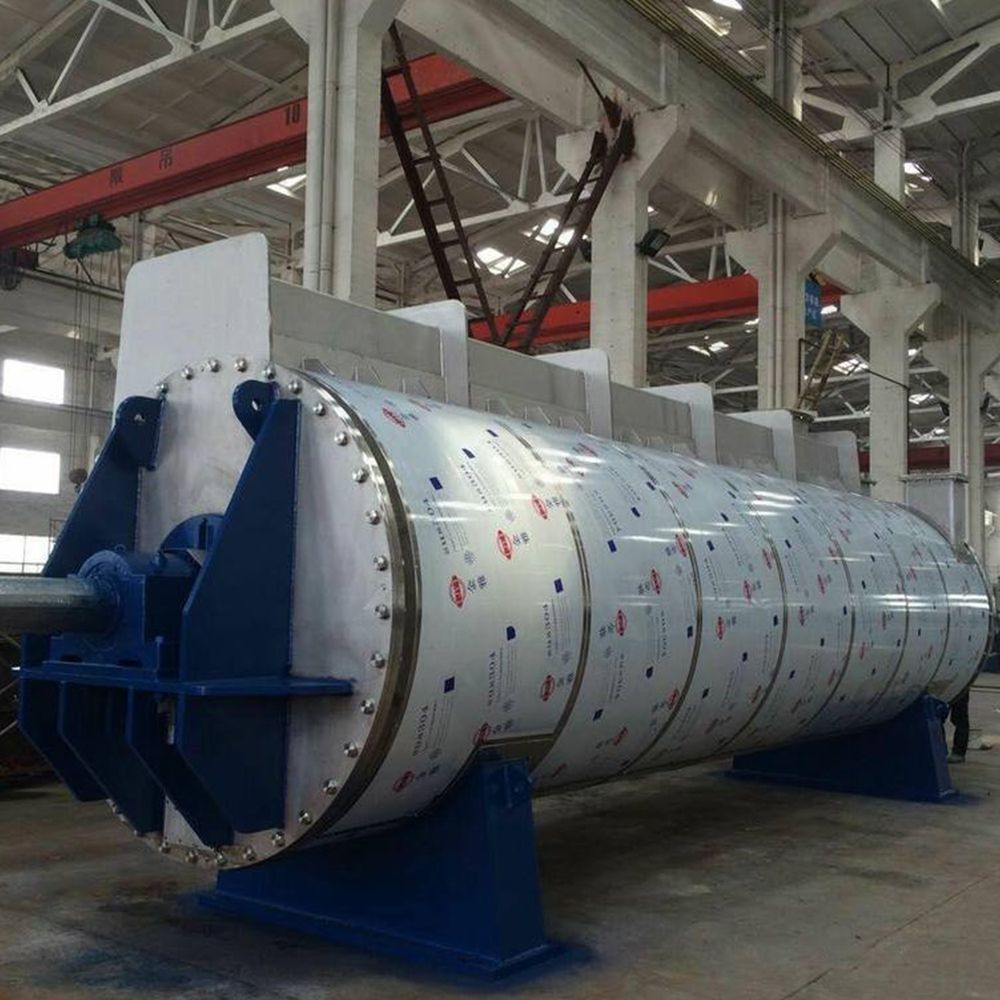

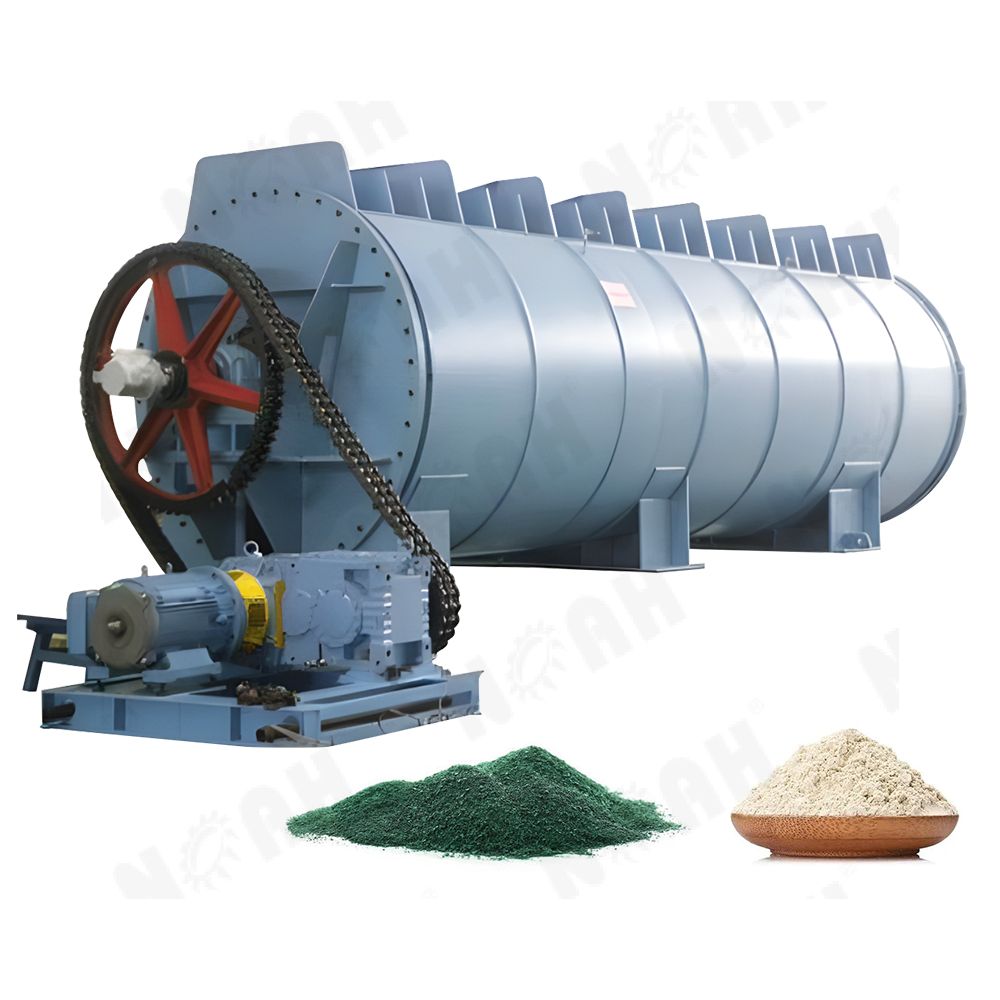

YFG Series Horizontal Disk Dryer

Efficient, contamination-free drying for high-value materials

YFG Series Horizontal Disk Dryer

YFG Disc Dryer stands out with its innovative and efficient design, offering superior performance across various industrial applications.

Product Description

Conical Screw Vacuum Dryer

Applications

YFG Disc Dryer stands out for its innovative and efficient design, making it ideal for various industrial drying needs. It is particularly suited for:

Chemical Industry: Processing a wide range of chemicals and catalysts.

Food Processing: Suitable for drying granular, powdery, or sticky materials such as sugar and milk powder.

Pharmaceutical Industry: Ideal for drying intermediates and finished products, ensuring consistency and purity.

Environmental Engineering: Particularly effective in sludge drying, reducing waste volume and enhancing resource recovery.


Conical Screw Vacuum Dryer

Features

Compact and Efficient Design: Horizontal layout minimizes space occupancy and maximizes heat transfer area per unit volume, leading to faster drying speeds.

Uniform Drying and Particle Size: Constant-speed rotation ensures even stirring and drying force, resulting in uniformly sized product particles.

Adjustable Drying Effect: Tailor the speed, process type (intermittent or continuous), and drying time to achieve various final moisture contents.

High Thermal Efficiency: Double-sided heat transfer and effective stirring contribute to high thermal efficiency, reducing energy consumption.

Low Wear and Regular Particle Movement: Regular movement of dried particles minimizes wear on the device, ensuring longevity.

Durable Heating Discs: Pressed as a whole with minimal welds, enhancing corrosion and wear resistance.

Thin Layer Heat Exchange: Two-axis inlay method allows for the formation of a thin material layer, optimizing heat exchange efficiency.

Automatic Cleaning Function: Relative rotation of two axes and scraper action keep the heat exchange surface clean, ensuring stable performance.

Versatile Material Handling: Capable of processing a wide range of materials, from granular and powdery to sticky substances, with adjustable moisture content.

Low Energy Consumption: Low-speed main shaft and efficient heat conduction reduce power requirements, making it an energy-saving solution.


YFG Disc Dryer stands out with its innovative and efficient design, offering superior performance across various industrial applications. Its compact and efficient horizontal layout minimizes space occupancy while maximizing heat transfer area per unit volume, resulting in faster drying speeds and reduced equipment size. The constant-speed rotation of the main shaft ensures even stirring and drying force, producing uniformly sized product particles.

This dryer offers high thermal efficiency through double-sided heat transfer of each disc and effective stirring and mixing actions, significantly reducing energy consumption. The regular movement of dried particles minimizes wear on the device, ensuring long-term durability and suitability for handling sludge materials. Durable heating discs, pressed as a whole with minimal welds, enhance corrosion and wear resistance, reducing running resistance and equipment vibration.

The two-axis inlay method allows for the formation of a thin material layer, optimizing heat exchange efficiency. An automatic cleaning function keeps the heat exchange surface clean by utilizing relative rotation of the two axes and scraper action, ensuring stable heat exchange performance. The YFG Disc Dryer can process a wide range of materials, from granular and powdery to sticky substances, with adjustable moisture content, and can operate continuously or intermittently.

With low-speed main shaft and efficient heat conduction, this dryer reduces power requirements, making it an energy-saving solution. The compact and robust design, combined with high-quality materials and wear-resistant components, ensures long-term durability and minimal maintenance requirements. Scalability is also a key feature, allowing for the creation of large-scale paddle dryers with areas of ≥400m², accommodating larger production volumes and increasing throughput. Incorporating advanced technologies and design improvements ensures superior performance and reliability, making the YFG Disc Dryer an excellent choice for diverse industrial drying needs.


Specification

TYPEYFG-60DYFG-85DYFG-130DYFG-170DYFG-210DYFG-240DYFG-280DYFG-370D
Power ()kw1522454555757590
Heat Transfer Area78107150190240270329411
Full Capacity4.56911.51517.52026
Overall Dimensionsmm5200*1900*27006400*1900*27006200*2500*30007500*2500*30009000*2500*30008600*2800*330010100*2800*330010100*3000*3550



FAQ - Have any questions?

What are the primary application areas of the YFG Series Horizontal Disk Dryer?

YFG Series Horizontal Disk Dryer is widely used in the chemical, pharmaceutical, food, and light industry sectors, particularly suitable for drying granular, tablet, strip, and other forms of materials.

How efficient is this drying machine?

YFG Series Horizontal Disk Dryer employs an efficient heating system and uniform drying design, significantly enhancing drying efficiency,shorten drying time, while ensuring drying quality.

How can I adjust the drying time and temperature?

YFG Series Horizontal Disk Dryer is equipped with an advanced control system that allows users to easily adjust drying time and temperature according to material characteristics and drying requirements via the control panel.

How do I prevent material sticking or caking during the drying process?

The dryer is designed with a unique stirring and turning mechanism that ensures even heat distribution across the material, effectively preventing sticking or caking.

Is the installation and maintenance of this equipment complicated?

The installation of the YFG Series Horizontal Disk Dryer is relatively straightforward, following the installation guide provided by the manufacturer. Maintenance involves regular cleaning of filters, checking the status of sensors and heating elements, and keeping the equipment clean to ensure long-term stable operation.

Is the equipment noisy during operation?

The YFG Series Horizontal Disk Dryer features advanced noise reduction design, effectively lowering operational noise and ensuring a quiet and comfortable working environment.

What is the energy consumption like for this dryer?

The dryer adopts an efficient energy management system, reducing energy consumption and improving energy utilization. Users can further conserve energy by adjusting drying parameters based on actual needs.

Does the equipment support customized services?

Yes, the YFG Series Horizontal Disk Dryer offers customized services. Users can tailor the dryer model and configuration according to actual needs and material characteristics.

How is the dried material collected?

YFG Series Horizontal Disk Dryer is designed with a convenient material collection system. Users can choose suitable collection methods based on needs, such as automatic discharging or manual discharging.

How can I obtain after-sales service if the equipment malfunctions?

Users can promptly receive professional technical support and repair services through the manufacturer's after-sales service hotline or online service platform. The manufacturer promises to respond to customer needs within the shortest time possible to ensure the equipment resumes normal operation as soon as possible.
