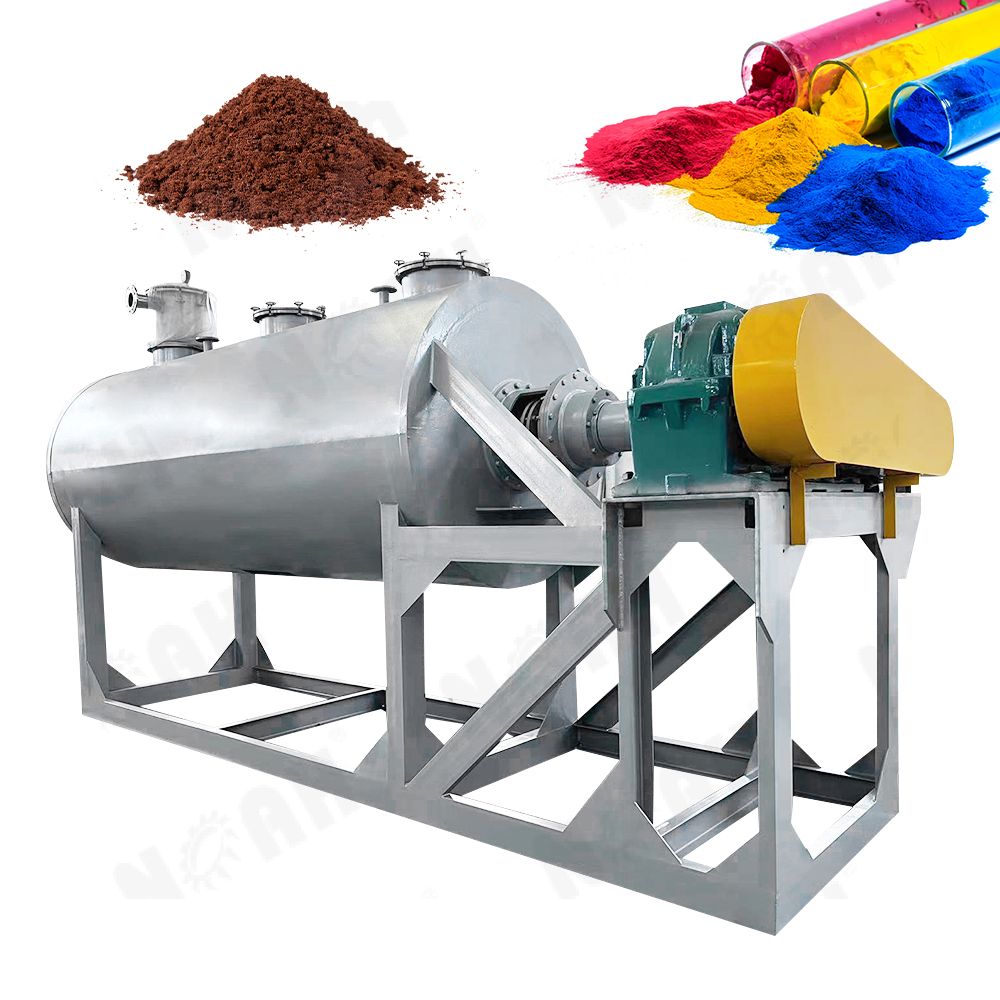

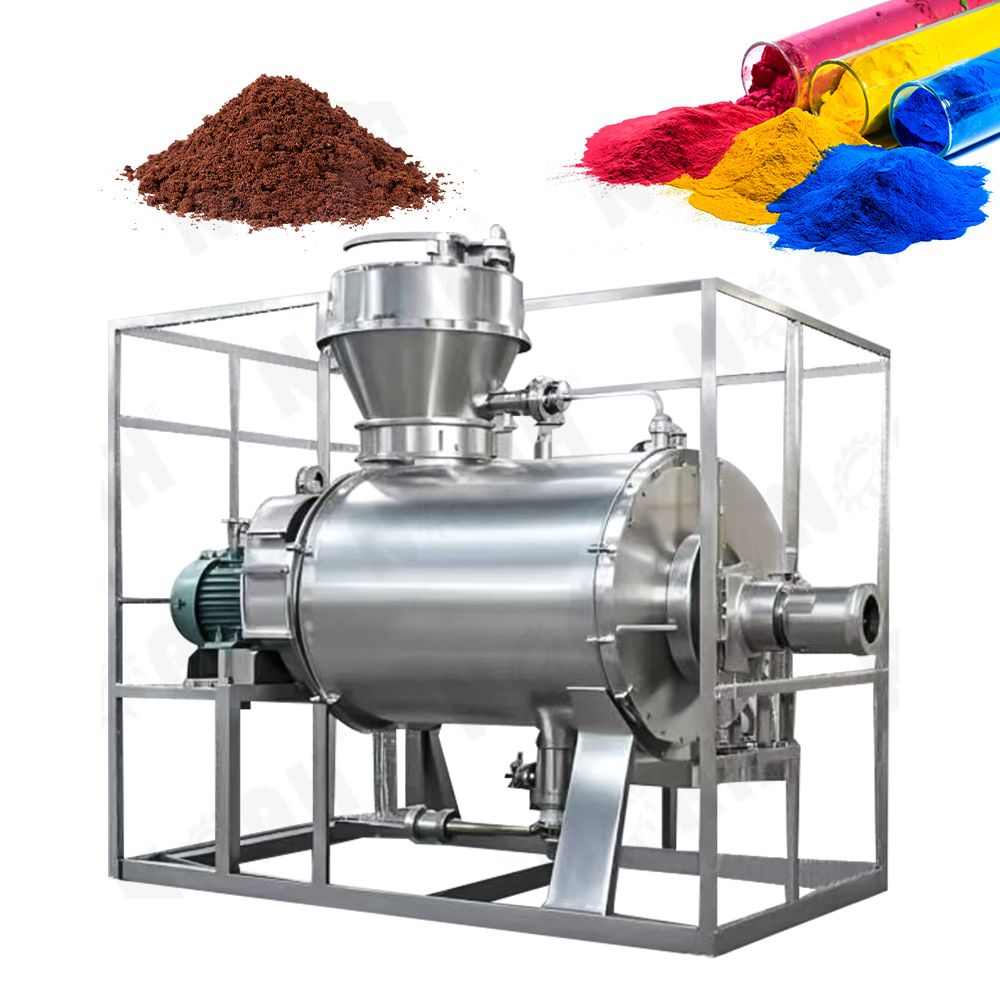

ZBG Series Vacuum Rake Dryer
Efficient, contamination-free drying for high-value materials
ZBG Vacuum Rake Dryer stands out with its advanced design and robust features, offering exceptional performance across various drying needs.
Product Description
Applications
ZBG Vacuum Rake Dryer is ideal for industries requiring efficient and versatile drying solutions, including:
Food Processing: Suitable for drying pulpy, paste-like mixtures, and powders.
Chemical Industry: Perfect for materials prone to oxidation, explosion, or those with irritative or toxic properties.
Pharmaceuticals: Designed for low-temperature drying of heat-sensitive substances.
Features
Horizontal Batch-Type System: Provides a flexible and controlled drying environment tailored for batch processing.

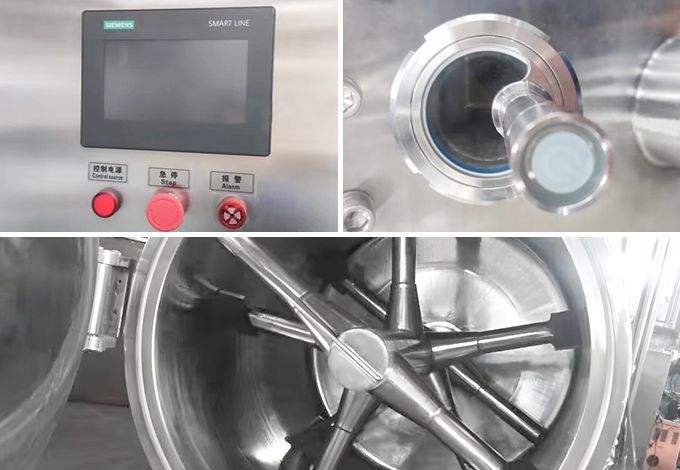

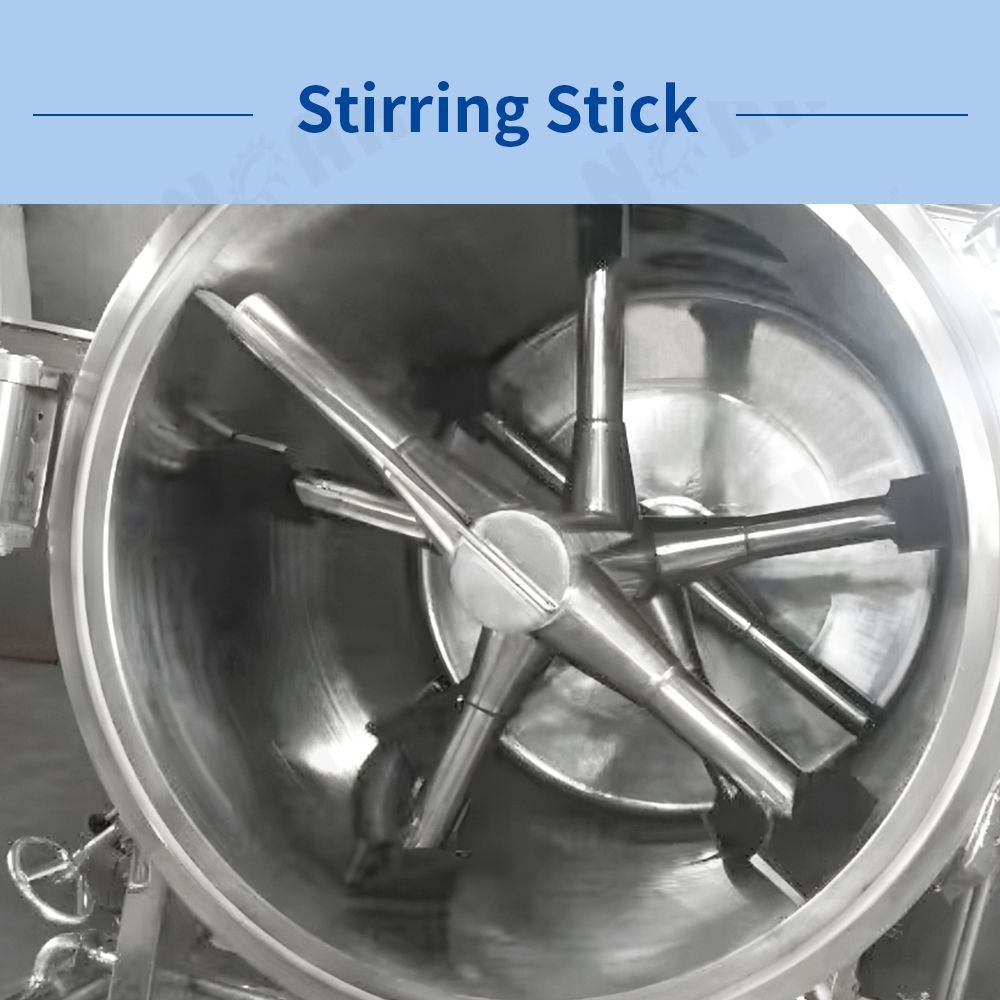

Squeegee Stirrer Mechanism: Ensures effective scraping of material from hot surfaces, maintaining continuous circulation within the container.
Large Heat Transfer Area: Maximizes heat contact with raw materials for high thermal efficiency and rapid moisture removal.
Uniform Heating: Guarantees consistent material circulation and uniform heating throughout the drying cylinder.
Vacuum Extraction: Efficiently removes evaporated moisture, creating an optimal drying atmosphere.
Solvent Recovery Capability: Supports materials requiring solvent recovery, adding value to the drying process.
ZBG Vacuum Rake Dryer stands out with its advanced design and robust features, offering exceptional performance across various drying needs. Its horizontal batch-type system provides a flexible and controlled environment, while the unique squeegee stirrer mechanism ensures effective scraping of material from hot surfaces, enhancing drying efficiency. With a large heat transfer area and vacuum extraction system, it rapidly removes moisture from raw materials, ensuring timely and efficient drying. The dryer's ability to handle a wide range of materials—from pulpy and paste-like substances to powders—makes it highly versatile. Additionally, its design supports low-temperature drying, making it perfect for heat-sensitive, oxidation-prone, and explosive materials. ZBG Vacuum Rake Dryer not only guarantees uniform drying results and high product quality but also offers solvent recovery efficiency, adding an extra layer of cost-effectiveness and operational reliability.
Specification
| TYPE | ZBG-500 | ZBG-750 | ZBG-1000 | ZBG-1500 | ZBG-2000 | ZBG-3000 | ZBG-5000 | |
| Working Volume | L | 300 | 450 | 600 | 900 | 1200 | 1800 | 3000 |
| Inner cylinder size | m² | φ600*1500 | φ800*1500 | φ800*2000 | φ1000*2000 | φ1000*2600 | φ1200*2600 | φ1400*3400 |
| Stirring Speed | rpm | 5-25 | 5-12 | 5 | ||||
| Power | kw | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 | 22 |
| Designed Pressure in Interlayer | mpa | ≤0.3 | ||||||
| Pressure In Cylinder | mpa | -0.09~-0.096 | ||||||
